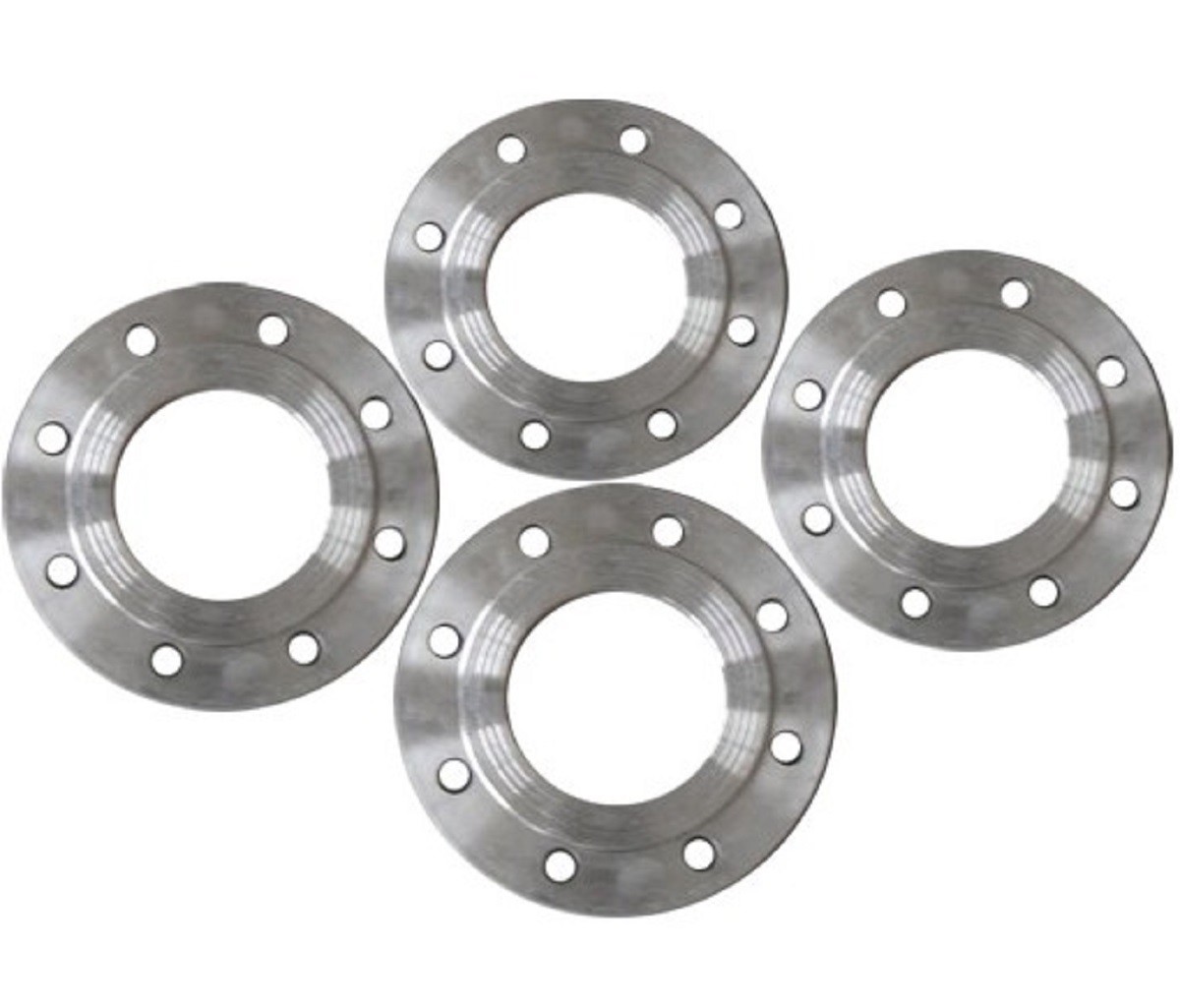

ASME B16.47 20" SCHXXS Forged Steel Flanges 15mm - 600mm For Flanged Outlets

  • ASME B16.47 20" SCHXXS Forged Steel Flanges 15mm - 600mm For Flanged Outlets
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 WP316
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PC/MONTH
Product Details
Product Name Slip-On Flanges Type StainlessvSteel Flange
Pressure 900LB Grade ASTM A403 WP316
Standard Or Nonstandard Standard Size 20''
Standard ASME/ANSI B16.47 Flange Face FF, RF Etc
Highlight

forgings flanges and fittings

,

butt weld flanges

,

forged fittings and flanges
Leave a Message
Product Description

ASME B16.47 20'' SCHXXS 900# Flange Stainless Steel Slip-On Flanges A403 WP316



Slip-On Flange refers to a kind of flange connected with vessel or pipe by fillet weld. Belongs to arbitrary flange. According to the integral degree of connection between flange ring and straight pipe segment, check the integral flange or loose flange respectively. Flange ring with neck and without neck two kinds. Compared with neck butt welding flange, plain welding flange has simple structure and less material, but its rigidity and sealing property are not as good as neck butt welding flange. Flat welding flange is widely used in the connection of medium and low pressure vessels and pipelines.



A403 WP316 Stainless Steel Slip-On FLANGE

1. Size: 15mm-600mm

2. Type: Stainless Steel

3. Standard: ANSI B16.47, DIN, JIS, GOST, BS, En and so on

4. Material: A403V WP304,316,304L,316L AND ETC.


5. Class: 150#-2500#

6. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

7. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform



Product Description


All our products come in a variety of classes and material grade for any application.
This catalogue is specific for flanged outlets.
Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class
150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all
according to Shell Standard Drawing S38.090-C and can be installed on header pipes
from DN 3/4" up to 36".






Type WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture
Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Brand TOBO
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Advantages

1. Abundant stock and prompt delivery

2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.

4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)




Why Choosing Metal Industrial:

  • Sufficient Forging, Heating, Machining Equipment

  • In-house Inspection Instruments for Quality Controlling

  • Competitive Price & High Quality Assurance

  • Fast, Effective and Efficient Services

  • Directly supplier of Metallurgical Equipment

  • Experienced Professinonals on Communications


Our flanged outlets are flanged branch connection featuring:
  • Reduced installation and manufacturing cost
  • Longer life under cyclic fatigue loading
  • Butt-weld installation in header pipe
  • Shape in compliance with Shell Standard Drawing S38.090-C
  • Flange dimension according to ASME B16.5


Packing&Delivery

  • Packing Details :In wooden case, pallets or as per customers’ requirement

  • Delivery Details : 7-15 days after the PO
