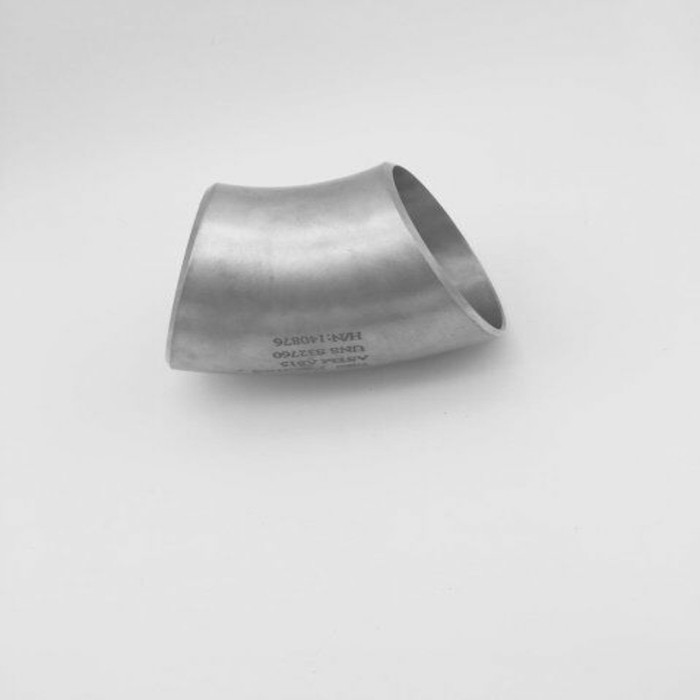

ASME 16.25 12" Butt Weld Fittings Stainless Steel WPS33228 45 LR Elbow

 ASME 16.25 12'' Stainless Steel WPS33228 45 LR Elbow ButWeld Fittings 1.5D SCH80

Production Description

Buttweld Fittings
We are engaged in offering wide range of Buttweld Fittings such as Bend and Buttweld Elbows, A403 Elbows, 304L Elbows, Steel Buttweld Fittings, Buttweld Equal Tee, Reducing Tee, Long and Short Stubend and Swage Nipple and Barrel Nipple. These are available in different specifications and grades to meet the requirements of engineering & construction, oil & gas, aircraft & aerospace and chemical industries. Our range is known for high tensile strength, dimensional accuracy and excellent finish.
Elbows
We offer Bend and Elbow in stainless steel, carbon steel and alloy steel material. These fittings are also available in monel, nickle, inconel, hastalloy, copper, brass, titanium material to meet the requirements of clients. Our range is designed in line with international quality standard and is widely used in different applications across industries.
Form : Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Size : 1/8" NB to 48" NB (Seamless & Welded)
Wall thickness : Sch.5S to Sch: XXS.
Grades offered :-
Stainless Steel : ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel : ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel : ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

Elbows
We offer Bend and Elbow in stainless steel, carbon steel and nickel alloy steel material.
These fittings are also available in monel, nickle, inconel, hastalloy, copper, brass, titanium material to meet the requirements of clients.
Our range is designed in line with international quality standard and is widely used in different applications across industries.
Form : Elbows in long & short radius in 45 deg, 90 deg, 180 deg

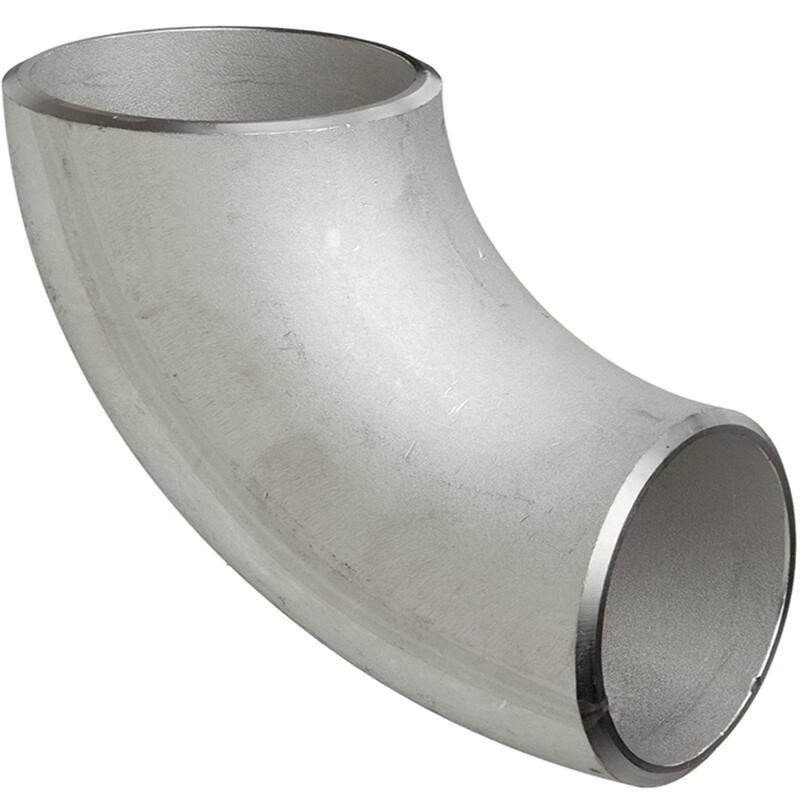

Buttweld Elbow Fitting

The Buttweld Elbow Fitting is a pipe fitting installed between two lengths of pipe or tube allowing a change of direction,
usually 180°, 90° or 45°. The ends are machined for Butt Welding when the two ends differ in size, it is called a Reducing or Reducer Elbow.
Most elbows are available in short radius or long radius of types. The short radius elbows have a center to end distance equal to the NPS in inches, while the long radius is 1.5 times the NPS in inches.


Stainless steel Butt Weld Fittings
Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"/ASTM A420

Grades Available :
Stainless Steel : ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel : ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70

Type:
l Elbows in long (LR) & short radius (SR) in 45 deg, 90 deg, 180 deg, R=3D, 5D, 6D, 8D, 10D & 20D.
l Reducer: Eccentric & concentric
l Caps & crosses.
l Tee.: EQUAL TEE, REDUCING TEE, BARRED TEE
l Long & short stub end.
l SWAGE NIPPLESCAPS: CONCENTRIC AND ECCENTRIC SWAGE NIPPLES
l PIPE NIPPLES
l INDUCTION BENDS

Stainless steel Butt Weld Fittings
Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"/ASTM A420
Grade: WP304, ,304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904, 904L, 409, 410, 430, 440C
