Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5

  • Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5
  • Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A182 F310S
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Regular shipping packaging or depends on customer's requirement
Delivery Time 7-15 Working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 10000 PC Per Month
Product Details
Type PL Flange Material A182 F310S
Color Sliver Size 1/2''-24''
Surface RF Standard ASME B 16.5
Shape Round Payment T/T Or Others
Packge Wooden Case Or As Customer's Request
Highlight

Stainless Steel spectacle blind flange

,

ASME B16.5 pipe fitting flange

,

CL300 RF forged steel flange
Leave a Message
Product Description

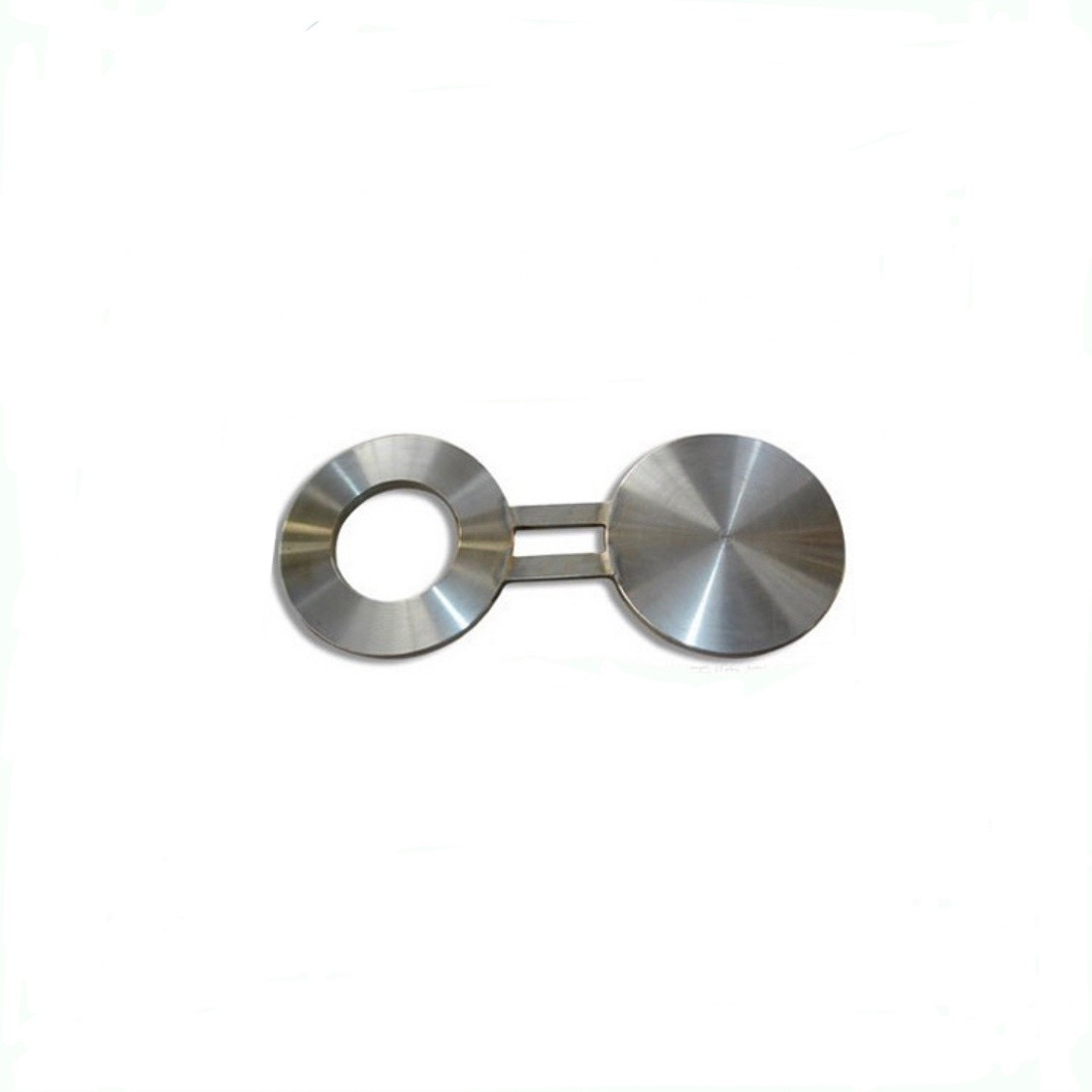

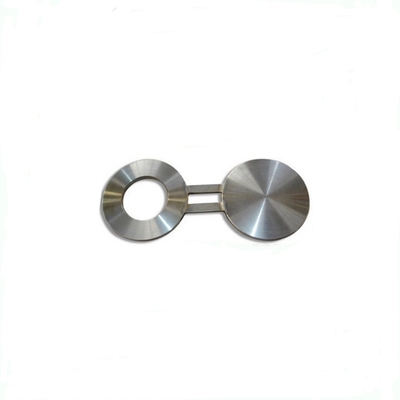

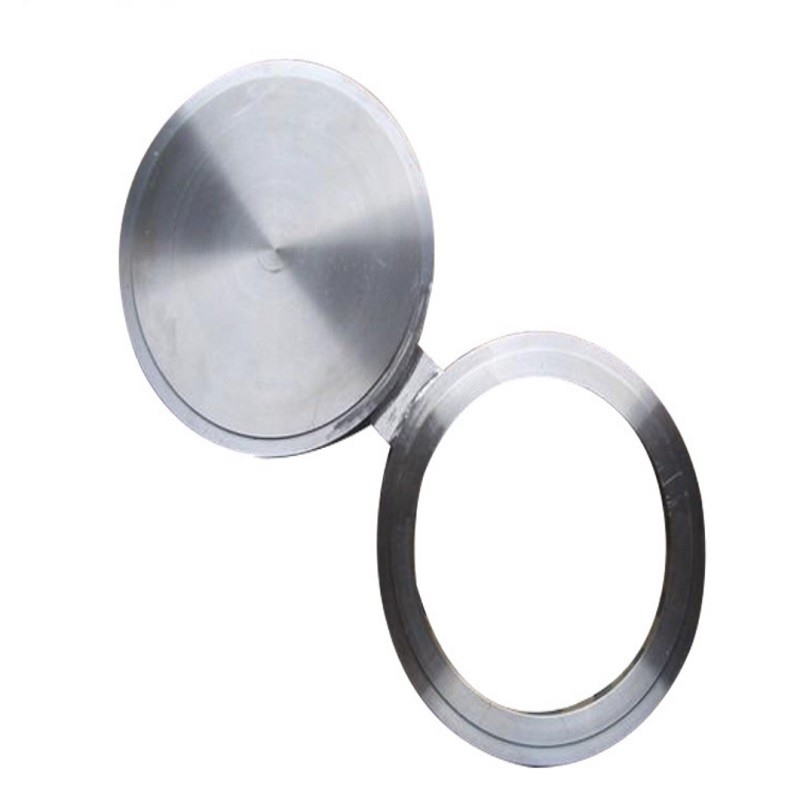

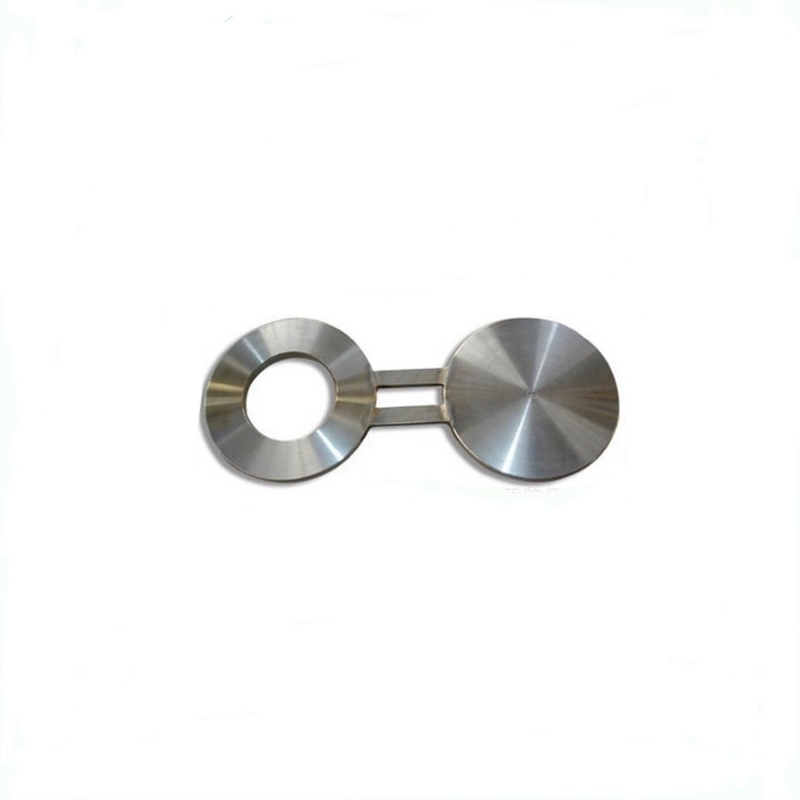

Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5





Eight blind Flange :

8 word blind board is a kind of pipe parts, mainly for the convenience of maintenance, specific shape you can paint the "8" the upper

part of the black to know.It's half blind and half hoop.It is often used for pipeline flanges that need to change the process. The main materials are carbon steel, stainless steel and alloy, which can be selected according to pipeline pressure level and pipeline medium.

Purpose:
For convenience of maintenance

Used for:
The pipeline flange of the process needs to be changed
It is usually used in pipelines with large pipe diameters. Usually, one end of the flange is used to occupy the space to keep the pipeline smooth. When necessary, the other end is replaced with a blind plate of the same thickness to cut off the pipeline.Avoid the pipeline

being forced to expand due to temporary replacement of other blind plates, affecting the whole system.





FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer ,You can see the Alibaba certification.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.






Type

weld neck flange, slip on flange, blind flange, tube sheet, threaded flange,

socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange.
OD 15mm-6000mm. 1/2"to 80".DN10-DN3600
Pressure 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000
Standard ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST,
ALL UNI, AS2129, API 6A , BS4504, etc
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc.
Stainless steel

A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H,

347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401,1.4571, 1.4541 etc.
Carbon steel

A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55,
A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20,

P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc.
Duplex steel UNS31803, 2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410,
1.4501, A182F51, A182F53 and etc.
Pipeline steel A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc
Nickel alloy inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22,
C-276, Monel400, Alloy20 etc.
Cr-Mo alloy A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.
Application

Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding,

onshore platform
Attention ready stock,faster delivery time;available in all sizes,customized;high quality



Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5 0Pipe fitting spectacle blind Flange Stainless Steel A182 F310S 4" CL300 RF ASTM A105N ASME B16.5 1
