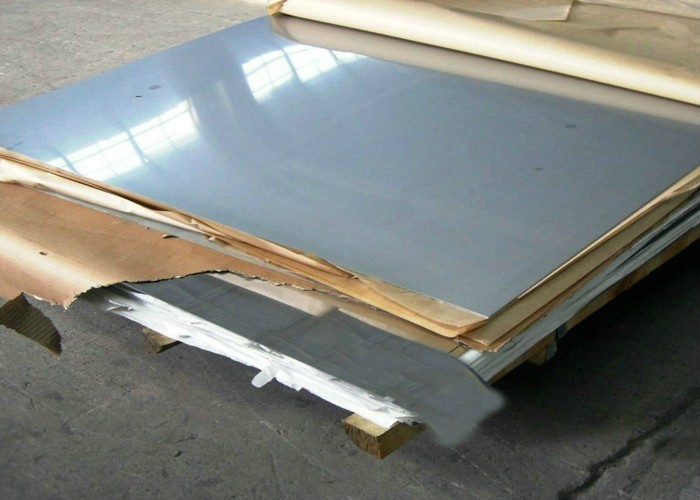

ASTM B424 Nickel alloy 825 1244*2500mm Hot Rolled Stainless Steel Plate

  • ASTM B424 Nickel alloy 825 1244*2500mm Hot Rolled Stainless Steel Plate
  • ASTM B424 Nickel alloy 825 1244*2500mm Hot Rolled Stainless Steel Plate
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number ASTM B424/ASME SB424,ASTM B906/ASME SB906
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1500 tons per month
Product Details
Standard ASTM B424/ASME SB424,ASTM B906/ASME SB906 Color White, Silver
Material Nickel Alloy 825 Type Steel Plate
Highlight

ASTM B424 Nickel alloy 825 stainless steel plate

,

Hot rolled stainless steel plate 1244x2500mm

,

Nickel alloy 825 stainless steel plate with warranty
Leave a Message
Product Description

ASTM B424 Nickel alloy 825 Hot Rolled Stainless Steel Plate

Specifications

Nickel alloy 825 (UNSO8825) Plate:
1)Size:1000mm x 2000mm
2)Thk:1mm-60mm
3)Standard:ASTM B424/ASME SB424,ASTM B906

  Nickel alloy 825 (UNS08825) Plate :
1)Size:1000mm x 2000mm
2)Thk:1mm-60mm
3)Standard:ASTM B424/ASME SB424,ASTM B906/ASME SB906
Incoloy 825 Chemical composition:
Alloy
%
Ni
Cr
Fe
C
Mn
Si
Cu
Mo
Al
Ti
P
S
825

Min.
38
19.5
balance





1.5
2.5
1.0
0.6


Max.
46
23.5
balance
0.05
1
0.5
3
3.5
0.2
1.2
0.02
0.03

Incoloy 825 Physical properties
Density
8.1 g/cm³
Melting point
1370-1400°C

Incoloy 825 Alloy mi nimum mechanical properties in the room temperature
Alloy state
Tensile strength
Rm N/mm²
Yield strength
R P0. 2N/mm²
Elongation
A 5 %
Brinell hardness
HB
825
550
220
30
≤200

Characteristic as below :
1. Good stress corrosion cracking resistance performance
2. Good resistance for pitting and crevice corrosion performance
3. Good anti-oxidation and non-oxidzing heat acid performance
4. Good mechanical performance in both room temperature and up to 550°C
5. Have the pressure vessel authenticate when manufacture temperature up to 450°C

Incoloy 825 Metallurgical structure:
825 is the face-centered cubic lattice structure.


Incoloy 825 Corrosion resistance
825 is an all-purpose project alloy, have good corrosion resistance of the acid and alkali metal property in both oxidation and reduction environments. High nickel content made it with effective stress corrosion cracking resistance performance. 825 have excellent corrosion resistance in different kinds of media, such as sulfuric acid, phosphoric acid, nitric acid and organic acid, alkali metal such as sodium hydroxide, potassium hydroxide, and hydrochloric acid. A variety of media corrosion of nuclear-burning dissolver show 825 high integrated prpperty, like sulfuric acid, nitric acid and potassium hydroxide are all dealing in a same device.


Incoloy 825 Application field:
825widely use in many kinds of industry field that the working temperature no more than 550°C.



Incoloy 825 Typical application field:
1. Sulfuric acid factory usage for heating pipe, container, basket,chain and so on.
2. Cooling heat exchanger, marine product pipeline system and gas pipeline of acidic environment.
3. Heat exchanger, steam machine, washing, impregnation pipe, etc. for phosphoric acid produce
4. Oil refining in the air heat exchanger
5. Food project
6. Chemical process
7. Application of high pressure oxygen flam-retardant alloy
