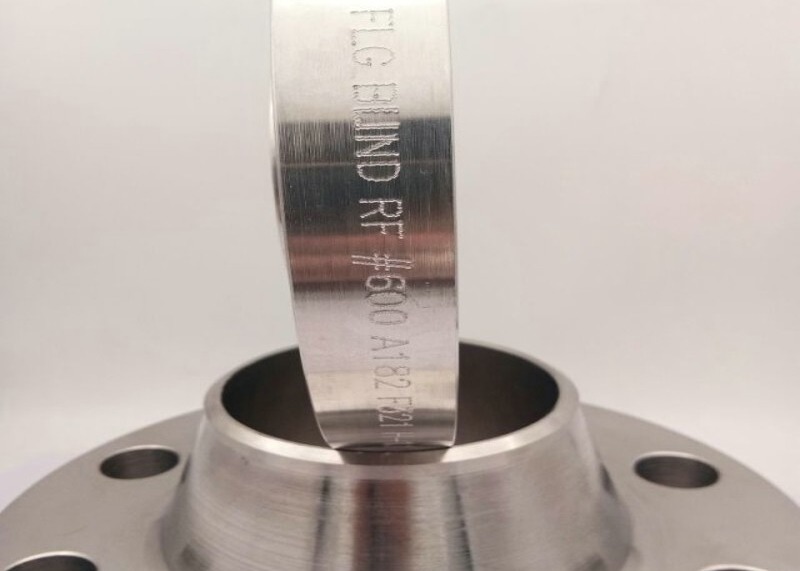

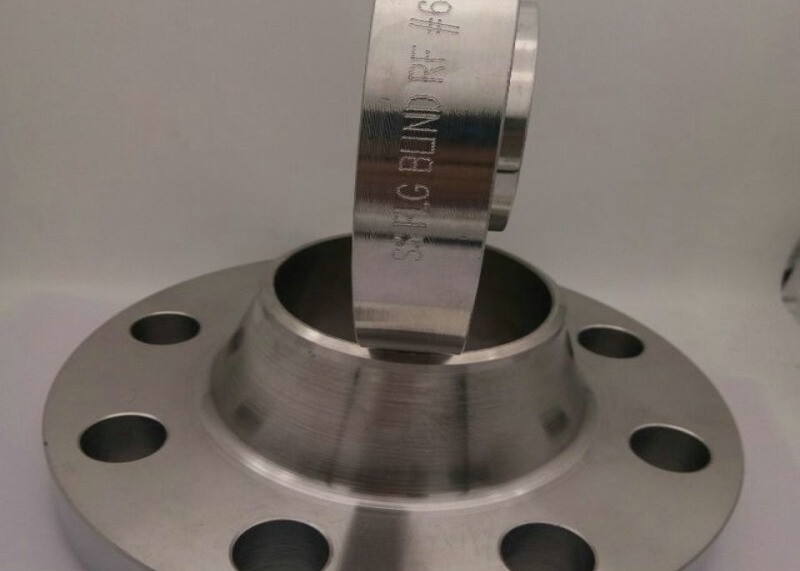

SS ASTM A182 F321H-3"600# Sch10s Slip On Flange RF WN Flange Price

SS ASTM A182 F321H-3"600# Sch10s Welding Neck Flange RF WN Flange Price

Detailed Product Description

Slip-on Flanges Slip-on flanges are a popular type of pipe flanges. These are type of flanges that slide over the end of piping and then welded in place. These flanges are ideal for lower pressure applications. These are easily fitted and welded into different pipes. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications. Why slip on flanges are preferred to welding neck flanges? For many users, slip on flanges continue to be preferred to welding neck flanges because of the following reasons: On account of their initially lower cost. The reduced accuracy needed in cutting the pipe to length. The greater ease of alignment of the assembly. The calculated strength of slip-on flanges under internal pressure is approximately two-thirds that of welding neck flanges.

Description:

This slip on weld flange is according to JIS standard.It is a flange system made by Japan. This kind of flange include lots of specification,like SOP, SPH, Blind flange, plate flange, welded neck flange, etc.

Slip on weld flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.

The material of the flanges is carbon steel. The flange can connecting pipes, valves, pumps and other equipment to form a pipework systems. It is the machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices most widely used pipe fittings.

How to measure slip-on flanges?
Take the measurements of:

• OD: Outside Diameter
• ID: Inside Diameter
• BC: Bolt Circle
• HD: Hole diameter

Key Features of Slip-On Flanges :
Some important features are as follows:
One size fits all pipe schedules.
Fabricators can more easily cut pipe to length for slip-on flanges.
The smaller thickness of this flange allows for easier alignment of bolting holes.
They are generally not preferred for high pressure temperature environments.

Advantages of slip on flanges:
Low cost installation
Less time needed to spent on ensuring the accuracy of the cut pipe
they are somewhat easier to align
the slip-on flanges have low hub because the pipe slips into the flange before welding
the flange is welded both inside and outside to provide sufficient strength
they prevent leakage

Product Range-
Size : 1/8" NB TO 48"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel Slip on Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel Slip on Flanges : ASTM A 105, ASTM A 181

Alloy Steel Slip on Flanges: ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys Slip on Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys Slip on Flanges : Copper, Brass & Gunmetal

Slip on Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Product Range-
Size : 1/8" NB TO 48"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel Slip on Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

Carbon Steel Slip on Flanges : ASTM A 105, ASTM A 181

Alloy Steel Slip on Flanges: ASTM A 182, GR F1, F11, F22, F5, F9, F91

Nickel Alloys Slip on Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Copper Alloys Slip on Flanges : Copper, Brass & Gunmetal

Slip on Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

B.S : BS4504 , BS4504, BS1560, BS10

Slip On Weld Flange SOHFF With JIS B2220 - 1984  5K 10K 16K 20K  For Petroleum

Specifications:

Type:       SOHFF Flange

Material:   SS400

Standard: JIS B2220-1984

Pressure: 5K, 10K, 16K, 20K

Size:         15A-1500A

Coating:   Rust-proof oil,yellow paint,galvanized.
