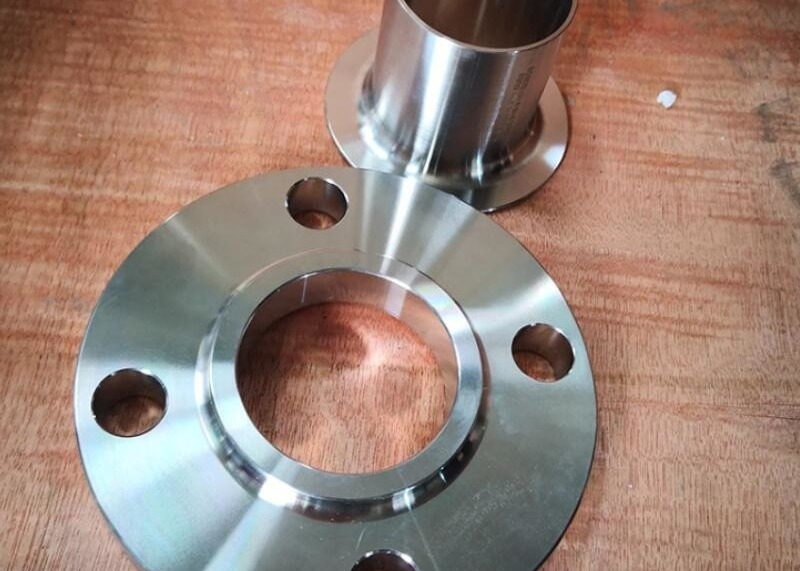

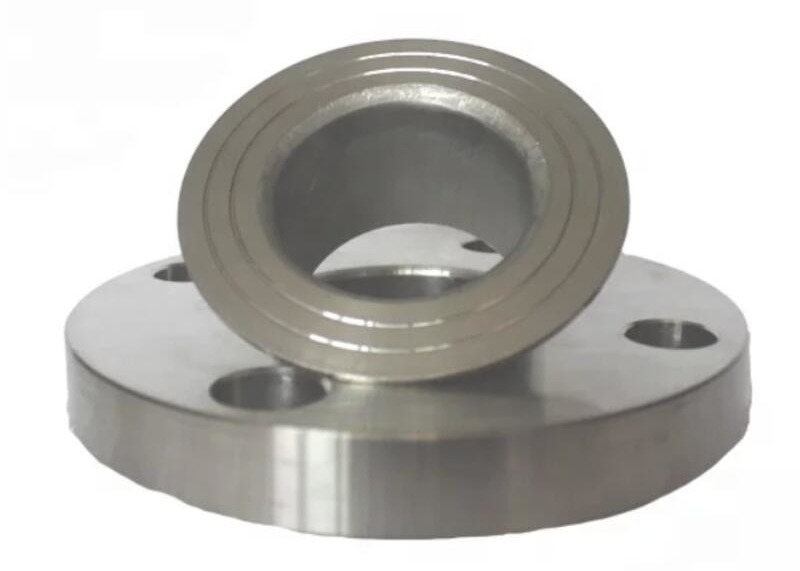

DN150 600# 6inch lap joint A304 flange LJW SS good selling flange

  • DN150 600# 6inch lap joint A304 flange LJW SS good selling flange
  • DN150 600# 6inch lap joint A304 flange LJW SS good selling flange
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASME B16.47 304 316
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Payment Terms D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100000PC/MONTH
Product Details
Product Name Lap Joint Flange Type Stainless Steel Flange
Pressure CL1500 Grade ASME B16.47 304 316
Standard Or Nonstandard Standard Size 1''-48''
Standard ASME/ANSI B16.47 Thickness STD
Highlight

DN150 lap joint stainless steel flange

,

6inch A304 forged steel flange

,

600# pressure rating SS flange
Leave a Message
Product Description

DN150 600# 6inch lap joint A304 flange LJW SS good selling flange



ASME/ANSI B16.47 304 316 Slip-on Flange

Slip-on flange refers to a kind of flange connected with vessel or pipe by fillet weld. Belongs to arbitrary flange. According to the integral degree of connection between flange ring and straight pipe segment, check the integral flange or loose flange respectively. Flange ring with neck and without neck two kinds. Compared with neck butt welding flange, plain welding flange has simple structure and less material, but its rigidity and sealing property are not as good as neck butt welding flange. Flat welding flange is widely used in the connection of medium and low pressure vessels and pipelines.



Product Name

304 316 1''-48'' 1500# stainless steel slip-on flange

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Brand

TOBO

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Advantages

1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)



304 316 Stainless Steel Slip-On Flange



1. Size: 15mm-600mm



2. Type: SLIP-ON

3. Standard: ANSI B16.5, DIN, JIS, GOST, BS, En and so on



4. Material: 304,316,nickel alloy inconel 600, inconel 625, inconel 601, inconel 690, inconel 625,inconel 718,incoloy 800, incoloy 825, incoloy 800h, C-276,monel 400, alloy 20 etc.



5. Class: 150#-2500#



6. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on



7. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
