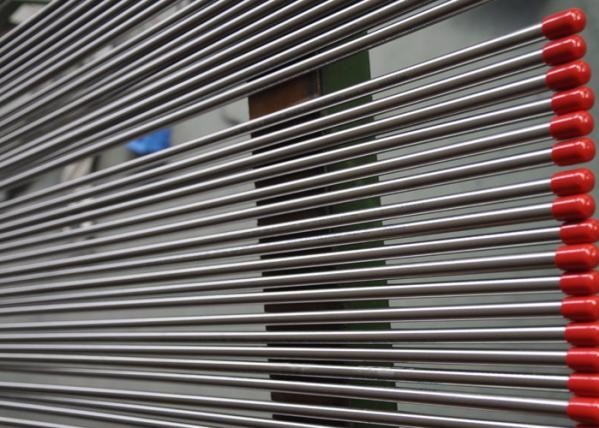

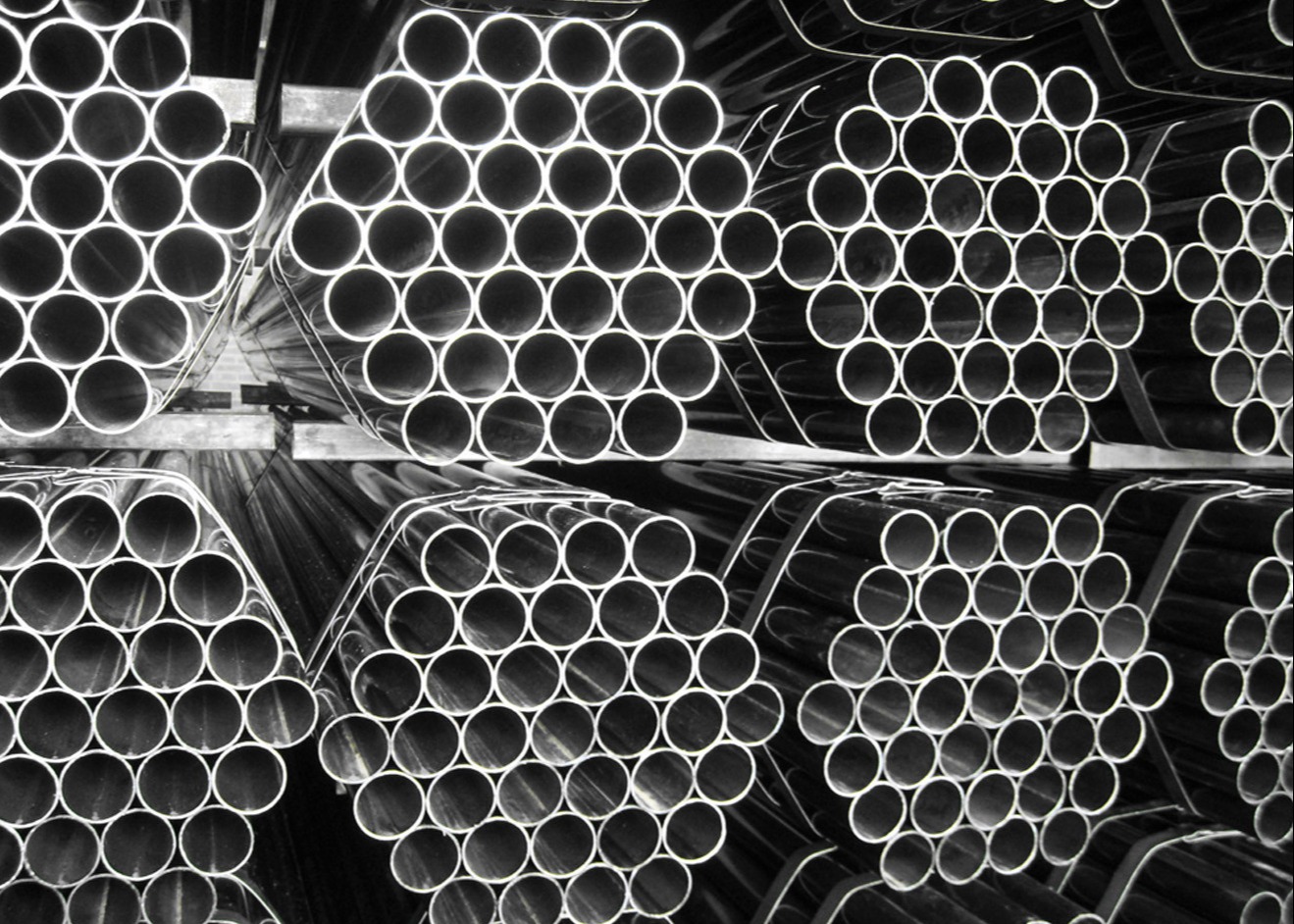

Hot Rolled Seamless Austenitic Stainless Pipe A312 A999 UNS S31254 ASME ANSI Alloy Steel Titanium

Hot Rolled Seamless Austenitic Stainless Pipe A312 A999 UNS S31254 ASME ANSI Alloy Steel Titanium



FEATURES

S31254 is a high performance austentic stainless steel. Its high alloying elements content imparts excellent resistance to uniform, pitting and crevice corrosion, and stress cprrosion cracking, It was riginally developed to withstand the corrosion of acids, especially in the presence of halide ions, such as hydrochloric acid, hydrochloric acid, phosphoric acid, and sulphuric acid contaminated with chlorides. In certain environments it is an alternative to more expensive Alloy alloys and titanium alloys.



APPLICATIONS

Chemical processing equipment, plup and paper industr bleachin equipment, desalination plant seawater piping, food and beverage industry, pharmaceuticals, and hydrometallurgy.



Specifications

1 .Pipe caps
2 .Professional manufacturer (32 years)
3. Fast Delivery
4. Size: 1/2"---68"
5. WT: sch5-sch160 XXS

product name:pipe cap

pipe fittings caps   Size 1/2"-68"DN15-DN1800 Wall thickness Sch5-Sch160XXS Standard ISO, SNSI, JIS, DIN, GB/T12459GB/T13401ASME B16.9SH3408 SH3409HG/T21635HG/T21631SY/T05010 Material A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L Packaging Wooden Cases or wooden pallet or as per customers requirement Applications range Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc   Min Order Quantity According to customer's requirement   Delivery Time According to customer's requirement Quality First grade   Productivity 1,118,000T/Y 1. anti-corrosion and high-temperature resistant with black painting 2. All special design available according to requirementS 3. The production process are made under the ISO9001:2000 strictly.





Cap



1.Product Details.



Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :



Carbon Steel: ASTM A-234 (WPB,WPC)

EN 10216-2 (P235GH,P265GH)

EN10222-2(P245GH,P280GH)

NF A49-213 (TU42C,TU48C)

Low Alloy Steel : ASTM A-420(WPL6)

ASTM A-234(WP11,WP22,WP5)

ASTM A-860(A860-WPHY52)

Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347,WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),X2CrNiMo17-12-2

(1.4404)





Standrad



1 )Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :



Carbon Steel: ASTM A-234 (WPB,WPC)

EN 10216-2 (P235GH,P265GH)

EN10222-2(P245GH,P280GH)

NF A49-213 (TU42C,TU48C)



Low Alloy Steel : ASTM A-420(WPL6)

ASTM A-234(WP11,WP22,WP5)

ASTM A-860(A860-WPHY52)



Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347,WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12-2(1.4401),X2CrNiMo17-12-2

(1.4404)

Seamless Pipe Cap

Material Code
CARBON STEEL	ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6,WPHY-42
	WPHY-46, WPHY-52, WPHY-60 WPHY-65, WPHL-70.
ALLOY STEEL	ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91
STAINLESS STEEL	ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254
STANDARDS	ANSI, ISO, JIS, DIN, BS, GB, SH, HG, QOST, ETC.
CE and certification:	ISO9001:2000, API, BV, SGS, LOIYD
Application range:	Petroleum,chemical,power,gas,metallurgy, shipbuilding,Construction, water and nuclear power etc.
The third party	BV, SGS, LOIYD, TUV, and other party alloyed by clients.
Delivery time:	At the earliest, within the period required by customers.
Remark	Also can supply IBR fittings and Specialized NACE & HIC Fittins.



Nominal Diameter Outside Diameter at Bevel Back to End   Series A Series B E T E1   DN NPS   15 1/2 21.3 18 25 4.57 25   25 1 33.7 32 38 4.57 38   40 1.1/2 48.3 45 38 5.08 38   50 2 60.3 57 38 5.59 44   65 2.1/2 76.1(73) 76 38 7.11 51   80 3 88.9 89 51 7.62 64   100 4 114.3 108 64 8.64 76   125 5 139.7 133 76 9.65 89   150 6 168.3 159 89 10.92 102   200 8 219.1 219 102 12.70 127   300 12 323.9 325 152 12.70 178   350 14 355.6 377 165 12.70 191   400 16 406.4 426 178 12.70 203   450 18 457.2 478 203 12.70 229   500 20 508.0 529 229 12.70 254   550 22 559 - 254 12.70 254   600 24 610 630 267 12.70 305   When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available. Above dimensions acc.to GB/T12459,GB/T13401,ASME B16.9,SH3408,SH3409,HG/T21635,HG/T21631,SY/T05010
