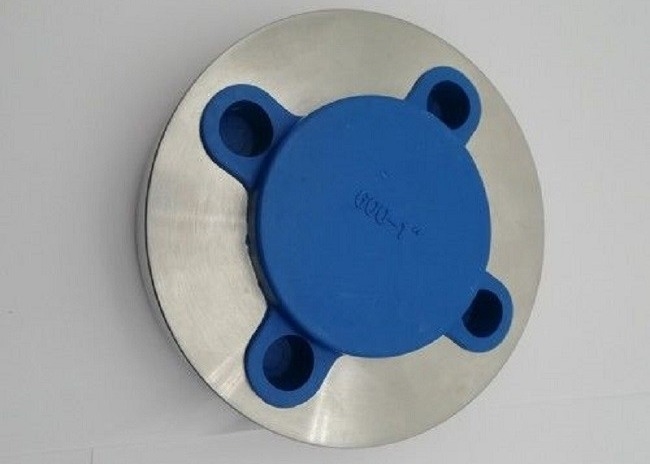

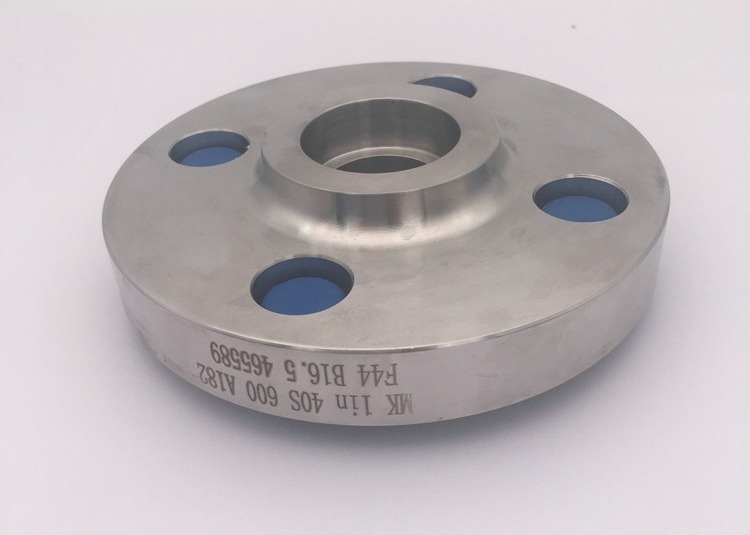

Slip-on hubbed flange sch40s ASTM A182 F44 super stainless steel 1-1/2 inch calss600 ASME
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | ASTM A182 GR F44 |
| Minimum Order Quantity | 300 Kilogram/Kilograms |
| Price | US $ 10 - 100 / Kilogram |
| Packaging Details | Plywood cases or customized |
| Delivery Time | 7-30days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 Metric Ton/Metric Tons per Month |
Product Details
| Product Name | SO RF Flanges | Product Type | Flanges |
|---|---|---|---|
| Grade | Nickel Alloy | Ultimate Strength (≥ MPa) | Rm N/mm2 650 |
| Elongation (≥ %) | 40 | Application | Blades, Vanes, Shafts, Tail Cones, Afterburners, Springs, And Fastener |
| Color | Shining | ||
| Highlight | Slip-on hubbed flange sch40s,ASTM A182 F44 stainless steel flange,1-1/2 inch class600 ASME flange |
||
Product Description
Slip-on hubbed flange sch40s ASTM A182 F44 super stainless steel 1-1/2 inch calss600 ASME
| Product name | Slip On Stainless Steel Flange |
| Standard | ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Type | WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer) Special Flange: According to the drawing Picture |
| Materials | Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675 Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H Duplex Steel: ASTM A182 F51, F53, F55 Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91 Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70.... |
| Dimension | (150#,300#,600#): DN15-DN1500 900# : DN15-DN1000 1500#: DN15-DN600 2500#:D N15-DN300 |
| Marking | Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement |
| Test | Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment |
| Brand | TOBO |
| Certificates | API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc. |
| Advantages | 1. Abundant stock and prompt delivery 2. Reasonable for whole packages and processes. 3. 15 years' QC team service & sales management API& ASTM trained engineers. 4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) |
|
MATERIAL OF FLANGE TUBESHEET |
|
|
Duplex stainless steel |
ASTM A182 F51 F53 F55 F60 F44 |
|
UNS S31803 S32750 S32760 S32205 S31254 2507 |
|
|
Stainless Steel |
ASTM A 182 F904L 347H 347 316L 316 304L 304 |
|
Alloy Steel |
ASTM A 182, GR F1, F11, F22, F5, F9, F91 |
|
Nickel Alloys |
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Carbon Steel |
ASTM A105 A350 LF2, LF6 A694 F42, F46, F52, F60, F65, |
|
BL SO WN or special flange according to Drawing |
|
|
From DN 15---600 |
|
|
ASTM/ANSI B16.5 B16.47A/B DIN JIS BS AS |
|
Description:
This slip on weld flange is according to JIS standard.It is a flange system made by Japan. This kind of flange include lots of specification,like SOP, SPH, Blind flange, plate flange, welded neck flange, etc.
Slip on weld flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
The material of the flanges is carbon steel. The flange can connecting pipes, valves, pumps and other equipment to form a pipework systems. It is the machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices most widely used pipe fittings.
This slip on weld flange is according to JIS standard.It is a flange system made by Japan. This kind of flange include lots of specification,like SOP, SPH, Blind flange, plate flange, welded neck flange, etc.
Slip on weld flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
The material of the flanges is carbon steel. The flange can connecting pipes, valves, pumps and other equipment to form a pipework systems. It is the machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices most widely used pipe fittings.
