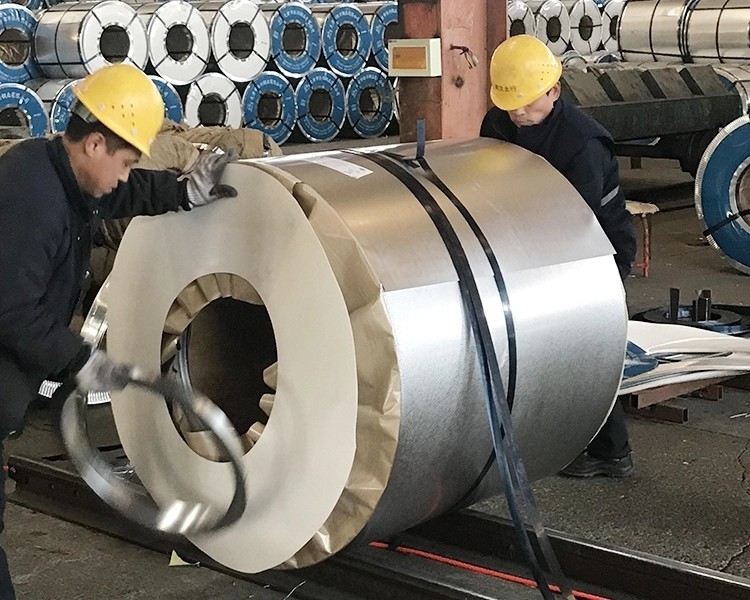

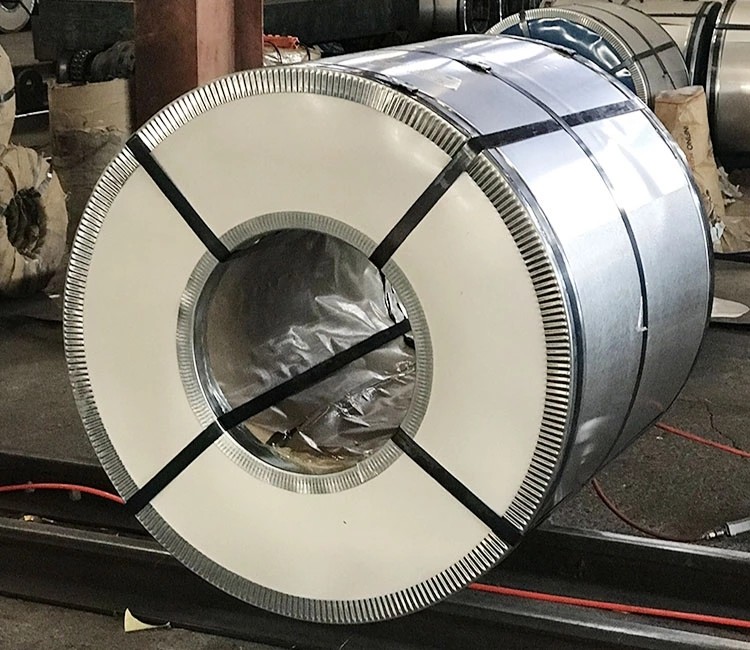

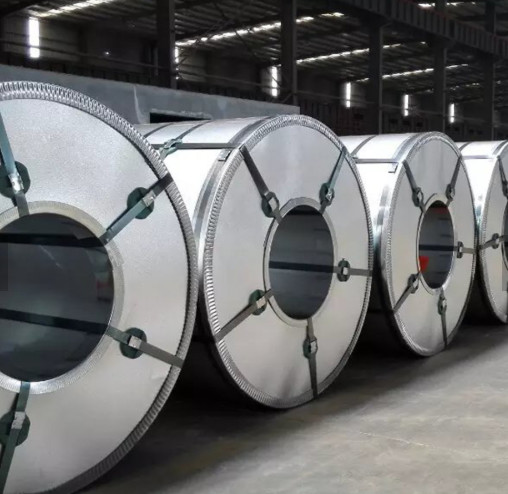

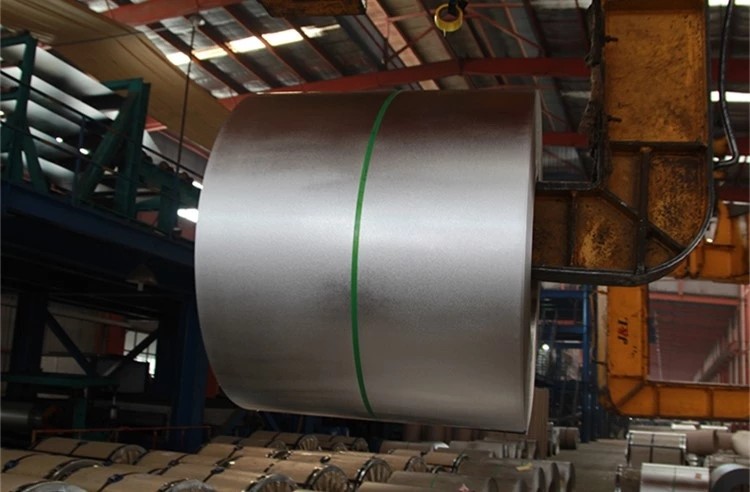

Printed Electrolytic Tinplate ETP Steel Coil For Packaging

Place of Origin	CHINA
Brand Name	TOBO
Minimum Order Quantity	25ton
Packaging Details	Wooden tray, iron wrapper, waterproof paper.
Delivery Time	10-15workdays
Payment Terms	T/T, Western Union,
Supply Ability	300ton/month

Product Details

Standard	AiSi, ASTM, Bs, DIN, GB, JIS	Grade	Tinplate
Width	600-1500MM	Thickness	1.14-6.0MM
Hardness	T1-T5	Model Number	T1,T2,T2,T4,T5,T6,T7
Application	T1	Tolerance	±1%
Processing Service	Bending, Welding, Decoiling, Punching, Cutting	Tin Coating	1.1-5.6
Coil Weight	3-10Tons	Delivery Time	Within 25-30days
ID	508mm Or 610mm	MOQ	25 Ton
Highlight	Printed Electrolytic Tinplate , Packaging Electrolytic Tinplate , ASTM ETP Steel Coil

Leave a Message

Product Description

Printed Electrolytic Tinplate ETP Steel Coil For Packaging

STANDARD	GB, JIS, DIN ,ASTM
MATERIAL	MR SPCC
Grade	Prime
Annealing	BA CA
SIZE	Thickness:0.14-6.0mm
	width :600-1500mm
TEMPER	T1,T2,T3,T4,T5,DR7;DR8;DR9;TH550; TH580;TH620;TH660
COATING	1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/m2
TFS coating	80-100 g/m2
FINISH	Stone,Bright,Silver
PACKING	Standard export packing. or according to customer's requirements.
PAYMENT	T/T or L/C or D/P
WEIGHT	6--25ton/coil
Oiling	DOS

Product Introduction

Tinplate(SPTE) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides. Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance, solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof, ruggedness and unique metal decoration charm. Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers, and widely used in food packaging, pharmaceutical packaging, commodity packaging, instrument packaging, industrial packaging and so on.

Coating Structure

Mechanical Properties

emper Grade	Hardness(HR30Tm)	Yield Strength(MPa)
T-1	49±3	330
T-2	53±3	350
T-3	57±3	370
T-4	61±3	415
T-5	65±3	450
T-6	70±3	530
DR-7M	71±5	520
DR-8	73±5	550
DR-8M	73±5	580
DR-9	76±5	620
DR-9M	77±5	660
DR-10	80±5	690

Coating Weight

Former Coating Designation	Nominal Coating Weight(g/m2)	Minimum average Coating Weight (g/m2)
10#	1.1/1.1	0.9/0.9
20#	2.2/2.2	1.8/1.8
25#	2.8/2.8	2.5/2.5
50#	5.6/5.6	5.2/5.2
75#	8.4/8.4	7.8/7.8
100#	11.2/11.2	10.1/10.1
25#/10#	2.8/1.1	2.5/0.9
50#/10#	5.6/1.1	5.2/0.9
75#/25#	5.6/2.8	5.2/2.5
75#/50#	8.4/2.8	7.8/2.5
75#/50#	8.4/5.6	7.8/5.2
100#/25#	11.2/2.8	10.1/2.5
100#/50#	11.2/5.6	10.1/5.2
100#/75#	11.2/8.4	10.1/7.8
125#/50#	15.1/5.6	13.9/5.2

Production Process

Our Advantages

WHY CHOOSE US

TEAM

More than 120 top-class mills

EQUIPMENT

A number of advanced equipments

QUALITY

Company with a variety of detection devices

FACTORY

We have five branch factories

If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.

If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.

FAQ

1. Are you trading company or manufacturer ?

We are manufacturer ,You can see the Alibaba certification.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Packaging&Shipping

Package:Standard export carton packing.

Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.
