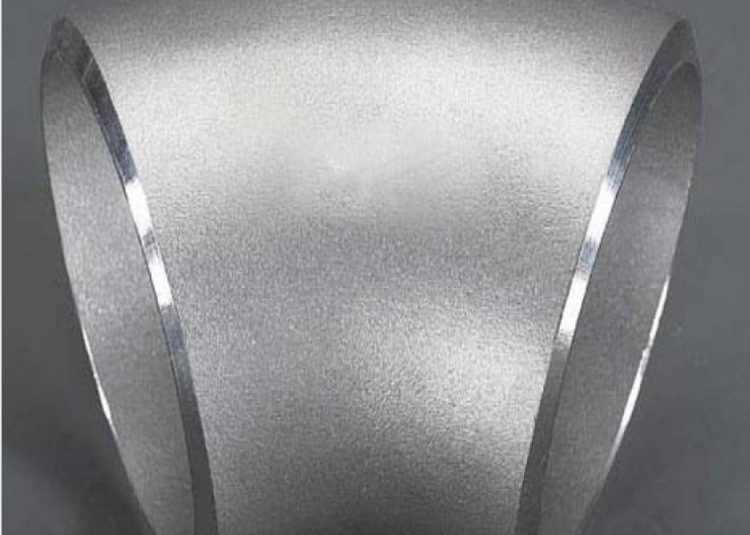

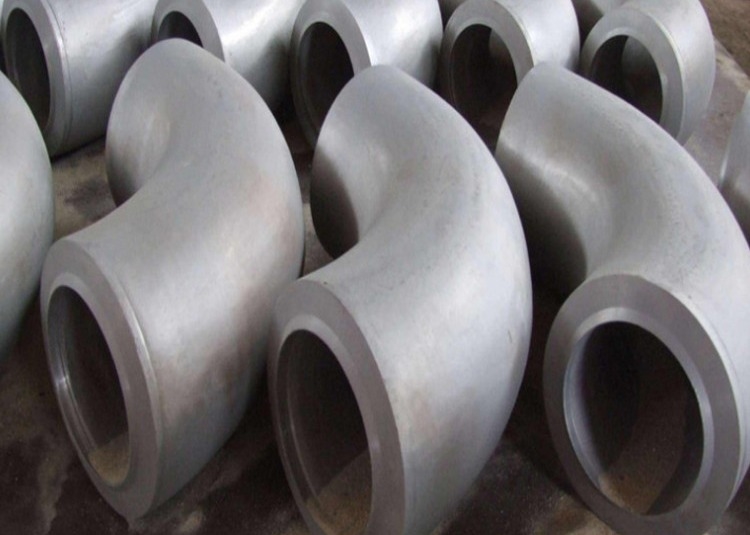

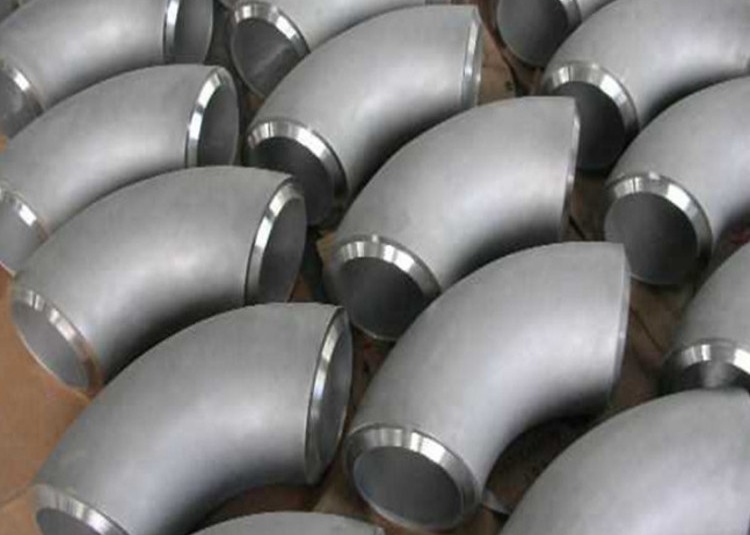

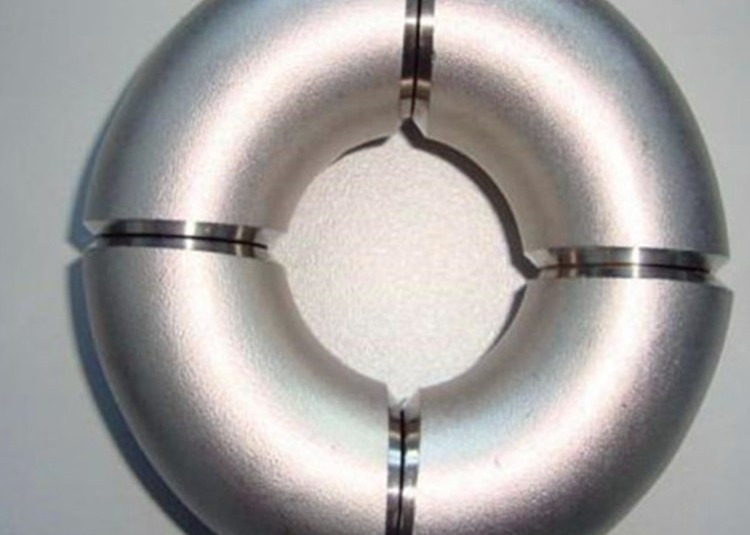

Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow

  • Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow
  • Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow
  • Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow
  • Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow
Place of Origin China
Brand Name Tobo
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Elbow
Minimum Order Quantity 1pcs
Price 1usd
Packaging Details Wooden case
Delivery Time 15 work days
Payment Terms T/T, L/C, Western Union
Supply Ability 90000pcs per mouth
Product Details
Size 2'' Material Grrade F53
Standard ASME B16.9 Color Silver
Thickness SCH80S
Highlight

ASTM A182 Stainless Steel Elbow

,

Long Radius 90 Degree Elbow
Leave a Message
Product Description

Pipe Fittings 2'' SCH80s Super Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow





Quick Detail:



Type of pipe fittings Short Radius Elbow(90D,45D,180D)
Standard Specification ASTM,JIS,BS,DIN,UNI etc.
Material Stainless steel
Connection Welding
Shape Equal
Technics Forged
Qualification ISO9001, API,CE
Application Petroleum, Chemical, Power, Gas, Metallurgy
Equipment Pushing Machine,Beveling Machine,Sand Blasting Machine
Thickness Sch10-Sch160 XXS
Size Seamless 1/2" To 24" Welded 24" To 72"
Surface of Finish Antirust Oil,Hot Galvanized





Description:



1. Product Item No.: 002fittings-Cosco Steel

2. Product name: 2205 Stainless Steel 90D LR Elbow

3. Material: stainless steel,alloy steel,carbon steel

4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800

5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS

6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

7. Pressure: Sch5--Sch160,XXS

8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD

10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."

11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.

12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.

13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

14. Packing: Wooden box or wooden pallet.

15. H.S Code: 73072300

16. Material:



Material ASTM Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo











































Applications:



We,this type pipe fittings be widely used in kinds of industries:

a. Paper Making,Waste-water Treatment

b. Chemical Industry and Natural Gas

c. Shipbuilding

d. Electrical equipment

e. Nuclear Energy

f. Construction

g. Petroleum



Specification



ND OD(MM) Center to end Approx Weight KG/PCS
DN INCH OD A O 5S 10S 20S 40S 80S
20 3/4 25 20.7 - - - - - - -
25 1 32 33.4 25 50 0.055 0.096 0.11 0.11 0.15
32 11/4 38 42.2 32 64 0.069 0.075 0.102 0.132 0.14 0.15 0.158 0.17 0.20 0.236
40 11/2 45 48.3 38 76 0.12 0.13 0.18 0.186 0.2 0.21 0.22 0.24 0.3 0.33
50 2 57 60.3 51 102 0.17 0.176 0.297 0.308 0.787 0.396 0.42 0.44 0.6 0.616
65 21/2 73 76.1 64 128 0.35 0.364 0.53 0.546 0.64 0.655 0.89 0.91 1.0 1.29
80 3 89 76 152 0.486 0.729 0.972 1.36 1.94
90 31/2 101.6 89 178 0.7 1.05 1.4 1.96 2.8
100 4 108 114.3 102 204 0.90 0.94 1.2 1.4 1.7 1.876 2.56 2.77 4.0 4.13
125 5 133 141.3 139.7 127 254 1.8 2.02 2.1 2.37 3.2 3.49 4.0 4.4 6.5 6.98
150 6 159 168.3 165.2 152 304 2.6 2.9 3.1 3.4 4.8 5.0 6.8 7.1 10.3 11.0
200 8 219 216.3 203 406 6.25 5.0 7.0 6.8 11.08 10.7 14.1 13.5 22 21
250 10 273 267.3 254 508 10.08 9.7 11.2 10.0 17.6 16.0 24.6 23.0 44.8 40.0
300 12 325 323.9 318.5 305 610 14.8 16.7 23.3 37 64.5
350 14 377 355.6 356 711 19.1 15.6 22 19.5 38 34 48.6 42.6 80.0 74.0
400 18 426 406.4 406 812 29.0 26.5 35 30 57.0 49.9 67 62 149.0 135.0
500 20 529 508 508 1016 - - - - -
550 22 559 559 1118 - - - - -



Stainless Steel ASTM A182 F53 Long Radius Seamless 90 Degree Elbow
