NPS 50' SO Flange 200lbs Butt Weld Fittings Corrosion Proof

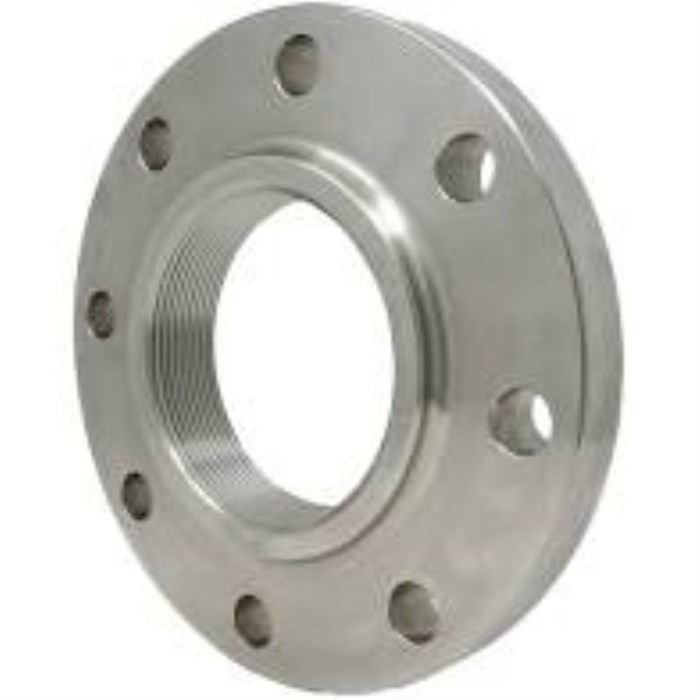

Slip on 200-1000lbs Stainless Steel Flanges ASTM A182 F304/304H/304L RF



Stainless steel flanges offered can be made available by us in different finish configuration choices

so as to perfectly match up with the specific work application needs of the customers. It is widely used in the

chemical processing industries, oil refineries and gas pipelines.

This flange allows the simple and secure installation of pipes in various direction to form a reliable piping

system. It is leakage proof and high;y resistant against corrosion. Moreover, Stainless steel is extremely

durable and available for customization in various specifications.

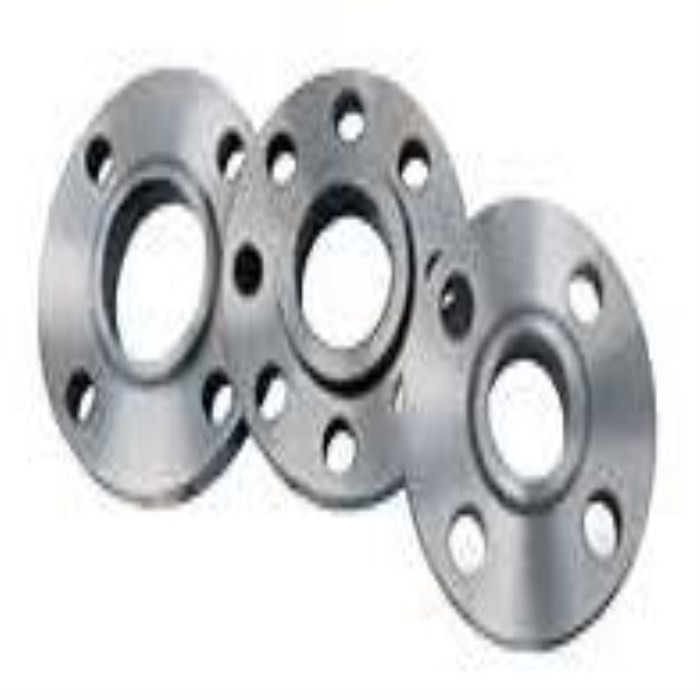

Slip on flange are slipped over the pipe and welded to provide strength and prevent leakage. This SORF

flange can sometimes have a boss or hub and can be made with a bore to suit either pipe or tube. The

Slip on Flanges is at the low-cost end of the scale. SORF flanges are not required high accuracy when

cutting the pipe to length.





Features



• Dimensional precision
•
• Optimum pressure bearing efficiency
•
• Rigid & compact design
•
• Corrosion proof
•
• Completely machined bore









Specifications:

Slip On Flange Standards	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
ASME B16.5 Slip On Flange Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Slip On Flange Pressure Calculation in DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Slip On Flange
Slip On Flange Pressure Rating ANSI	Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Slip On Flange
UNI	6Bar 10Bar 16Bar 25Bar 40Bar Slip On Flange
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Slip On Flange
Coating	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Slip On Flange
EN	6Bar 10Bar 16Bar 25Bar 40Bar Slip On Flange
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most common types of Slip On Flange	Forged / Threaded / Screwed / Plate
Connect Type/ Flange Face Type	Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Production technique	Forged, Heat treated and machined
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations
Origin	Indian / West Europe / Japan / USA / Korean
Equipment	Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Slip On Flange Uses & application	Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids.
Manufacturer of	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. Slip On Flange: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Slip On Flange The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276









Advantages



1. Large inventory



2. 15 years' QC team service & sales management API& ASTM trained engineers.



3.More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Industry, Kuwait



4.National oil, Petrobras, PDVSA, Petro Ecuador, SHELL and ect.)



5.The product can be produced according to the customers' drawing Picture



6.Smooth and streamline outside shape



7.Long term Anti-corrosion properties



8.Precise tolerances



9.Long life cost saving



Our Slip on flange have a number of dedicated buyers across the country and globally mainly due to the high

levels of international industrial standards adhered to by us. The raw materials used have been tested and

then used to confirm the robust and sturdy character of this product. Our product ensures accuracy and precision

so that our clients get value for their money. Moreover, our range of SORF flanges or slip on flanges are offered

at industry leading prices. The Slip on flange is an attachment fitting that is secured to the end of a pipe for

installation purposes. The hardness of this product is thoroughly checked and a detailed quality report is

prepared to counter the future complications involved in this industrial domain.
