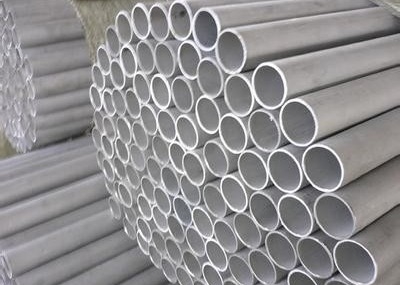

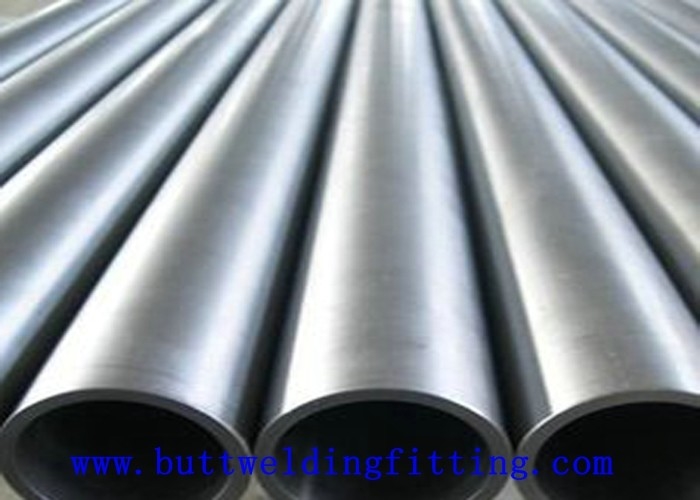

ASTM A519 JIS3445 EN10 Standard seamless stainless steel carbon steel Pipe

ASTM A519 JIS3445 EN10 Standard seamless stainless steel carbon steel Pipe



Product Decription:



















































































Specification:

1. Material: Stainless Steel Pipe S31803/S31500/S32750 ETC
2. O.D: 6mm-710mm , Thickness:2.5-50mm

3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.

4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.

5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M

6. Butt Weld End: According to ANSI B 16.25
7. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.

9. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.

10. MTC: TOBO Official Original MTC paper will be supplied for each order.



We can dealing with different material grades as following:



American Standard	Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard	1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard	08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ



Application:
a) For fluid & gas transport
b) Structure & machining etc

Advantages:
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc
