201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe

  • 201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe
  • 201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe
  • 201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number Duplex Stainless Steel Pipe
Minimum Order Quantity 100KG
Price USD Depending on quantity
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 10-90 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 500 tons per month
Product Details
Material AISI 310S Roun Material Grade 01/202/302/304/304L/310/314/314L/316/316L/430/409
Thickness 2.5mm---50mm Processing Bending, Welding, Cutting
Welding Line Type Seamless Standard ASTM A790/A789 PICKLED AND ANEANLED
OD 6MM---710MM Application Industry
Usage Industry/Chemical Equipment/Kitchen
Highlight

201 Seamless Stainless Steel Pipe

,

AISI 310S Stainless Steel Pipe

,

2.5mm Thick Stainless Steel Pipe
Leave a Message
Product Description

201 304 316L carbon seamless AISI 310S Round AISI 310S Roun Pipe



Product Decription:

Inspection & Test
1. 100% PMI, Spectro Chemical Analysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test Flattening Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.



Specification:
1. Material: Stainless Steel Pipe S31803/S31500/S32750 ETC
2. O.D: 6mm-710mm , Thickness:2.5-50mm

3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.

4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.

5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M

6. Butt Weld End: According to ANSI B 16.25
7. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.

9. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.

10. MTC: TOBO Official Original MTC paper will be supplied for each order.

2 (2).jpg

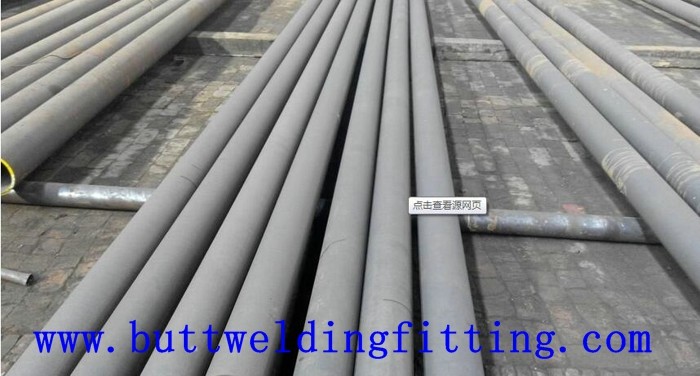

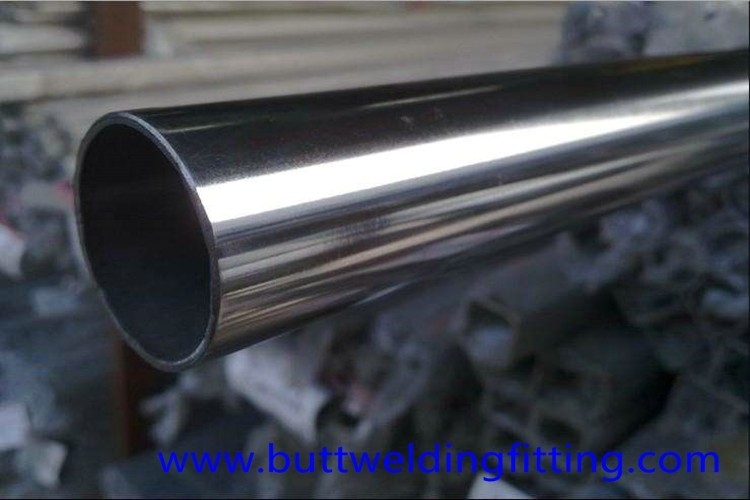

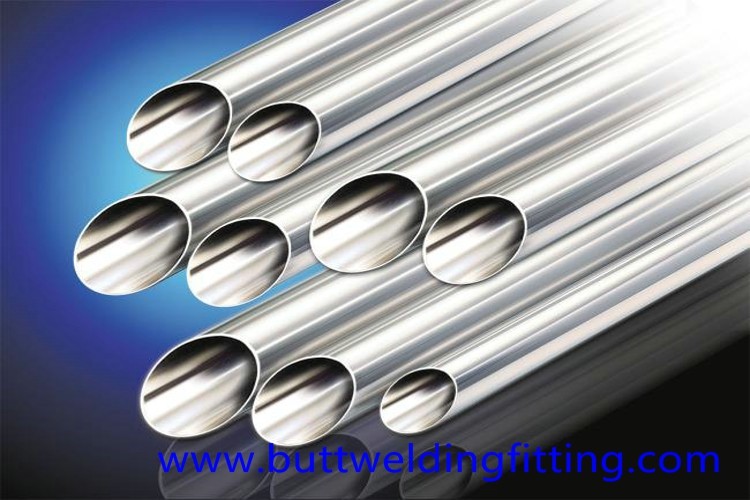

201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe

201 304 316L Carbon Seamless AISI 310S Round AISI 310S Round Pipe

We can dealing with different material grades as following:



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ



Application:
a) For fluid & gas transport
b) Structure & machining etc


Advantages:
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc



Packaging & Shipping:

Package:Standard export carton packing.

Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.
