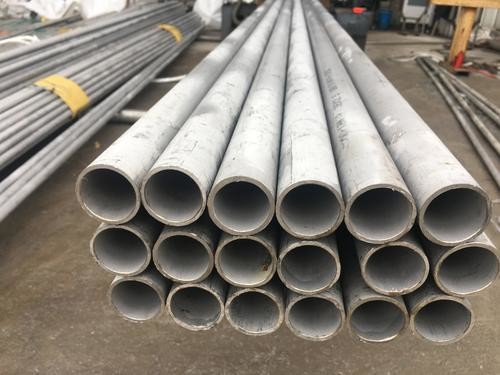

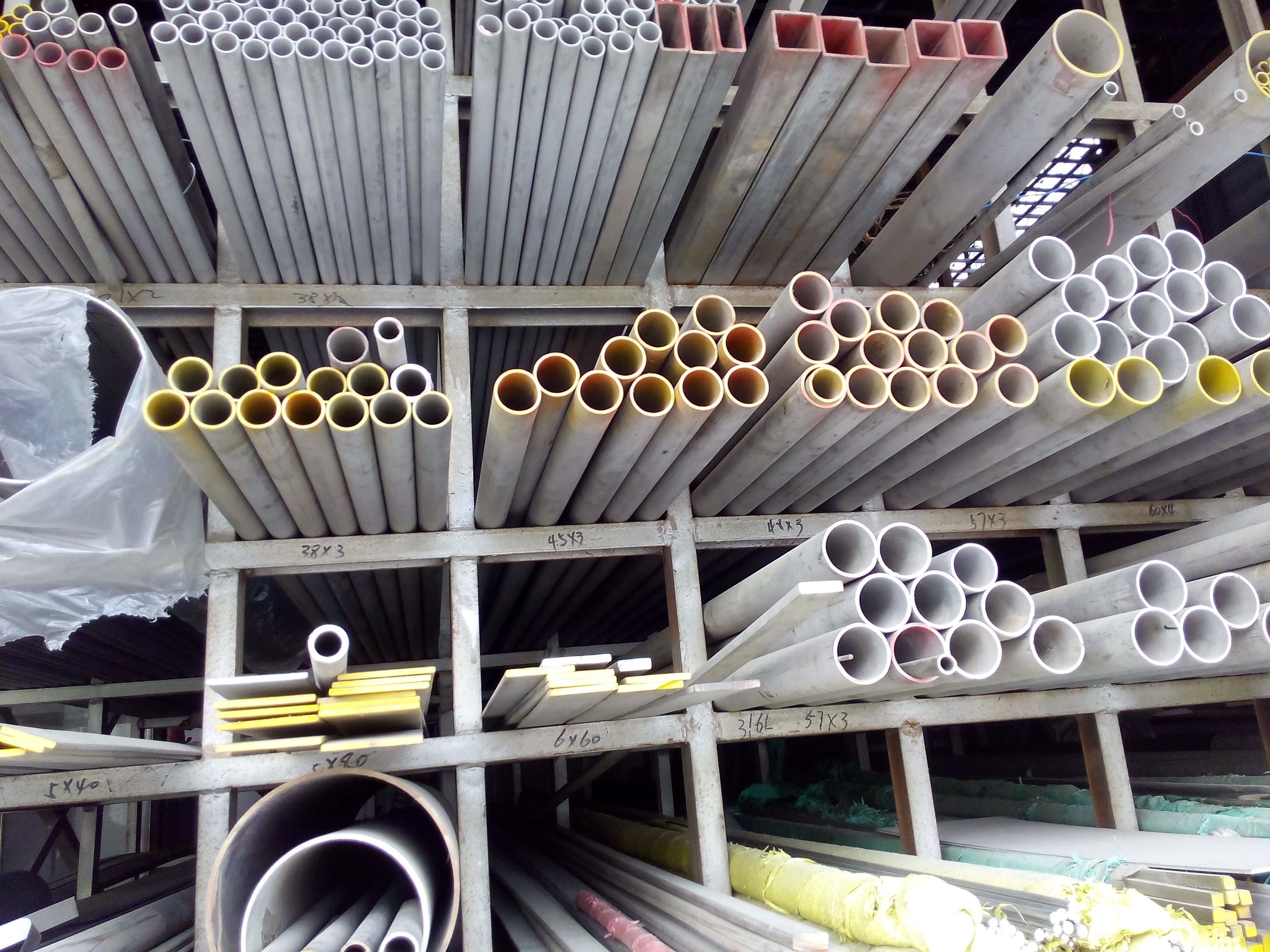

316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube

  • 316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube
  • 316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Application Fluid Pipe,Structure Pipe
Surface Annealed & Pickled, Bright Annealing, Polished Types Seamless
Thickness 0.5-100mm Outer Diameter 6-813mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample Provided,Free,Available Free Within 7days
Highlight

SS316L Seamless Stainless Steel Pipe

,

300 Series Austenitic Stainless Steel Pipe

,

OD 19mm Seamless Stainless Steel Tube
Leave a Message
Product Description

316L 304 seamless stainless steel pipe 300 Series Austenitic Stainless Steel Pipe Seamless stainless steel tube

Overview
Quick Details
Place of Origin:
China
Model Number:
1/2"-12"
Type:
Seamless
Steel Grade:
300 Series, 316L, 304
Application:
Pharmaceutical and chemical fluid equipment
Certification:
Sgs
Welding Line Type:
Spiral Welded
Outer Diameter:
19mm
Tolerance:
±5%
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Grade:
SUS304/316L
Section Shape:
Round
Alloy Or Not:
Non-Alloy
Surface Finish:
2BB
Invoicing:
by actual weight
Delivery Time:
31-45 days
Product name:
Stainless steel seamless pipe
Material:
SUS304/316L
Operating temperature:
0~150℃
principle:
Adsorption method
suitable for:
Pharmaceutical and chemical fluid equipment
another name:
stainless steel pipes
type:
Welded pipes
MOQ:
1pcs
material::
316Lor 304 stainless steel

































Packaging & Delivery

Selling Units:
Single item
Single package size:
30X5X5 cm
Single gross weight:
5.000 kg
Package Type:
exported standard packing
sanitary valves and  fittings
Picture Example:
Lead Time:
Quantity(Kilograms) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 7 10 15 To be negotiated





Inspection and Test Procedure
1
100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2
100% Dimension & Visual Examination
3
Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4
100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5
Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6
Straightness Test (optional)
7
Roughness Test (optional)
8
ntergranular Corrosion Test(optional)
9
Impact Test (optional)
10
Grain Size Determinations (optional)

NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
Size (Tube OD)
Part Number
Dimensions
304
316L
Wall Thickness
ID
Gauge
1/2"
A270P-304050
A270P-316050
0.065
0.370
16
3/4"
A270P-304075
A270P-316075
0.065
0.620
16
1"
A270P-304100
A270P-316100
0.065
0.870
16
1-1/2"
A270P-304150
A270P-316150
0.065
1.37
16
2
A270P-304200
A270P-316200
0.065
1.87
16
2-1/2"
A270P-304250
A270P-316250
0.065
2.37
16
3
A270P-304300
A270P-316300
0.065
2.87
16
4
A270P-304400
A270P-316400
0.083
3.834
14
Number of Tube Sticks Per Case
Size (Tube OD)
Piece Count
Total Footage
1"
15
300"
1-1/2"
15
300"
2"
15
300"
2-1/2"
15
300"
3"
10
200"
4"
5
100"
Additional Tube Specifications
Size (Tube OD)
Dimensions
Weight per Foot (lbs)
Burst Pressure (PSI)
Wall Thickness
Gauge
1/2"
0.065
16
0.30
10,833
3/4"
0.065
16
0.48
8,666
1"
0.065
16
0.66
9,750
1-1/2"
0.065
16
1.00
6,503
2"
0.065
16
1.35
4,875
2-1/2"
0.065
16
1.70
3,900
3"
0.065
16
2.05
3,248
4"
0.083
14
3.50
2,730
6"
0.109
14
5.29
1,820
Tube Tolerances
Part Number
O.D.
Wall
OD Tolerance
Wall Tolerance
Ovality Tolerance
Box Qty.
ASTM Standards
00507
0.5
0.065
+.002/-.008
+/-.008
*
300
A213/A270
00757
0.75
0.065
+.002/-.008
+/-.008
*
300
A213/A270
01007
1
0.065
+.002/-.008
+/-.008
*
300
A249/A269/A270
01507
1.5
0.065
+.002/-.008
+/-.008
*
300
A249/A269/A270
02007
2
0.065
+.002/-.011
+/-.008
*
300
A249/A269/A270
02507
2.5
0.065
+.002/-.011
+/-.008
*
300
A249/A269/A270
03007
3
0.065
+.003/-.012
+/-.008
*
200
A249/A269/A270
04007
4
0.083
+.003/-.015
+/-.010
*
100
A249/A269/A270
06007
6
0.109
+.030/-.030
+/-.010
*
20
A249/A269/A270



316L 304 Seamless Stainless Steel Pipe 300 Series Austenitic Stainless Steel Pipe Seamless Stainless Steel Tube






FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
