304 316L Stainless Steel Sanitary Y Type 3 Way Tee Pipe Fittings

  • 304 316L Stainless Steel Sanitary Y Type 3 Way Tee Pipe Fittings
  • 304 316L Stainless Steel Sanitary Y Type 3 Way Tee Pipe Fittings
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Application Fluid Pipe,Structure Pipe
Surface Annealed & Pickled, Bright Annealing, Polished Types Seamless
Thickness 0.5-100mm Outer Diameter 6-813mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample Provided,Free,Available Free Within 7days
Highlight

316L Stainless Steel Butt Weld Fittings

,

Sanitary Y Type Butt Weld Fittings

,

0.5mm 3 Way Tee Pipe Fittings
Leave a Message
Product Description

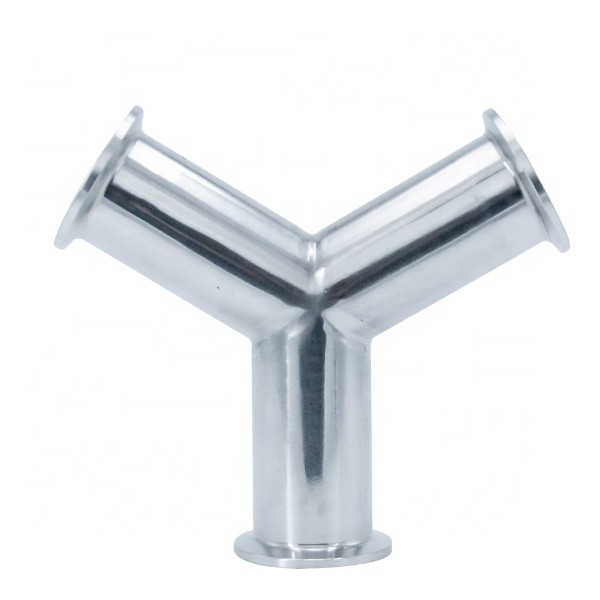

304/316L Stainless Steel Sanitary Y Type 3 way Tee Pipe Fittings

Overview
Quick Details
Technics:
Forged
Connection:
Welding
Shape:
Equal
Head Code:
Square
Standard:
DIN, SMS, RJT
Flow Medium Parts:
304,,316L (1.4301,1.4307,1.4404)
Connection Ends:
Welding
Continuous WorkindRg Temperature:
-20 ~ 135degree Celsius(EPDM)
Working Pressure:
PN 2.5-32MPa
Service:
OEM ODM
Surface:
Mirro or Mat polish
Down Diaphragm:
EPDM
Application:
dairy products, beer, food, beverage
Certification:
SMS, DIN














Supply Ability
Supply Ability
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos ,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by ety and resistance to shock in plywooden cases .
Port
Ningbo Port or Shanghai Port
Lead Time:
Quantity(Sets) 1 - 1 2 - 20 21 - 100 >100
Est. Time(days) 5 10 30 To be negotiated

image image

Technical Parameter

Material Stainless Steel
Grade 304, 304L, 316, 316L, etc
Conection Way bolt, welding, threaded, fern
Product Type Pipe Elbow, Pipe Tee, Pipe Bend, Pipe Reducer ,bends
Standard AAA, ISO, DIN,SMS,IDF.etc
Size 1"~6" & DN10-DN150
Surface Mirro or Mat polish
Pressure Grade PN 2.5-32MPa
Application dairy products, beer, food, beverage, pharmaceutical and other industrial areas of the cleaning and container storage tanks



FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
