Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter

Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter
Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter Good Price Hot Sale China Suppliers Micro Butt Weld Cross Fittings With 6mm Diameter
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: 15days->
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Standard:: DIN, ANSI, ISO, GB, JIS Application: Fluid Pipe,Structure Pipe
Surface: Annealed & Pickled, Bright Annealing, Polished Types:: Seamless
Thickness: 0.5-100mm Outer Diameter: 6-813mm
Material: Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample: Provided,Free,Available Free Within 7days
Highlight:

Annealed Fluid Pipe Butt Weld Fittings

,

Dia 6mm Butt Weld Fittings

,

SGS Fluid Pipe Butt Weld Fittings

Good price hot sale China suppliers micro butt weld cross fittings with 6 mm diameter

Overview
Quick Details
Place of Origin:
Shanghai, China
Model Number:
weld cross fitting
Type:
Cross
Material:
Stainless Steel, Stainless Steel 316
Technics:
Forged
Connection:
Welding, butt welding
Shape:
cross
Head Code:
Square
Suitable gas:
high purity
Product name:
butt weld cross
Size:
1/4 to 2 inch
Application:
semiconductor
Surface treatment:
Polishing
Usage:
gas pipe line
End connection:
welding



























Packaging & Delivery

Selling Units:
Single item
Single package
20X16X17 cm
Package Type:
NAI-LOK Box

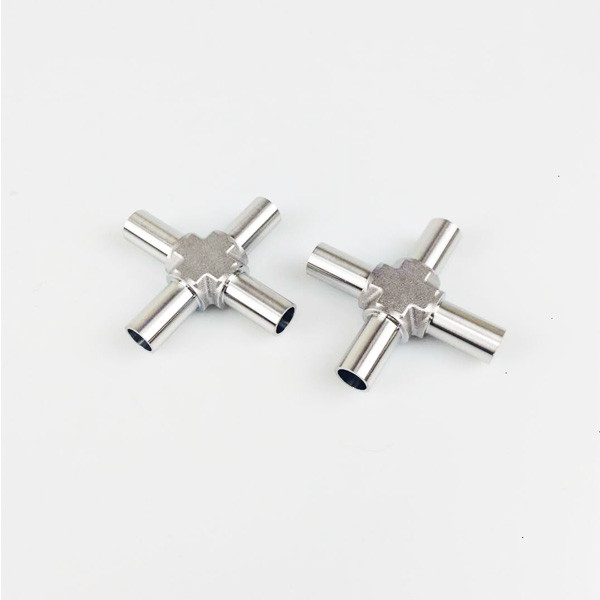

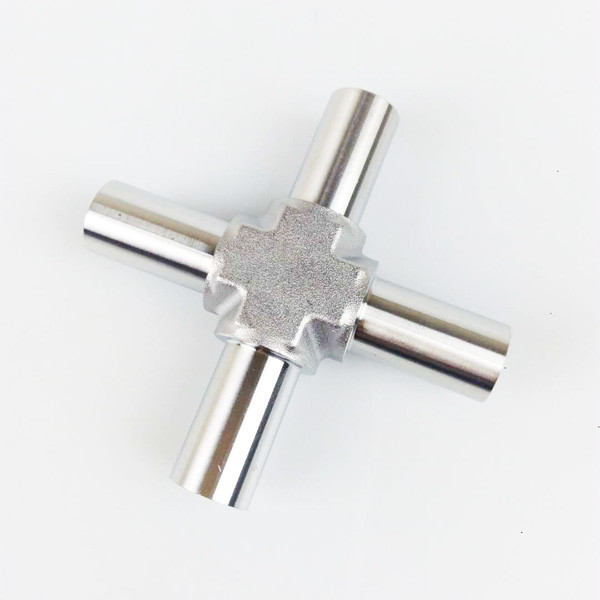

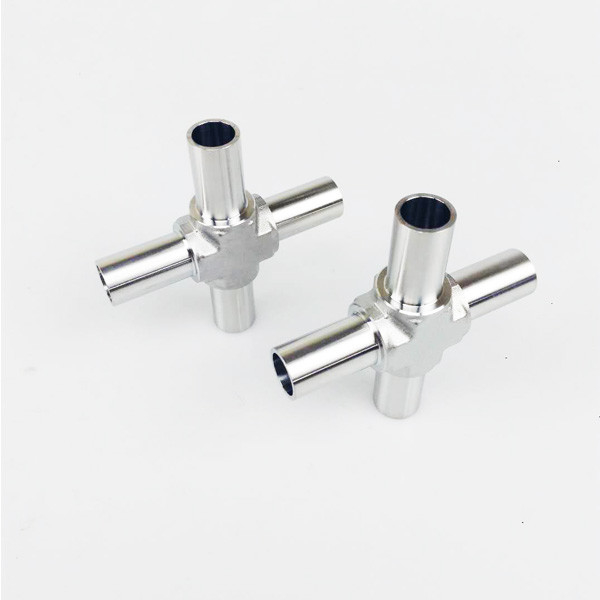

Picture Example:

Product Description

Features:

1. 1/4 to 2 inch and 15A to 300A

2. Mechanically polished on the ID to 25A

3. Final DI water rinse and oven dried

4. Single polyethylene bag packaging with Mylar lined polethylene cap

5. Material test reports with chemistry and mechanical properties.

6. Temperature rating: -40F to 350F at 100psi



Specifications:

China suppliers micro butt weld cross fittings with 6 mm diameter


Size D (mm)



 T (mm) L (mm) A (mm) B (mm) F (mm)
1/4 inch 6.35 1.00 50.00 25.00 19.05 11.20
3/8 inch 9.53 1.00 50.00 25.00 19.05 11.20
1/2 inch 12.7 1.24 58.00 29.00 19.05 17.50
3/4 inch 19.05 1.65 63.00 31.50 19.05 25.00
1 inch 25.4 1.65 68.00 34.00 19.05 29.90

China suppliers micro butt weld cross fittings with 6 mm diameterChina suppliers micro butt weld cross fittings with 6 mm diameterChina suppliers micro butt weld cross fittings with 6 mm diameter



China suppliers micro butt weld cross fittings with 6 mm diameter


FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
