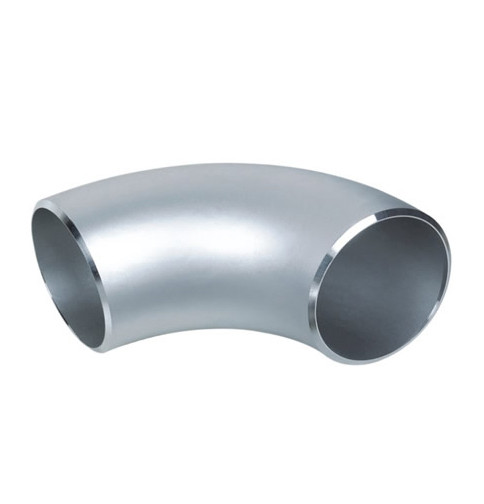

Stainless Steel Fittings SUS304 316 Stainless Steel Butt Weld Fittings BW LR Long Radius 90 Degree

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	1.4835 Stainless Steel Seamless Pipe

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	15days->
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Standard::	DIN, ANSI, ISO, GB, JIS	Application:	Fluid Pipe,Structure Pipe
Surface:	Annealed & Pickled, Bright Annealing, Polished	Types::	Seamless
Thickness:	0.5-100mm	Outer Diameter:	6-813mm
Material:	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Sample:	Provided,Free,Available Free Within 7days
Highlight:	SCH10 SS Butt Weld Fittings , SUS304 Butt Weld Fittings , BW LR Butt Weld Fittings

Stainless steel fittings SUS 304 316 Stainless steel butt weld fittings BW LR long radius 90 degree

Overview

Quick Details

Model Number:: 90 degree stainless steel elbow

Technics:: Forged

Connection:: Welding

Shape:: Equal

Head Code:: Square

Type:: Elbow, Butt weld end seamless pipe elbow

Product name:: 90 degree stainless steel elbow

Size:: 1/2" to 20"

Thickness:: SCH5-SCH160

Standard:: ASME B16.9, DIN 2605, JIS, GB/T12459, GB/T13401

Application:: Chemical, Medical, Electricity, Petroleum,..etc

Package:: Plastic bag+ Wooden case, Customized

Surface:: Polishing, Sand rolling,..etc

MOQ:: 10 PCS

Brand:: Nngbo Danyal Pipelines

Supply Ability

Supply Ability: 50 Ton/Tons per Month

Packaging & Delivery

Packaging Details: - Plastic bags , plastic caps, wooden case
-Carton , or customized

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	5	To be negotiated

Stainless Steel Elbow

Product Name	Stainless Steel Elbow
Size	1/2"~20" (Seamless), 1/2"~48" (Welded)
Thickness	STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc
Standard	ANSI B16.9, ASME, JIS, DIN, GOST, GB
Material	ASTM	Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6
		Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc
		Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5, ASTM A420 WPL6, WPL3
	DIN	Carbon Steel:St37.0 , St35.8, St45.8
		Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571
		Alloy Steel:1.7335, 1.7380, 1.0488(1.0566)
	JIS	Carbon Steel: PG370, PT410
		Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc
		Alloy Steel: PA22, PA23, P24, PA25, PL380
	GB	#10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo
Degree	15°, 30°, 60°, 90°, 180°
Radius	LR: Long radius , R=1.5D SR: Short radius, R=1D Various radius: 2.5D, 3D, 5D, 10D, bend
Ends	Bevel end, butt weld
Applications	Petrochemical industry Pharmaceutic industry Power plant Water treament Construction,...etc
Packing	Seaworthy Packing Customers' request plastic bags + wooden or olywood case or pallet carton
Advantage	- Provide Samples - Ready Stock - Fast Delivery - Available all sizes - High Quality - Competitive Price

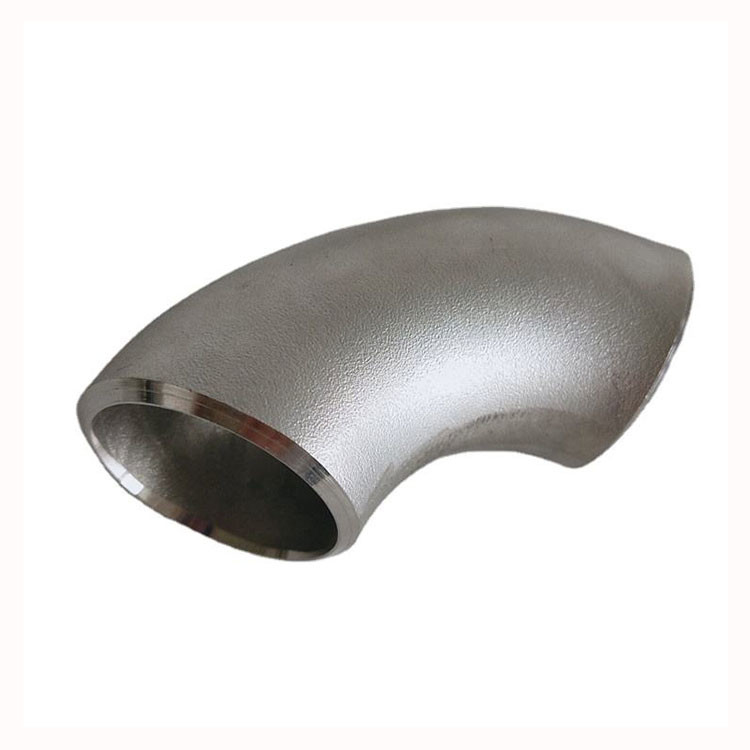

Stainless Steel Fittings SUS304 316 Stainless Steel Butt Weld Fittings BW LR Long Radius 90 Degree 2

Stainless Steel Fittings SUS304 316 Stainless Steel Butt Weld Fittings BW LR Long Radius 90 Degree 3

Stainless Steel Fittings SUS304 316 Stainless Steel Butt Weld Fittings BW LR Long Radius 90 Degree 4

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
