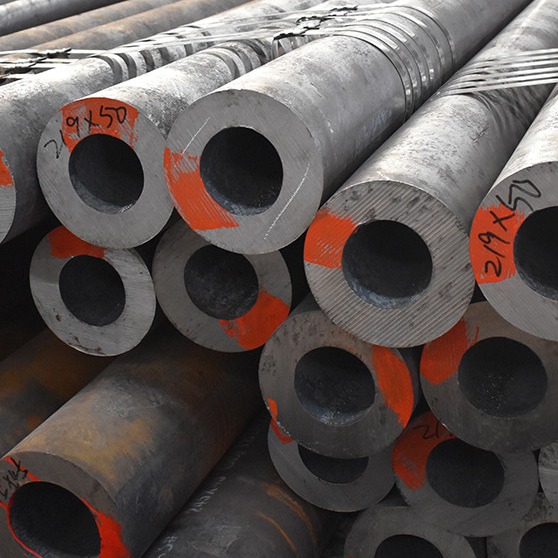

High Pressure Corten Steel Pipe 09CrCuSb Seamless Boiler Tube

  • High Pressure Corten Steel Pipe 09CrCuSb Seamless Boiler Tube
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Application Fluid Pipe,Structure Pipe
Surface： Annealed & Pickled, Bright Annealing, Polished Thickness 0.5-100mm
Outer Diameter 6-813mm Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper
Sample Provided,Free,Available Free Within 7days
Highlight

ASTM Seamless Boiler Tube

,

09CrCuSb Seamless Boiler Tube
Leave a Message
Product Description

China factory manufacturing high pressure corten steel pipe 09CrCuSb seamless boiler tube

Overview
Quick Details
Application:
Structure Pipe
Alloy Or Not:
Is Alloy
Section Shape:
Round
Special Pipe:
09CrCuSb/ND corten steel pipe
Outer Diameter:
10.3 - 610 mm
Thickness:
5 - 60 mm
Standard:
API, ASTM, bs, DIN, GB, JIS, API 5CT, API 5L, ASTM A106-2006, ANSI B36.10M-2004, BS 3059-2, BS EN10217, DIN EN 10208-1-1998, DIN EN 10025, GB/T8162, Gb/t8163, GB 5130, JIS G3454-2007, JIS G3446-2004, JIS G3429
Grade:
45#, 16mn, API J55, API K55, API N80, 12Cr1MoV, 10CRMO910, 34CrMo4, 13CrMo45, 12CrMo195, 30CrMo, 15Mo3, Q345, ST37, St52.4, 10#-45#, 16mn, API J55-API P110, Cr-Mo alloy, MO, Q195-Q345, ST35-ST52
Surface Treatment:
normalizing
Tolerance:
±1%
Processing Service:
Bending, Welding, Decoiling, Punching, Cutting
Secondary Or Not:
Non-secondary
Product name:
corten steel pipe 09CrCuSb seamless boiler pipe
Surface:
normalizing
Material:
09CrCuSb/ND,corten steel pipe
Shape:
round
Length:
1-12m
Keyword:
09CrCuSb seamless pipe,ND steel pipe,corten steel pipe
Technique:
Hot Rolled
Certification:
ce
Type:
09CrCuSb/ND seamless steel pipe corten steel pipe
























Supply Ability
Supply Ability
2500000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
in bundles or woodencase
Port
tianjin/shanghai
Lead Time:
Quantity(Tons) 1 - 27 28 - 100 101 - 300 >300
Est. Time(days) 15 20 35 To be negotiated

1.Material standard

  1. GB/150.2-2011
  2. NB/T47019-2011
  3. SH/T3096-2012

2.Mechanical properties

C ≤0.12 Cr 0.70-1.10
Si 0.20-0.40 Cu 0.25-0.45
Mn 0.35-0.65 Sb 0.04-0.10
P ≤0.030 S ≤0.020



3.Mechanical properties

Thickness/mm Tensile Rm(Mpa) Yield Rel(Mpa) Elongation(A %)
≤8 390-550 ≥245 ≥25

4.Corrosion resistance

In the medium temperature and concentration of sulfuric acid, Nd steel passivation occurs due to dissolution, the surface of the steel formed a layer rich in Cu,Cr,Sb and other alloy elements of the passivation layer, and has a high sulfuric acid corrosion resistance.



♦The Corrosion Rate Comparison of ND Steel with Other Steels (70°C-50%H2SO4 Solution)

Grade mg/(cm2h) mulriple
ND 7.3 1
A3 103.5 14.18
Cast 63 8.63
CR1A 13.4 1.84
321 21.7 2.97
S-TEN 27.4 3.75

Section :Round

OD:10.3-813mm

WT:1.24-25.4mm

Length:1-12M

(1-5.99M fit in 20ft container;6-11.99M fit in 40ft container)

End Protection:Plastic caps

Technique:Hot Rolled

Surface:Black,Anti-Corrosion coating.etc.

Payment term:FOB;CFR;CIF

TT

high pressure corten steel pipe 09CrCuSb seamless boiler tubehigh pressure corten steel pipe 09CrCuSb seamless boiler tube





FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
