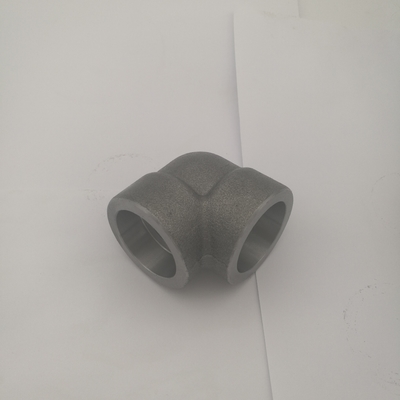

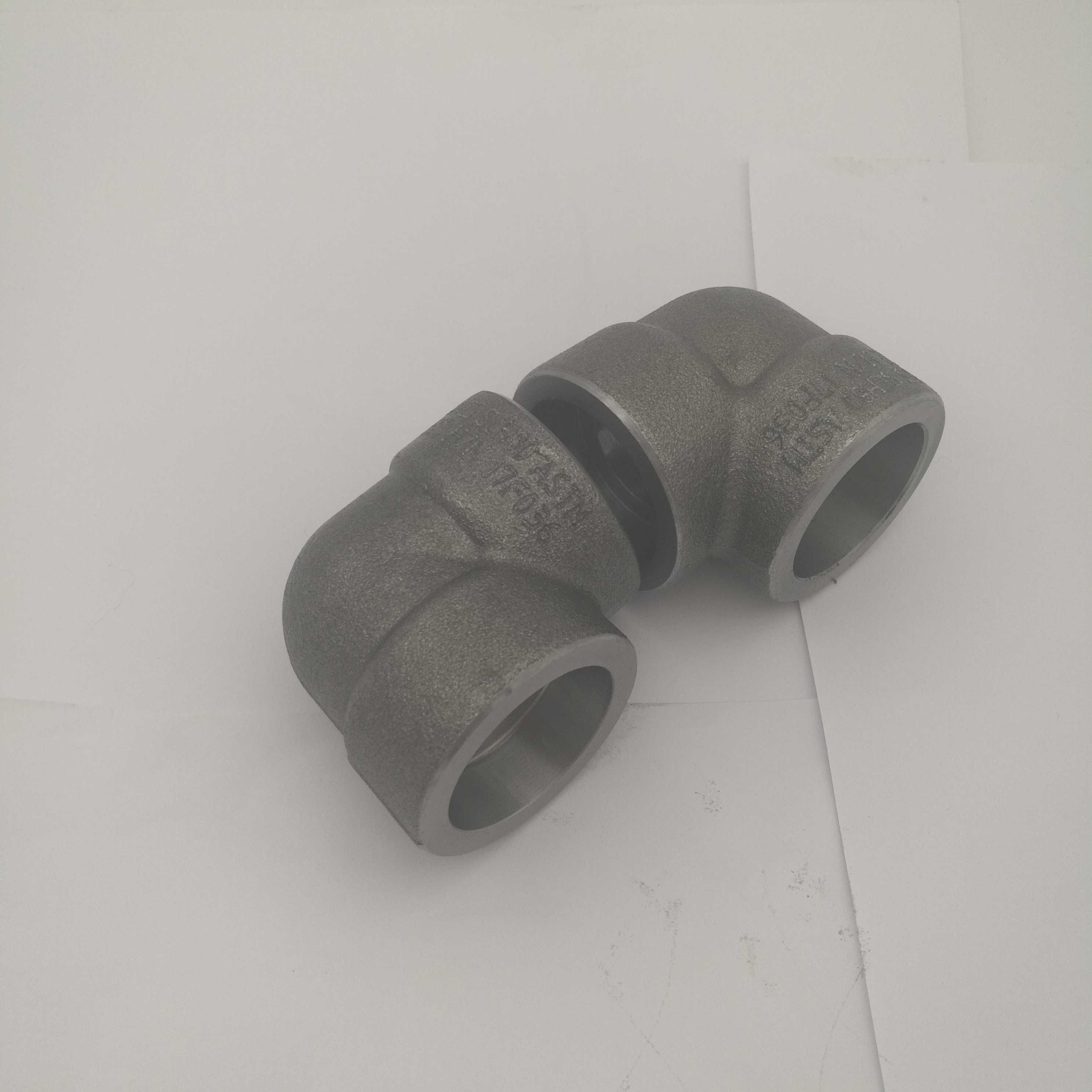

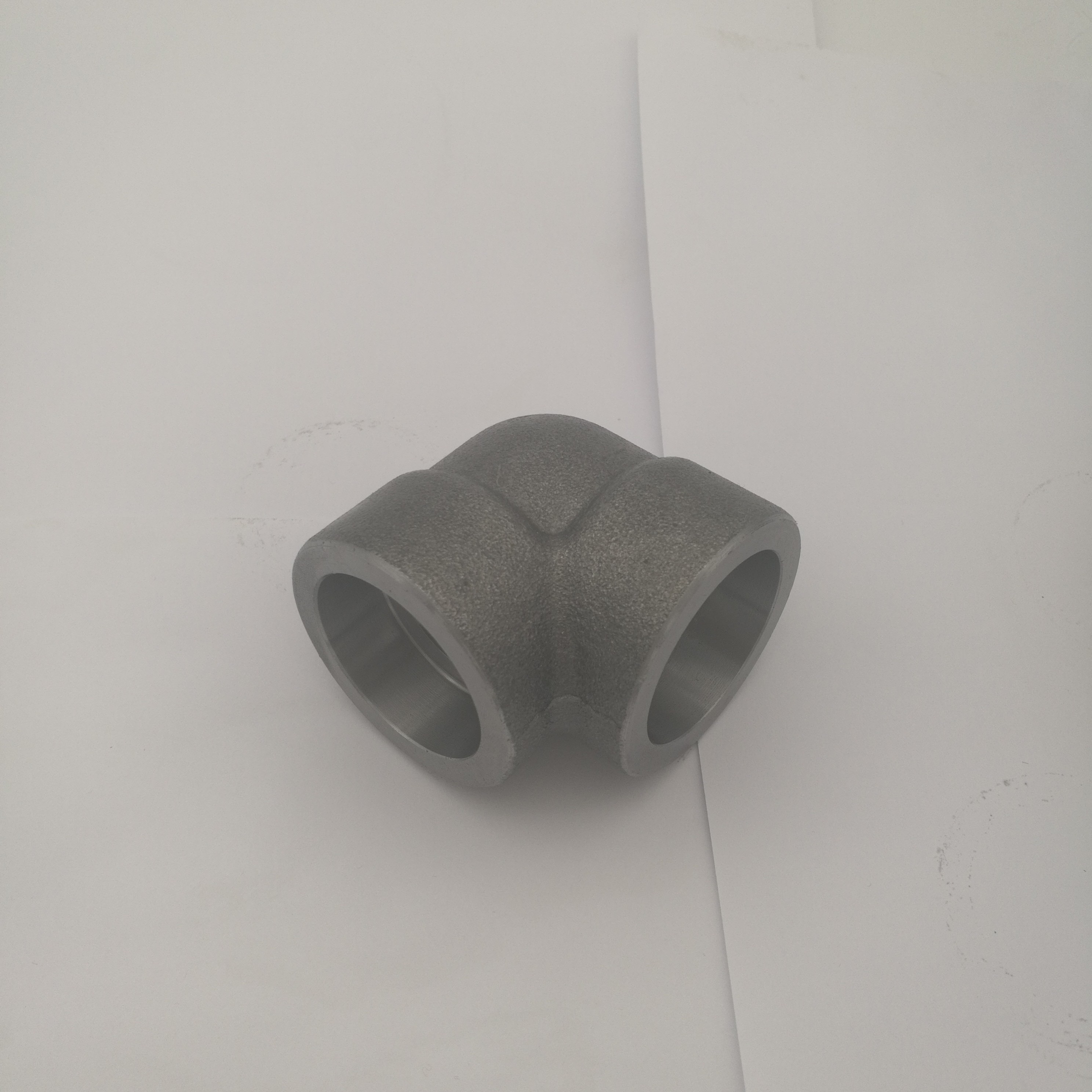

Socket Welding Elbow Alloy Steel 3000# A182 F22 90 Degree Elbow Alloy Steel Fittings
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | Certification TUV, DNV, KR, NK, ABS, GL, LR and CCS |
| Model Number | Elbow |
| Minimum Order Quantity | 1 PC |
| Price | USD Depending on quantity |
| Packaging Details | PLY-WOODEN CASE OR PALLET |
| Delivery Time | 10-100 days depending on quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000 pcs per month |
Product Details
| Thickness | Sch5-Sch160 XXS,STD,XS, SGP | Size | 1/2-48 Inch |
|---|---|---|---|
| Third Party Inspection | BV, SGS | DN | 15-2400 |
| Shape | Equal | Technics | Seamless |
| Type | Elbow,welding | Application | Connect Pipes,oil Pipelines,Food,Industry,Fire |
| Highlight | Sch40 Stainless Steel Elbow,AISI Seamless Stainless Steel Elbow,Welded 90 Degree Stainless Steel Elbow |
||
Product Description
Socket Welding Elbow Alloy Steel 3000# A182 F22 90 Degree Elbow Alloy Steel Fittings
304 is a universal stainless steel, which is widely used in the manufacture of equipment and parts requiring good comprehensive properties (corrosion resistance and formability). To maintain the corrosion resistance inherent in stainless steel, the steel must contain at least 18% chromium and at least 8% nickel
| Material: | StainlessSteel 304,316L,310,321H,347 | Technics: | cold forming | Type: | Elbow,Tee,Reducer,C | Elbow,Tee,Reducer,Cap,Flange,Pipe | ||
| Place of Origin: | Shanghai,China (Mainland) | Model Number: |
|
sch10s ~ sch160s | Brand Name: | TOBO | sinco guotai | |
| Connection: | Welding | Shape: | Equal | Head Code: | Round | round | ||
| Certs: | ISO,CE | Surface Treatment: |
|
sand blasting,Sand Rolling, Sand | Technique: | Cold drawn | Cold Drawn | |
| Purpose: | Industrial | YES OR Alloy: | ALLOY | Thickness: | 1-60mm | 1 - 60 | ||
| Outer Diameter: | 6 - 800 mm | Special Desgin: |
|
Available | ||||
1.1.1 Packaging & Delivery
| Packaging Details: |
|
1.with plastic cap to protect both ends for S 32760 Elbow 2.and plastic bag wrapped outside the pipe,for S 32760 Elbow 3.then bundles to be covered by polythene& strapped securely for S 32760 Elbow |
|
| Delivery Detail: | 10-30days |
1.1.2 Specifications
ASTM S 32760 elbow
1 Cold-Drawn,cold rolling
2. Material:super duplex a790 S 32760
3. High quality
1.1.3 A790 S 32760 Elbow
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce pipes with special specifications according to customers’ requirements;
1. Product Item No.: 010fittings-Cosco Steel
2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female
3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc
We can also produce other specifications according to customers' requirements.
4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,
5. 304N,304LN,302, 301,201,202,904L,Duplex,etc
6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91
7. Working pressure: -20° C~150° C
8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.
9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow
10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc
11. Type:15 ° ,30 ° ,45 ° ,60 ° ,90 ° , 180 ° ,male and female
12. Outside Diameter: 1/8"-100" (6-2500mm)
13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb
14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc
15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,etc
16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
17. Packing: Wooden box or wooden pallet.
18. H.S Code: 73072300
19. Material:
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
|
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10, |
||
| Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB | 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
