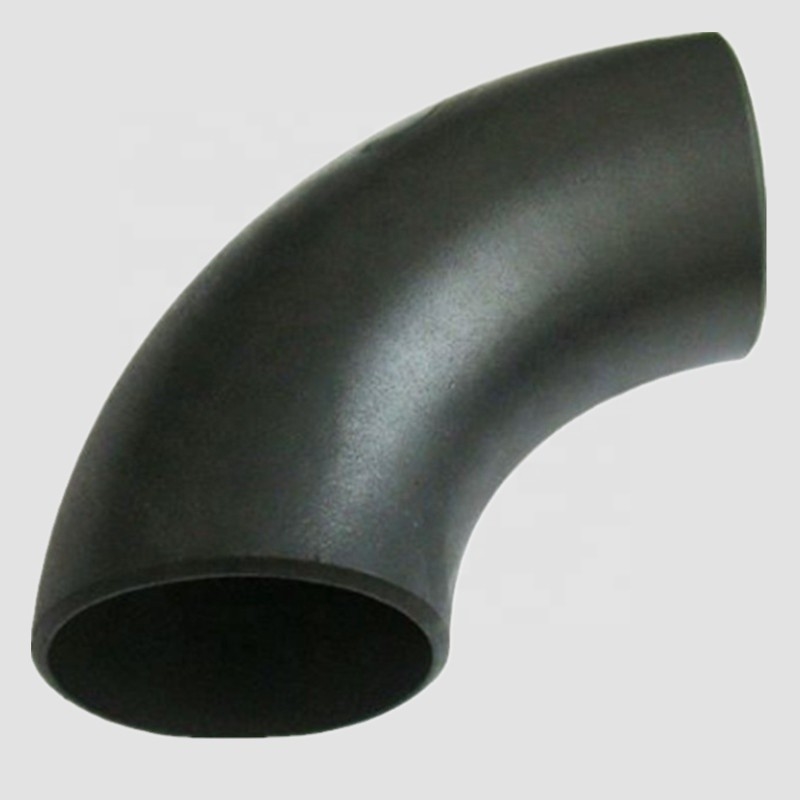

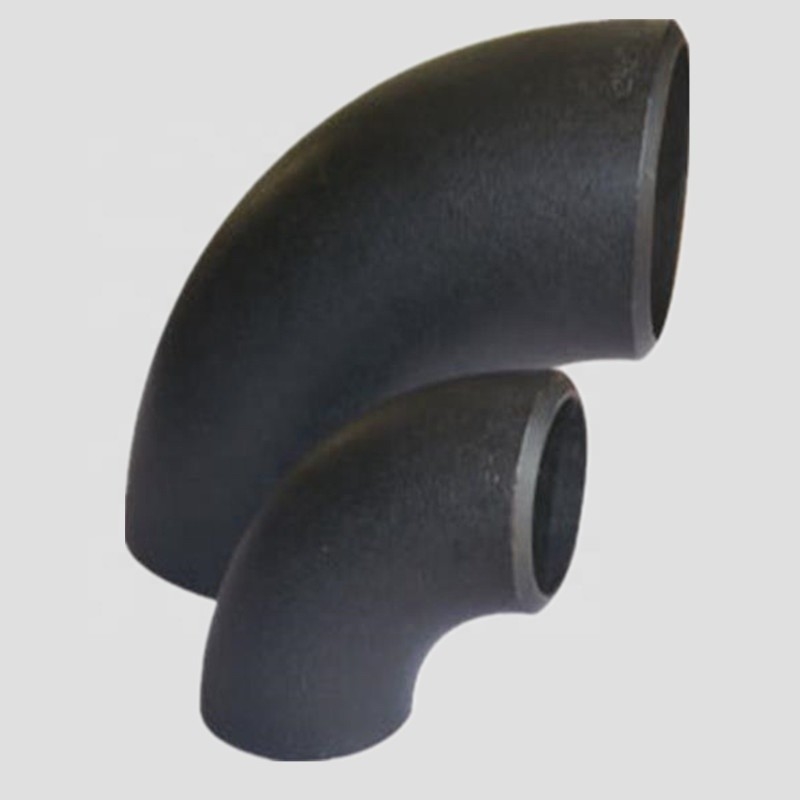

Connector pipe 90 degree elbow fittngs carbon alloy steel S60 seamless

  • Connector pipe 90 degree elbow fittngs carbon alloy steel S60 seamless
  • Connector pipe 90 degree elbow fittngs carbon alloy steel S60 seamless
Brand Name TOBO
Certification CE/SGS/ISO
Minimum Order Quantity 1 / M
Price USD 1.2/M
Payment Terms T/T
Supply Ability 1000 M / Day
Product Details
Length 6 Meters Or Customized Grade 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
Technique Cold Rolled Hot Rolled,Cold Drawn,Seamless/Welded Steel Grade Stainless Steel 304/316L,X5CrNi18-20
Application Oil And Gas Type Seamless,Welded,round Pipe / Tube
Surface Morror / Satin Certification ISO,SGS,BV,ISO & SGS,ISO/CE/SGS
Highlight

WPB A234 Stainless Steel Pipe Cap

,

ASME B16.9 Stainless Steel Pipe Cap

,

Sch10s Stainless Steel Pipe Cap
Leave a Message
Product Description

Connector pipe 90 degree elbow fittngs carbon alloy steel S60 seamless


Elbow Type Stainless steel elbow ,45/90/180 welded/seamless elbow; return elbow
Standard ASME/ANSI B16.9
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.





4550;

347H/UNS S34709/1.4912;

348/UNS S34800;
Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;
Duplex steel

ASTM A182 F51/S31803/1.4462;

ASTM A182 F53/S2507/S32750/1.4401;

ASTM A182 F55/S32760/1.4501/Zeron 100;

2205/F60/S32205;

ASTM A182 F44/S31254/254SMO/1.4547;

17-4PH/S17400/1.4542/SUS630/AISI630;

F904L/NO8904/1.4539;

725LN/310MoLN/S31050/1.4466

253MA/S30815/1.4835;
Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Welcome to contact us.









Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Cap Length
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625   1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438   1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00





Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00




ELBOW 90 LONG RADIUS SS ASTM A815 GR S32750 B16.19 SUPERDUPLEX WELDING END TOP B16.25 SCH 10S 2"ELBOW 90 LONG RADIUS SS ASTM A815 GR S32750 B16.19 SUPERDUPLEX WELDING END TOP B16.25 SCH 10S 2"

Process flow

ELBOW 90 LONG RADIUS SS ASTM A815 GR S32750 B16.19 SUPERDUPLEX WELDING END TOP B16.25 SCH 10S 2"



                                                                    FAQ



1. Are you trading company or manufacturer ?

We are manufacturer ,You can see the Alibaba certification.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
