S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE

S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE
S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: 15days->
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Standard:: DIN, ANSI, ISO, GB, JIS Sample: Provided,Free,Available Free Within 7days
Application: Fluid Pipe,Structure Pipe Outer Diameter: 6-813mm
Surface: Annealed & Pickled, Bright Annealing, Polished Thickness: 0.5-100mm
Material: Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Types:: Seamless
Highlight:

S316 Butt Weld Pipe Fittings

,

Flange Stainless Steel Buttweld Fittings

,

Seamless Butt Weld Tube Fittings

S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE

Overview

Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Tobo
Model Number:
type-35 flange
Standard:
ANSI, DIN, ISO, ASME
Product name:
welding ring EN 1092-1 Type 35
Material:
Stainless Steel 304/316/duplex stainless steel
Pressure:
PN6-PN40
Surface treatment:
Sandblasting/plain/polish
Size:
DN10-DN1400
Flange Type:
WELDING RING
Keyword:
EN 1092-1:2007 TYPE 35-PN 10 FLANGE
Process:
Forging+machining+heating Treatment

























Packaging & Delivery

Selling Units:
Single item
Single package size:
80X30X30 cm
Single gross weight:
20.000 kg
Package Type:
Packing	In wooden case, pallets or as per customers'requirement
Delivery	7-25 days after the PO

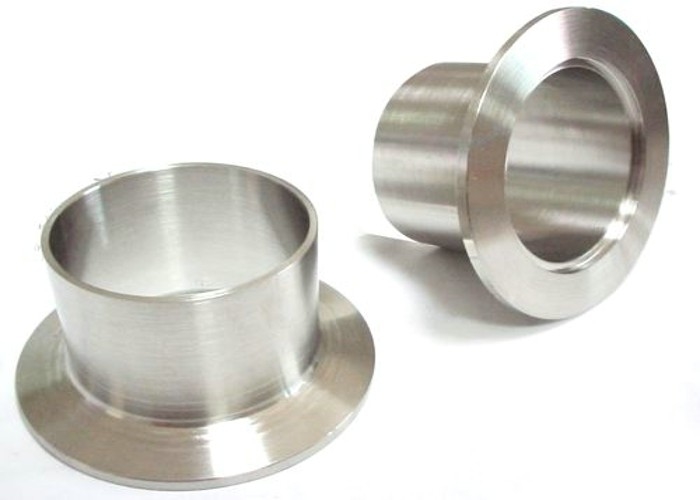

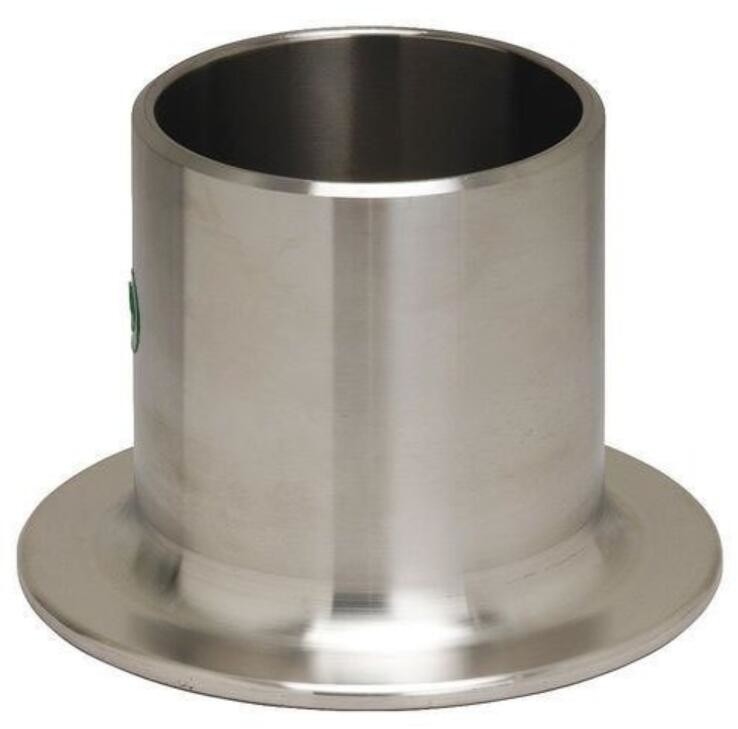

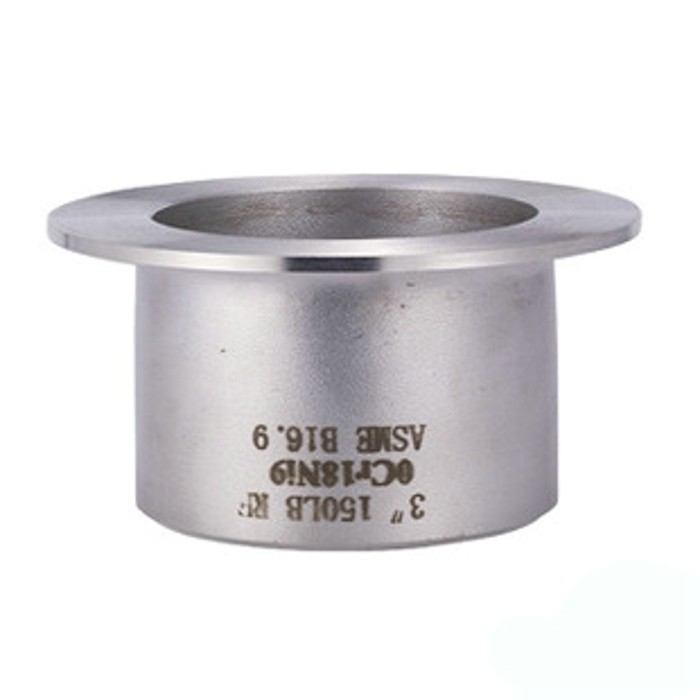

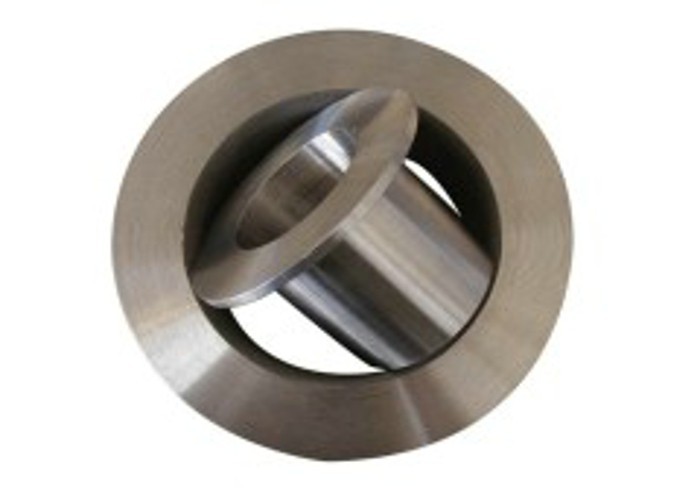

Picture Example:


1.4404 / UNS S31603 MATERIAL WELDING RING WITH COLLAR EN 1092-1:2007 TYPE 35-PN 10 FLANGE

Standard Reference
  • DIN 2526
  • DIN 2500
  • DIN 2519
  • DIN 2501
Pressure Rate 150#, 300#, 600#, 900#, 1500#, 2500#
Value-Added Services Oil Black Paint, Antirust Paint, Cold, and Hot Dip Galvanized, Yellow Transparent, Zinc Blind
Dimensions EN 1092-1 Type 35
Material P250GH, 1.4541, S235JRG2, 1.4571
Techniques of Production Machined, Forged, and Heat Treated
Equipments Bending Machine, Press Machine, Sand-Blasting machine, Pushing Machine, Electric Bevelling Machine, etc.

SS316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE

Dimensions Of EN 1092-1 Type 35 Welding Ring





DN A d1 H4 F S Sp kg
200 219,10 268 62 11 6 2,6 3,90
250 273,00 320 68 12 8 3,2 5,80
300 323,90 370 68 12 8 3,2 6,80
350 355,60 430 68 13 8 3,2 9,50
400 406,40 482 72 14 8 3,2 11,60
450 457,00 532 72 15 8 3,6 15,00
500 508,00 585 75 16 8 4 15,90
600 610,00 685 80 18 10 5 23,00
700 711,00 800 80 20 10 6,3 30,90
800 813,00 905 90 20 12 6,3 41,50
900 914,00 1005 95 22 12 8 50,00
1000 1.016,00 1110 95 24 12 8 58,90
1200 1.219,00 1330 115 26 16 10 93,20



One Of The Top Welding Neck Flange EN 1092-1 Type 35 Manufacturers In China, Check Availability Welding Ring EN 1092-1 Type 35.

SS316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE

What Is EN 1092-1 Type 35 Flange

We manufacture many different types of flanges in this specification. The Flange EN 1092-1 Type 35 can be a slip on, welded neck, blind or lap joint in type. The EN 1092-1 Type 35 Slip On Flange can be of raised face or flat face depending on the application requirement and we produce all of them. The slip on flanges are used to make the fitting quickly by allowing the pipes to slip through them and then welding them in the needed point. The EN 1092-1 Type 35 Blind Flange is used to end the pipeline with a strong closure. Please contact us for further product details and costs.





Company Information

S316/1.4404/UNS S31603 MATERIAL WELDING RING WITH COLLAR PN10 EN1092-1:2007 TYPE 35 FLANGE 3


FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
