REDUCING BARRED TEE 600# DN250 X DN200 SCH 160 X SCH 80S ASTM A403 WP 316L

  • REDUCING BARRED TEE 600# DN250 X DN200 SCH 160 X SCH 80S ASTM A403 WP 316L
  • REDUCING BARRED TEE 600# DN250 X DN200 SCH 160 X SCH 80S ASTM A403 WP 316L
Place of Origin China
Brand Name TOBO
Certification ISO
Model Number WP 316L
Minimum Order Quantity 1 PCS
Price 1.2USD
Packaging Details Plywood wooden cases
Delivery Time 7work days
Payment Terms T/T, Western Union,
Supply Ability 30000PCS
Product Details
Name BARRED TEE Material WP 316L
Standard ASTM A815 Size DN250 X DN200
Thickness SCH 160 X SCH 80S MOQ 1PCS
Highlight

ASTM Barred Tee Pipeline

,

Buttweld Barred Tee Pipeline

,

Welded Steel Barred Tee Fitting
Leave a Message
Product Description

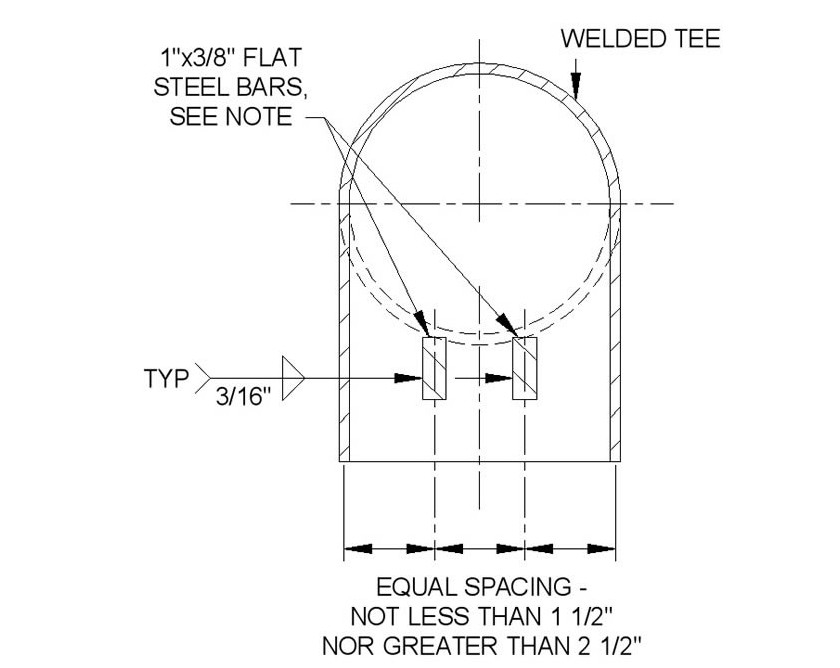

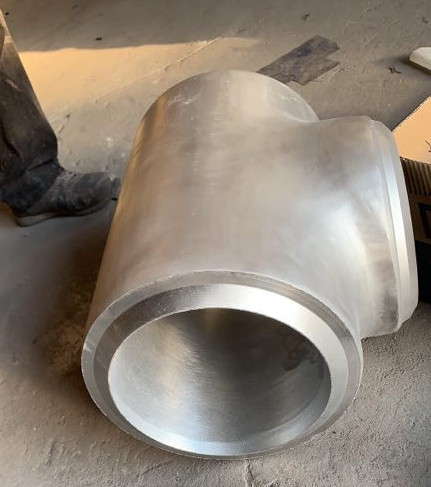

REDUCING BARRED TEE 600# DN250 X DN200 SCH 160 X SCH 80S ASTM A403 WP 316L



The ends of all buttweld fittings are bevelled, exceeding wall thickness 4 mm for austenitic stainless steel, or 5 mm for ferritic stainless steel. The shape of the bevel depending upon the actual wall thickness. This bevelled ends are needed to be able to make a "Butt weld".

Welding Bevel acc.to ASME / ANSI B16.9 and ASME / ANSI B16.28

BARRED TEES SPECIFICATIONS :

Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43.

Size : Seamless ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)

Form : Pipe Tee, Equal Tee, Unequal Tee, Lateral Tee, Straight Tee, Reducer Tee, Seamless Tee, Welded Tee

Type : Seamless / Welded / Fabricated



BRAIDED TEES MATERIAL & GRADES :

Stainless Steel Barred Tees :

ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L

Carbon Steel Barred Tees :

ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70

Alloy Steel Barred Tees :

ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91

Nickel Alloy Barred Tees :

ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

Duplex & Super Duplex Steel Barred Tees :

ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Copper Nickel Barred Tees :

CuNi10Fe1Mn, CuNi30Mn1Fe.




ParameterTeeBarred Tee
DefinitionStandard Pipe FittingA special type of piping component
ManufacturingGenerally by Extrusion or forgingMostly Fabricated
UseUsed in both piping and pipeline engineeringused in pipeline engineering near the pig launcher/receiver
Design Code / StandardASME B 16.9/MSS SP 75Shell DEP 31.40.10.13-Gen or ISO 15590-2
Production QuantityLarge scale in bulkSelect small quantities (custom made)
CostCheaperCostlier than normal Tee


BRAIDED TEES MATERIAL & GRADES :
Stainless Steel Barred Tees :
ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L
Carbon Steel Barred Tees :
ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70
Alloy Steel Barred Tees :
ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91
Nickel Alloy Barred Tees :
ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)
Duplex & Super Duplex Steel Barred Tees :
ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462


TypeANSI B16.9 ASTM A403 WP316L Equal Tee
SizeSeamless 1/2" To 48" Welded To 72"
Wall thicknessSch5S-Sch160, XS,XXS
StandardsANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, etc

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc

Alloy Steel: ASTM A234 WP1, etc Low Temperature: ASTM A420 WPL 1, etc

Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760/S32550

Surface treatmentSand Rolling, Sand Blasting ,Acid Cleaning.
PackingWooden case, pallet or as customers’ requirement
Applications

Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

























REDUCING BARRED TEE 600# DN250 X DN200 SCH 160 X SCH 80S ASTM A403 WP 316L
