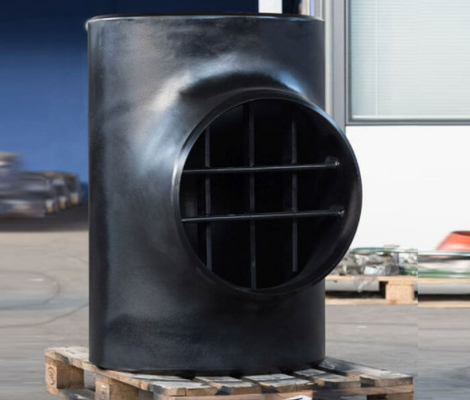

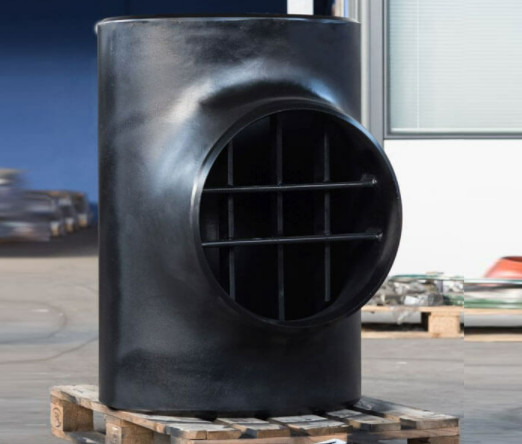

BARRED TEE REDUCING ASTM A860 WPHY 65 10X8 IN 1500#/PIPING CLASS

  • BARRED TEE REDUCING ASTM A860 WPHY 65 10X8 IN 1500#/PIPING CLASS
  • BARRED TEE REDUCING ASTM A860 WPHY 65 10X8 IN 1500#/PIPING CLASS
Place of Origin China
Brand Name TOBO
Certification ISO
Model Number WPHY 65
Minimum Order Quantity 1 PCS
Price 1.2USD
Packaging Details Plywood wooden cases
Delivery Time 7work days
Payment Terms T/T, Western Union,
Supply Ability 30000PCS
Product Details
Name BARRED TEE Material WPHY 65
Standard ASTM A860 Size 10X8 IN
Thickness 1500#/PIPING CLASS MOQ 1PCS
Highlight

Alloy Steel Seamless Pipe Tee

,

WPHY 65 Carbon Steel Equal Tee

,

A860 Carbon Steel Equal Tee
Leave a Message
Product Description

BARRED TEE REDUCING ASTM A860 WPHY 65 10X8 IN 1500#/PIPING CLASS



BRAIDED TEES MATERIAL & GRADES :

Stainless Steel Barred Tees :

ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L

Carbon Steel Barred Tees :

ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70

Alloy Steel Barred Tees :

ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91

Nickel Alloy Barred Tees :

ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)

Duplex & Super Duplex Steel Barred Tees :

ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Copper Nickel Barred Tees :

CuNi10Fe1Mn, CuNi30Mn1Fe.

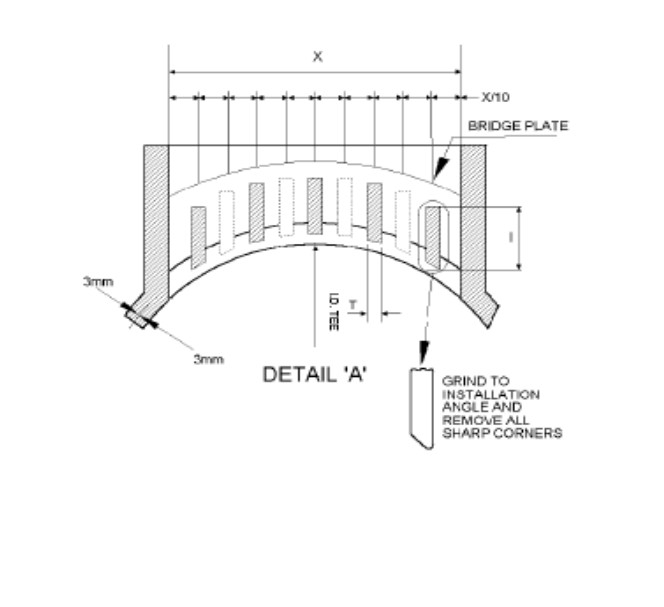

Parameter Tee Barred Tee
Definition Standard Pipe Fitting A special type of piping component
Manufacturing Generally by Extrusion or forging Mostly Fabricated
Use Used in both piping and pipeline engineering used in pipeline engineering near the pig launcher/receiver
Design Code / Standard ASME B 16.9/MSS SP 75 Shell DEP 31.40.10.13-Gen or ISO 15590-2
Production Quantity Large scale in bulk Select small quantities (custom made)
Cost Cheaper Costlier than normal Tee







Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Outside Diameter Seamless Pipe Tee ( 1/2"～24"), ERW / Welded / Fabricated Pipe Tee (1/2"～48")
Types Equal Tees, Reducing Tees
Export to Iran, Ukraine, USA, Spain, India, Saudi Arabia, Egypt, Ireland, Brazil, Indonesia, Korea, Oman, Dubai, Singapore, Canada, Thailand, Peru, etc
Wall Thickness 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services Electro Polish, Sand Blasting, Hot Dipped Galvanizing, Epoxy & FBE Coating, Threading, Soldering


BRAIDED TEES MATERIAL & GRADES :
Stainless Steel Barred Tees :
ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L
Carbon Steel Barred Tees :
ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70
Alloy Steel Barred Tees :
ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91
Nickel Alloy Barred Tees :
ASTM / ASME SB 336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20 / 20 CB 3, UNS 8825 Inconel (825), UNS 6600 (Inconel 600), UNS 6601 ( Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C 276)
Duplex & Super Duplex Steel Barred Tees :
ASTM A815, ASME SA815 UNS NO S31803, S32205. Werkstoff No. 1.4462



Specification Chart of WPHY 65 Fittings

size Seamless Fittings: 1/2″ – 10″
Welded Fittings: 1/2″ – 48″
Dimensions ASME/ANSI B16.9, MSS-SP-43, BS4504, ASME B16.28, BS4504, BS1560, BS10
Elbows Manufacturer Angle : 1.5D, 2.0D, 2.5D, 30deg, 45 deg, 180 deg, 1.0D, 22.5 deg, 90 deg, 5D, 6D, 3D, 4D, 7D-40D .
Standard:MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, ASME B16.28, BS, GB, ASME B16.25, ASME B16.9, ISO
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills European, Ukraine, USA, Korean, Japanese, Indian, Russian
Hydrostatic Test Not required
Export to Noida, Vadodara, Hyderabad, Melbourne, Perth, Ranchi, Chennai, Nagpur, Jamshedpur, Ahvaz, Santiago, Coimbatore, Courbevoie, Bengaluru, Rajkot, Khobar, Ludhiana, Ernakulam, Manama, Bangalore, Lagos, London, Janeiro, Dammam, Ludhiana, Ankara, Riyadh, Kuwait, Howrah, Muscat, Kolkata, Baroda, Abu Dhabi, Gimhae-si, Indore, Tehran, Montreal, Mumbai, Tau, Istanbul, Bogota, Calgary, Gurgaon, Thiruvananthapuram Ahmedabad, Kanpur, Sydney, Pimpri-Chinchwad, Surat, Mexico, New Delhi, Port-of-Spain, Gujarat, Caracas,
Thickness SCH30, STD SCH40, SCH10, SCH60, XS, SCH 80, SCH20, SCH 100, SCH 120, SCH 140, SCH 160, XXS
Type DN15-DN1200
Connection Welding
Surface Coatings Black Painted, Varnished, Epoxy Coated, Galvanized
Manufacturing process Press, Push, Forge, Cast, etc.
Surface treatment Sand Rolling, Sand blasting, Sand Blasting
Specialized Manufacturer of 45º Elbows, Reducers, Tees, Pipe Bend, Crosses, 90º Elbows, Pipe Cap, Stub End


BARRED TEE REDUCING ASTM A860 WPHY 65 10X8 IN 1500#/PIPING CLASS
