Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF

  • Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF
  • Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Sample Provided,Free,Available Free Within 7days
Application Fluid Pipe,Structure Pipe Outer Diameter 6-813mm
Surface Annealed & Pickled, Bright Annealing, Polished Thickness 0.5-100mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Types Seamless
Highlight

316L stainless steel threaded flange

,

forged steel flange 1500lb RF

,

2500lb RTJ stainless steel flange
Leave a Message
Product Description

Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF

Overview

Quick Details
Place of Origin:
China
Model Number:
316L Threaded Flange
Standard:
DIN, ASME, ASME B16.5
Product name:
Threaded Flange
Material:
SUS 316L
Pressure:
150#-2500#
Size:
1/2"-24"
Process:
Forged
Flange sealing face:
FF RF RTJ
Packing:
Wooden Box










Supply Ability
Supply Ability
100000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Plywood Case,Pallet,etc.
Port
Tianjin,Shanghai,Qingdao,etc.

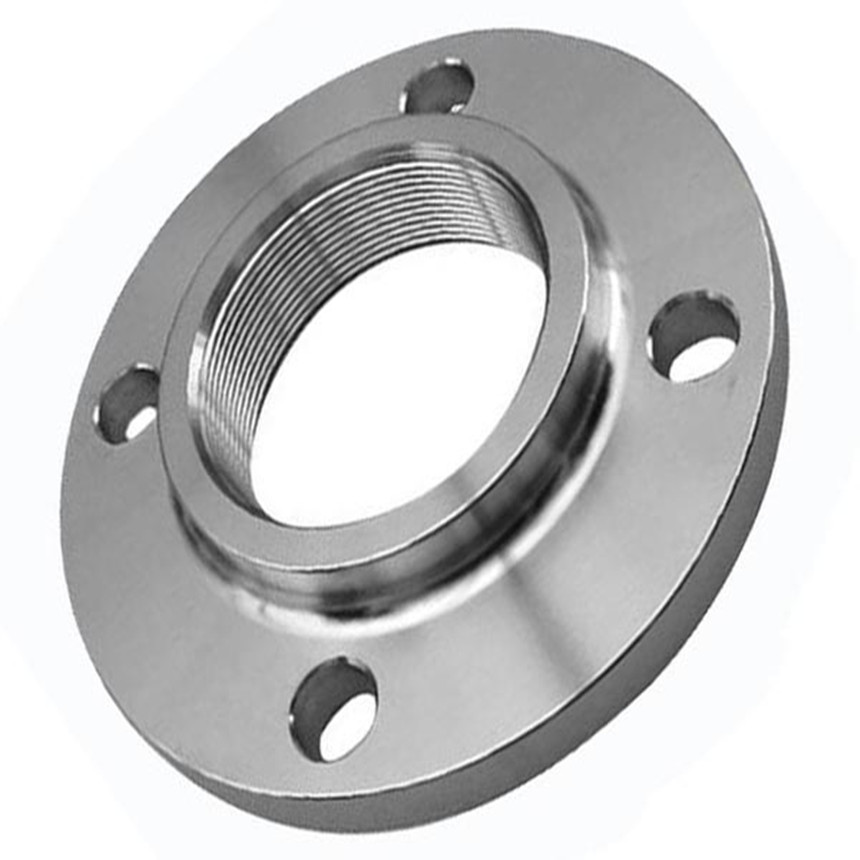

Picture Example:


Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF

Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF 2

Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500#

1/2"-24"

(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500#

1/2"-3"

(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900#

22"-48"

(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002

Plate flange for welding/

loose plate flange with weld-on plate collar or for lapped pipe

end/Blind Flange/WN flange

 PN2.5-PN100 DN10-DN4000
JIS B2220

Welding flange,

lap joint flange,

threaded flange

 PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E

Plate Flange for welding/

WN flange/blank Flange

 PN6-PN100 DN10-DN1500
Other Products

Anchor/swivel/girth/l

ap joint/reducing/orifice

Spectacle blind/paddle blind/

spacer ring/orifice plate/bleed ring

Special Products: rings/

forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish

Stock finish/spiral serrated/

concentric serrated/smooth finish

(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel

ASTM/ASME B/SB564 UNS N02200(NICKEL 200),

UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),

UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),

UNS N10276(HASTELLOY C276),

ASTM/ASME B/SB160 UNS N02201(NICKEL 201),

ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy

ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),

C71500(CuNi 70/30)
Stainless Steel

ASTM/ASME A/SA182 F304,304L,304H,309H,310H,

316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel

ASTM/ASME A/SA182

F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52,F56 F60, F65, F70
Alloy Steel

ASTM/ASME A/SA182 GR F5,

F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF 3Stainless Steel Forged Threaded Flange 316L 1500lb 2500lb RF RTJ FF 4



FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
