Factory Price Nickel Alloy Inconel 718 600 625 725 X750 Seamless Tube/Pipe For Sale

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	1.4835 Stainless Steel Seamless Pipe

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	15days->
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Standard::	DIN, ANSI, ISO, GB, JIS	Sample:	Provided,Free,Available Free Within 7days
Application:	Fluid Pipe,Structure Pipe	Outer Diameter:	6-813mm
Surface:	Annealed & Pickled, Bright Annealing, Polished	Thickness:	0.5-100mm
Material:	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Types::	Seamless
Highlight:	Nickel Alloy Seamless Round Tube , X750 Seamless Stainless Tube , Inconel 725 Seamless Round Tube

Factory price nickel alloy Inconel 718 600 625 725 X750 seamless tube/pipe for sale

Overview

Quick Details

Place of Origin:: China

Type:: Nickel Pipe, Bare

Application:: High temperature corrosion resistance

Grade:: Corrosion resistant alloy

Ni (Min):: 50%

Resistance (μΩ.m):: 1.14~1.28

Powder Or Not:: Not Powder

Ultimate Strength (≥ MPa):: 550

Elongation (≥ %):: 28

Model Number:: Inconel 600 625 725 718 X750

Melting point:: 1290-1350℃

Surface:: Bright, Oxidized or Pickling

Size:: Customized Size

Heat treatment method:: solid solution and aging treatment

Technique:: Cold Rolled Hot Rolled

Feature:: High Temperature Corrosion Resistant

Key Word:: Inconel Alloy pipe

Supply Ability

Supply Ability: 100 Ton/Tons per Month

Packaging & Delivery

Packaging Details: Wooden cace
Carton
pallet

Port: Shanghai ,Tianjin, Qingdao,Beijing,Ningbo

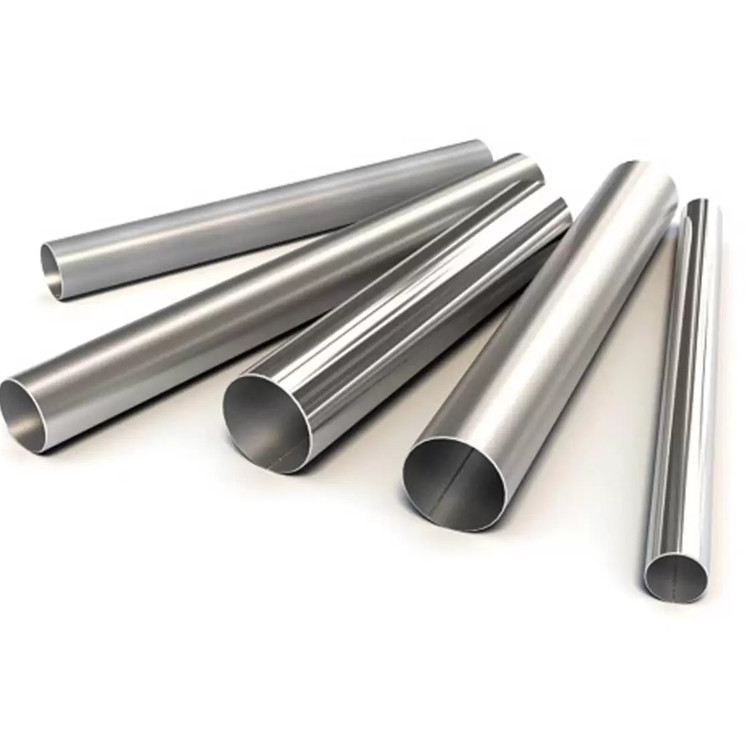

Picture Example:

Product Paramenters

Inconel 600 Chemical composition, %

Ni	≥72	Cr	14-17	Fe	6-10	Si	≤0.5
Cu	≤0.5	C	≤0.15	Mn	≤1.0	P	≤0.015
S	≤0.015


Inconel 625 Chemical composition, %

Ni	≥58	Cr	20-23	Fe	≤5	Mo	8-10
Nb	3.15-4.15	C	≤0.01	Mn	≤0.5	Si	≤0.5
S	≤0.015	P	≤0.015	Ti	≤0.4	Al	≤0.4
Co	≤0.1


Inconel 718 Chemical composition, %

Ni	50-55	Cr	17-21	Fe	Bal.	Cu	≤0.3
Nb	4.75-5.5	C	≤0.08	Mn	≤0.35	Si	≤0.35
S	≤0.015	Mo	2.8-3.3	Ti	0.65-1.15	Al	0.2-0.8
P	≤0.015	B	0.006	Co	≤1


Inconel 725 Chemical composition, %

Ni	55-59	Cr	19-22.5	Fe	Bal.	Mo	7-9.5
Nb	2.75-4	C	≤0.03	Mn	≤0.35	Si	≤0.2
S	≤0.01	P	≤0.015	Ti	1-1.7	Al	≤0.35


Inconel X750 Chemical composition, %

Ni	≥70	Cr	14-17	Fe	5-9	Si	≤0.5
Co	≤1	C	≤0.08	Mn	≤1.0	Ti	2.25-3.75
S	≤0.01	Nb	0.7-1.2	Al	0.4-1


Mechanical properties of Inconel alloy at room temperature

Alloy grade	Alloy state	Yield Strength	Tensile strength	Elongation	Brinell hardness
	Solid solution	Mpa,≥	Mpa,≥	%,≥	HB,≤
Inconel 600		205-345	550-690	28
Inconel 625		414	827	30	220
Inconel 718		550	965	30	363
Inconel 725		313	568	35	35
Inconel X750		515	930	30


Inconel alloy Physical properties


Supply form and specification

Form	Specification
Wire	Diameter=0.03mm~8mm
Flat wire	Width=0.4~40mm	Thick=0.03~2.9mm
Strip	width=8~250mm	ThickT=0.1~3.0mm
Foil	width=6~120mm	Thick=0.003~0.1mm
Bar	Diameter=8~100mm	Long=50~1000

Product Description

Inconel 600 alloy is a nickel-chromium-iron-based solid solution strengthened alloy with good high temperature corrosion resistance and oxidation resistance, excellent cold and hot processing and welding properties, and has satisfactory thermal strength and high plasticity below 700 ℃. Inconel 600 material is the most commonly used material in structural engineering because it is well suited for high temperatures above 1000°F (540°C). Inconel 600 is durable, stable, strong and corrosion resistant. Inconel 600 is also known as a superalloy due to its strong properties, such as its excellent performance under enormous mechanical stress and temperature, and its resistance to oxidation and creep. Inconel 600 (UNS N06600) is also used in parts and accessories for heat treatment furnaces, heat exchangers, etc.Inconel 625 is an alloy grade with a density of 8.4 g/cm3 and a melting point of 1290-1350 °C. It has excellent corrosion resistance to inorganic acids, and has excellent corrosion resistance to various corrosive media in oxidative and reducing environments. The softened and annealed low carbon alloy 625 is widely used in the chemical process industry, and its better corrosion resistance and high strength enable it to be used as a thinner structural component.
Inconel 718 (N07718) is an iron-nickel-chromium-based precipitation hardening deformed superalloy. The long-term service temperature range is -253 ~ 650°C, and the short-term service temperature is 800°C. It has high strength and good toughness below 650°C. The unique formulation of Inconel 718 increases strength and corrosion resistance while providing easy machinability and ease of weldability. Inconel 718 alloy has been used to manufacture rings, blades, standard parts and structural parts in the aerospace, aerospace and energy industries. Inconel 725 is a nickel-chromium-molybdenum-niobium alloy with excellent corrosion resistance. After aging heat treatment, the strength of the alloy can be greatly increased, and the ductility and tensile strength of the alloy can be greatly improved. The alloy also has strong resistance to stress corrosion, and is mainly used in pipe fittings, joints and bearings in acid-resistant equipment, and is also widely used in marine equipment.
Inconel X-750 alloy is mainly a nickel-based superalloy that is age-strengthened with γ" phase. It has good corrosion resistance and oxidation resistance below 980 °C, high strength below 800 °C, and good corrosion resistance below 540 °C. Relaxation resistance, good formability and welding performance. The alloy is mainly used to manufacture flat springs and coil springs that are resistant to relaxation and require high strength for aero-engines that work below 800 °C. It can also be used to manufacture turbine blades And other parts. The varieties that can be supplied are plate, strip, bar, forging, ring, wire and pipe.

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
