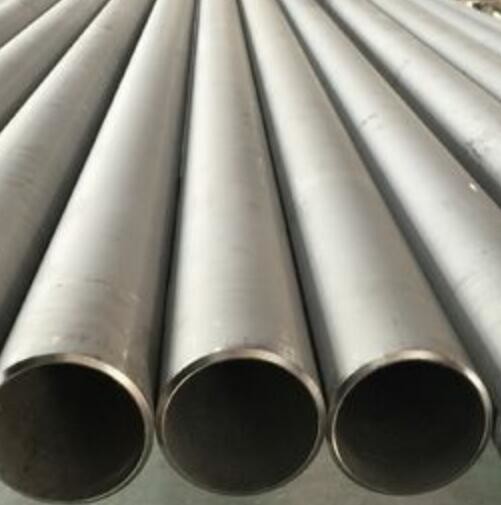

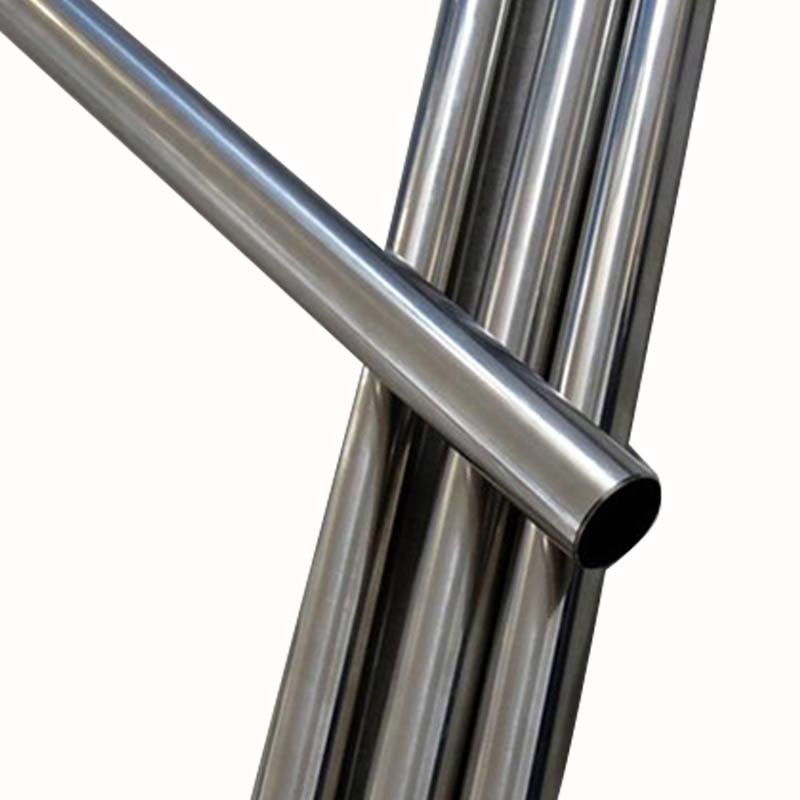

Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe

  • Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe
  • Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Sample Provided,Free,Available Free Within 7days
Application Fluid Pipe,Structure Pipe Outer Diameter 6-813mm
Surface Annealed & Pickled, Bright Annealing, Polished Thickness 0.5-100mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Types Seamless
Highlight

Inconel 602 Nickel Alloy Pipe

,

Nicrofer 6025HT Nickel Alloy Pipe

,

Annealed Nickel Round Bar
Leave a Message
Product Description

Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe

Overview
Quick Details
Place of Origin:
China
Type:
Nickel Pipe
Grade:
602 N06025 2.4633 Nicrofer 6025HT(VDM)
Ni (Min):
Bal.
Powder Or Not:
Not Powder
Ultimate Strength (≥ MPa):
680Mpa min.
Elongation (≥ %):
30% min
Standard:
ASTM B163
Delivery Condition:
Annealed
Length:
2m-12m or as customers' requests
Inspection:
The third party is acceptable
Trade term:
CIF CFR FOB
Manufacture:
YES
Certificate:
EN 10204 3.1
Outer Diameter:
6-219mm
Wall Thickness:
1.0-12.7mm

















Supply Ability
Supply Ability
500 Ton/Tons per Month Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe
Packaging & Delivery
Packaging Details
Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe
Seaworthy Wooden and pallet packing.
Other packing as per customer requirement.
Port
Shanghai




Best Quality 602 N06025 2.4633 Nicrofer 6025HT(VDM) Nickel Alloy Tube Manufacturer in China



Standard: ASTM B163-04 Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes



Steel Grade: 602 N06025 2.4633 Nicrofer 6025HT(VDM)



Size Range:

OD: 6-219mm, Wall Thickness: 1.0-15mm



Chemcial Composition(%):
Unless specified in the table, numerical value presents maximum.

Grade

(UNS)

 C Si Mn S Cr Ni Fe
N06025 0.15-0.25 0.50 0.50 0.01 24.0-26.0 Bal. 8.0-11.0



Mechanical Properties:

Finish Condition

Tensile Strength

(KsiMpa) Min

Yield Strength

(Ksi/Mpa) Min

Elongation

(%) Min
Annealed 98Ksi/680Mpa 39Ksi/270Mpa 30%





Applications:

· Feed water and steam generator tubing.
· Brine heaters, sea water scrubbers in tanker inert gas systems.
· Sulfuric acid and hydrofluoric acid alkylation plants.
· Pickling bat heating coils.
· Heat exchangers in a variety of industries.
· Transfer piping from oil refinery crude columns.
· Plant for the refining of uranium and isotope separation in the production of nuclear fuel.
· Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.
· Monoethanolamine (MEA) reboiling tube.
· Cladding for the upper areas of oil refinery crude columns.
· Propeller and pump shafts.





Packing:

Inconel 602 N06025 2.4633 Nicrofer 6025HT VDM Nickel Alloy Pipe





FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
