Inconel 600,601,625,725,800 Super Nickel-Based Alloy Pipe Seamless Tube

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	1.4835 Stainless Steel Seamless Pipe

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	15days->
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Standard::	DIN, ANSI, ISO, GB, JIS	Sample:	Provided,Free,Available Free Within 7days
Application:	Fluid Pipe,Structure Pipe	Outer Diameter:	6-813mm
Surface:	Annealed & Pickled, Bright Annealing, Polished	Thickness:	0.5-100mm
Material:	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Types::	Seamless
Highlight:	Seamless Nickel Alloy Tube , Inconel 800 Stainless Seamless Pipe , Nickel Alloy Inconel 601 Bar

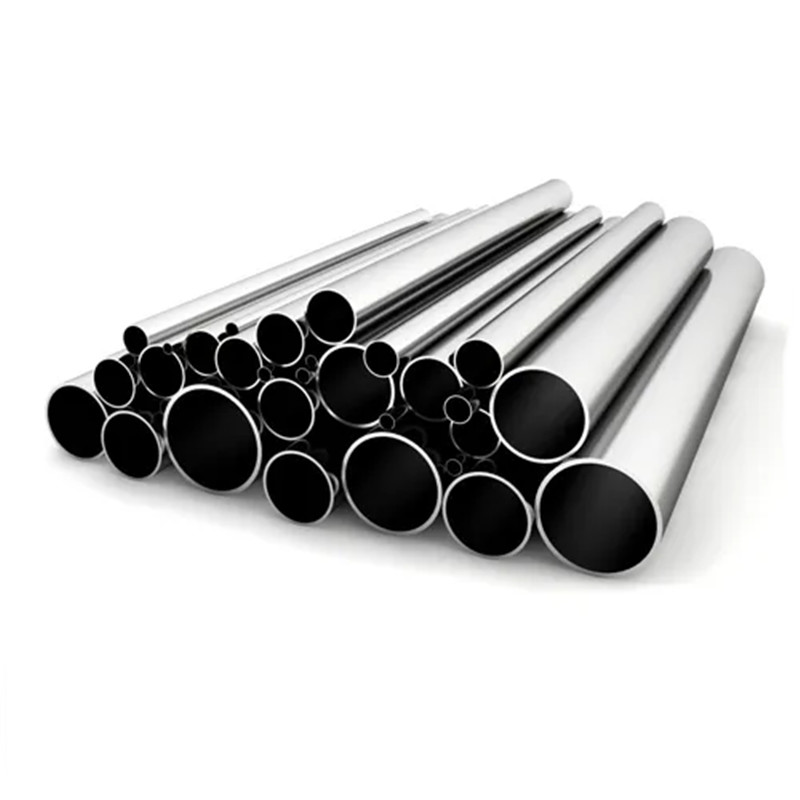

Inconel 600,601,625,725,800 super nickel-based alloy pipe seamless tube

Overview

Quick Details

Place of Origin:: China

Type:: Nickel Pipe, Bare

Application:: Corrosion resistance high temperature

Grade:: Nickel based alloy

Ni (Min):: 55%

Resistance (μΩ.m):: none

Powder Or Not:: Not Powder

Ultimate Strength (≥ MPa):: 568

Elongation (≥ %):: 35

Model Number:: Inconel 725

UNS:: N07725

Melting point:: 1260~1340℃

Surface:: Bright, Oxidized or Pickling

Size:: Customized Size

Heat treatment method:: solid solution and aging treatment

Density:: 8.31g/cm3

Alloy state:: Solution treatment

Supply Ability

Supply Ability: 100 Ton/Tons per Month

Packaging & Delivery

Packaging Details: Wooden cace
Carton
pallet

Port: Shanghai ,Tianjin, Qingdao,Beijing,Ningbo

Picture Example:

Product Paramenters


Inconel 725 Chemical composition, %

Ni	55-59	Cr	19-22.5	Fe	Bal.	Mo	7-9.5
Nb	2.75-4	C	≤0.03	Mn	≤0.35	Si	≤0.2
S	≤0.01	P	≤0.015	Ti	1-1.7	Al	≤0.35


Inconel 725 Physical characteristics

Density g/cm3	Tensile strength Rm N/mm2	Yield Strength RP0.2 N/mm2	Elongation A5/%	Melting point ℃	Brinell hardness HB	Alloy state
8.31	568	313	35	1260~1340	35	Solution treatment


Inconel 725 Thermal performance

Melting interval	1271-1343℃
Elastic Modulus	205 GPa
Stretch ratio at 21-100℃	13.0 µm/m*℃
Thermal Conductivity	10.6 W/m*℃
Resistivity	1.144 μΩ•m

Product Description

Inconel 725 is a nickel-chromium-molybdenum-niobium alloy with excellent corrosion resistance. After aging heat treatment, it can greatly increase the strength of the alloy and greatly improve the ductility and tensile properties of the alloy. The alloy also has strong resistance to stress corrosion. It is mainly used in pipe fittings, joints and bearings in acid-resistant equipment, and it is also widely used in marine equipment. The main products are divided into three categories: 1. As a material for the manufacture of chemical equipment, Inconel 725 alloy, as an important corrosion-resistant structural material, enjoys a high reputation in the material industry for the manufacture of chemical towers and chemical packing; 2. Inconel 725 alloy is used as precision alloy and metal electronic material (composite thermal bimetal and cross-split bimetal component alloy for color picture tube) 3. Inconel 725 alloy is used as a welding surfacing material. As a high-quality corrosion-resistant and extremely corrosion-resistant material, it is used with flux and surfacing on the inner walls of tanks, containers and towers to improve the corrosion resistance of the equipment.

Packing & Delivery

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
