TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
Place of Origin: | China/Japan/Germany |
---|---|
Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
Certification: | ISO/PED/TUV/SGS/LR/BV |
Model Number: | 1.4835 Stainless Steel Seamless Pipe |
Minimum Order Quantity: | 0.5-1 tons |
Price: | negotiable |
Packaging Details: | in plastic bags then in bundles |
Delivery Time: | 15days-> |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 7500 tons per year |
Standard:: | DIN, ANSI, ISO, GB, JIS | Sample: | Provided,Free,Available Free Within 7days |
---|---|---|---|
Application: | Fluid Pipe,Structure Pipe | Outer Diameter: | 6-813mm |
Surface: | Annealed & Pickled, Bright Annealing, Polished | Thickness: | 0.5-100mm |
Material: | Carbon Steel,Stainless Steel,alloy Steel,Brass,copper | Types:: | Seamless |
Highlight: | Inconel 600 Steel Seamless Pipe,Pickled Stainless Steel Pipe,Fluid Seamless Ss Pipe |

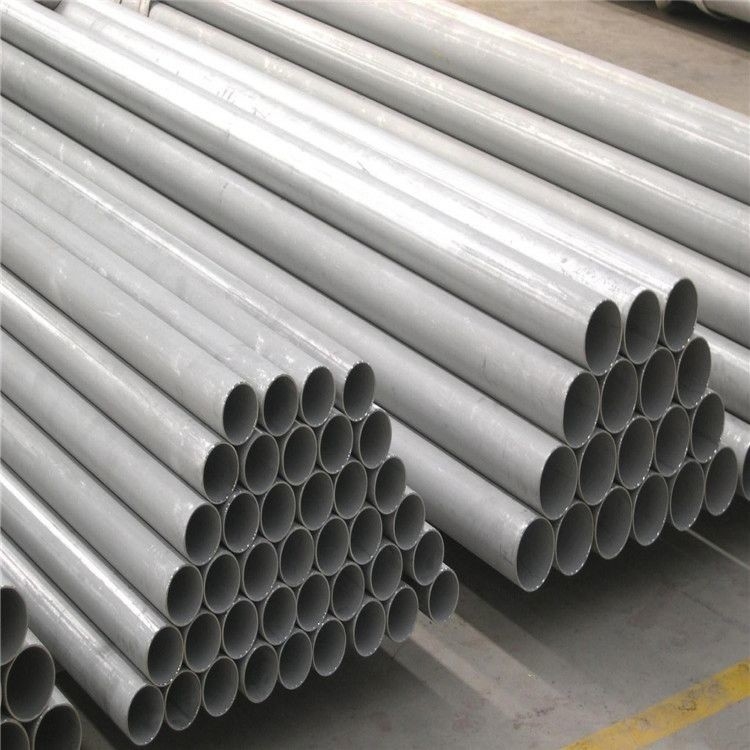

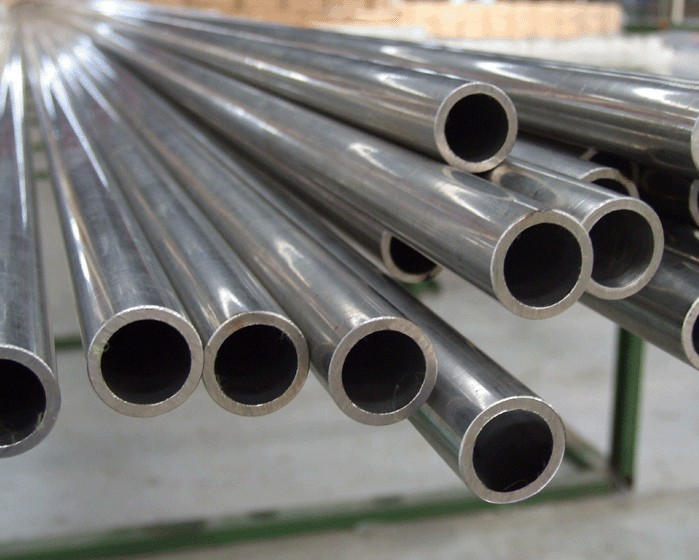

Inconel 600/625 seamless pipe with competitive price
Inconel 600
Inconel 600 Characteristic as below:
1.Good corrosion resistance property for the reduction, oxidation, Nitric and other media. 2.Good stress corrosion cracking resistance property in both room temperature and high temperature.
3.Good corrosion resistance of the dry chlorine and chlorine hydride.
4.Good mechanical property when below zero, room temperature and high temperature.
5.Good anti-creep rupture strength, with the recommendation of 700℃ or above working environment.
C
|
Mn
|
S
|
Si
|
Ni
|
Cr
|
Fe
|
≤0.15
|
≤1
|
≤0.015
|
≤0.5
|
≤0.15
|
14-17
|
6.0-10.0
|
Inconel 625
C
|
Mn
|
S
|
Si
|
Ni
|
Cr
|
Fe
|
≤0.1
|
≤0.5
|
≤0.015
|
≤0.5
|
balance
|
20.0-23.0
|
≤5
|
Inconel 601
C
|
Mn
|
S
|
Si
|
Ni
|
Cr
|
Fe
|
≤0.1
|
≤1.5
|
≤0.015
|
≤0.5
|
Balance
|
21.0-25.0
|
10.0-15.0
|
Inconel 601&Inconel 690 Characteristic as below:
1.Excellent inoxidability in the high temperature.
2.Good resistance to carbonizing.
3.Good inoxidabilitiy in sulfur atmosphere
4.Good mechanical property in both room temperature and high temperature.
5.Good resistance to stress corrosion cracking, 601 have high creep rupture strength since it limits the carbon content and grain size, so recommend to use for above 500℃ environment.
With wide experience and expertise, Beall Industry Group is one of the leading Inconel series manufacturers and suppliers. We have hundreds of high-qualified workers at your service. Please rest assured to get the competitive price for sale with us.
|
C
|
Cr
|
Ni
|
Inconel 690
|
≤0.05
|
27.0-31.0
|
≤58
|
Inconel 718
|
≤0.08
|
17.0-21.0
|
50.0-55.0
|
Inconel 725
|
≤0.03
|
19.0-22.5
|
55.0-59.0
|
Inconel X-750
|
≤0.08
|
14.0-17.0
|
balance
|
Product name
|
Inconel alloy steel round bar/rod/shaft/sheet/plate/tube/pipe/strip/coil/wire/fittings
|
Standard
|
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
|
Technique
|
Cold Rolled Hot Rolled
|
The lowest level of Nickel
|
≥50%
|
Material
|
Alloy : Alloy 20/28/31;
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;Haynes: Haynes 230/556/188; Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20; Incoloy: Incoloy 800/800H/800HT/825/925/926; GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 Monel: Monel 400/K500 Nitronic: Nitronic 40/50/60; Nimonic: Nimonic 75/80A/90 ; |
Beall promise best quality,competitive price and professional service.
1.Free sample is available.
2.Mill Test Certificate is supplied with shipment.
3.The third party inspection is accepted.
1:Package:
Plastic poly-bag, wooden case
All our products are packed, stored, transported according to the international regulation.
The tubes are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions.
Special packing is available as per customer's requirement.
Ply wooden box are available for special protection.
Other kinds of packing can be offered if request
2:Delivery : 15-30 days, according to the quantity
