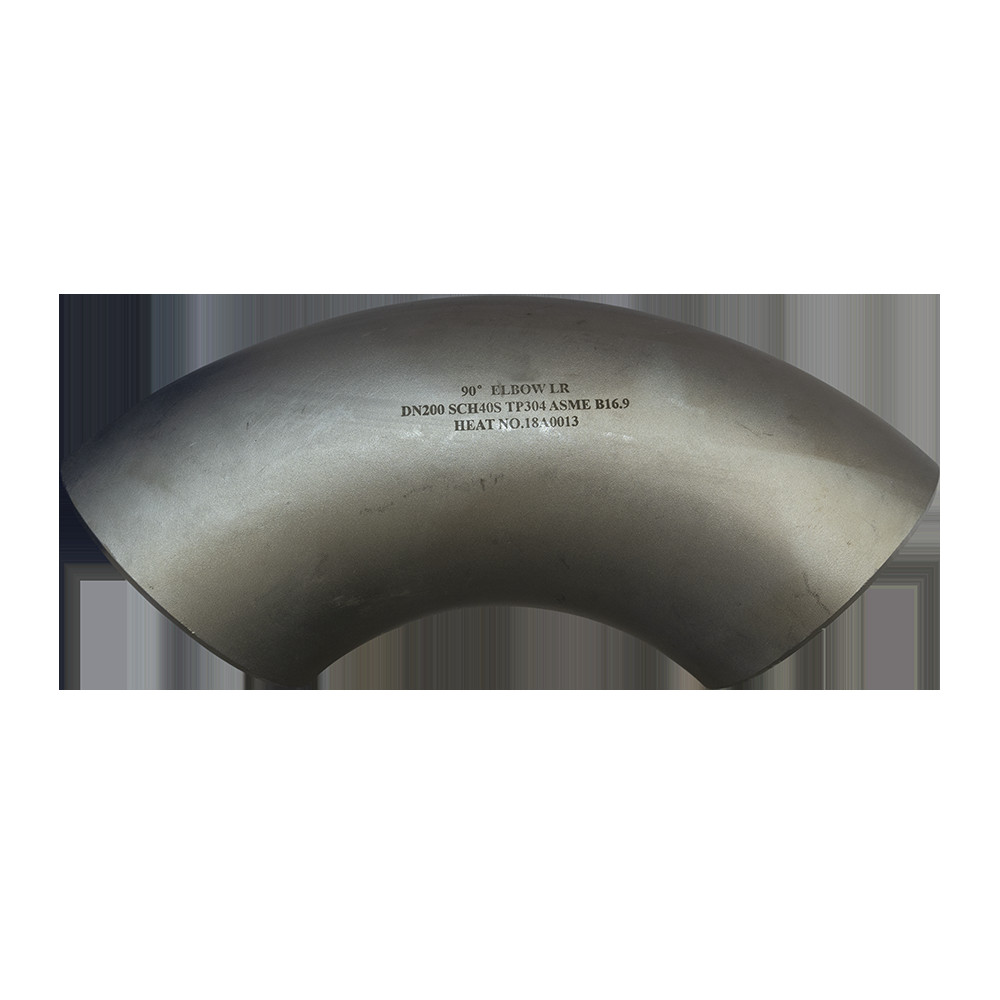

High Quality Schedule 40 Stainless Steel 304 316L 90 Degree Elbow Pipe Fittings

  • High Quality Schedule 40 Stainless Steel 304 316L 90 Degree Elbow Pipe Fittings
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Sample Provided,Free,Available Free Within 7days
Application Fluid Pipe,Structure Pipe Outer Diameter 6-813mm
Surface Annealed & Pickled, Bright Annealing, Polished Thickness 0.5-100mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Types Seamless
Highlight

316L Stainless Steel 90 Degree Elbow

,

90 Degree Stainless Steel Pipe Bend

,

Annealed Forged Steel Elbow
Leave a Message
Product Description

High Quality Schedule 40 Stainless Steel 304 316L 90 Degree elbow pipe fittings

Overview

Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Metal
Model Number:
1/2"-36"
Technics:
Casting
Connection:
Welding
Shape:
Equal
Head Code:
Square
Material:
310S,310,309,316,316L,316Ti,316LN,317
Type:
15 ° ,30° ,45° ,60°,90° , 180°,male and female
Outside diameter:
1/8"-100" (6-2500mm)
Wall thickness:
SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb
MOQ:
2 pieces
Surface treatment:
Hot Galvanized
Service:
7*24 Hours





























Packaging & Delivery

Selling Units:
Single item
Single package size:
8X5X4 cm
Single gross weight:
0.340 kg
Package Type:
According to the needs of customers
Picture Example:



Product Description

Stainless Steel Pipe Fitting ASTM A403/A403M WP316 Long Radius Elbow 4''

Product name Butt welding pipe fitting 90 degree long radius elbow
Size 1/2"-2 4" ,DN15-DN600 24"-72",DN600-DN1800
Wall thickness

SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS


Certification

BV, , LOIYD, TUV, and other party alloyed by clients.


Standard

ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2


Application Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power
Pressure Sch5--Sch160,XXS
Shape Equal, round
Technics Forged
Material

stainless steel,alloy steel,carbon steel


Type LR/SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.
Material ASTM Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10

00Cr17Ni14Mo2, A790/A790M UNS S31803, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo

High Quality Schedule 40 Stainless Steel 304 316L 90 Degree elbow pipe fittingsHigh Quality Schedule 40 Stainless Steel 304 316L 90 Degree elbow pipe fittings







FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
