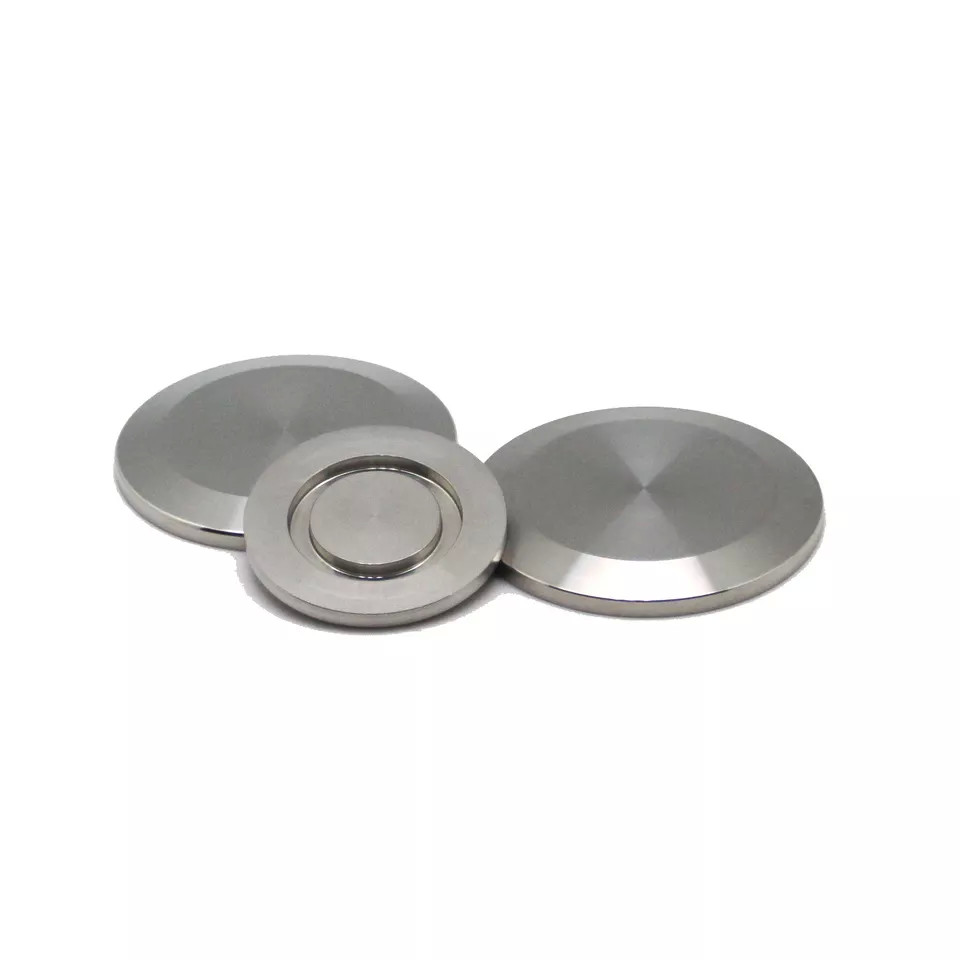

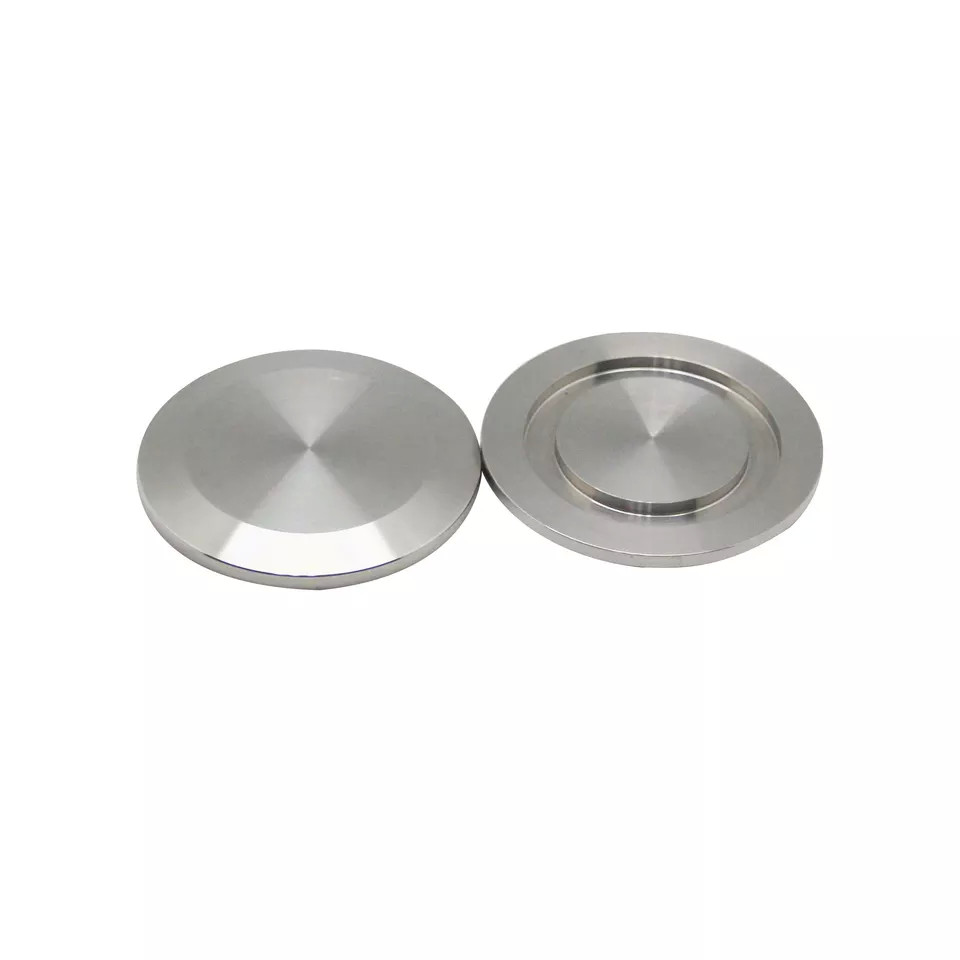

KF25 KF63 KF100 Blank Flange Vaccum Fittings

Place of Origin	China/Japan/Germany
Brand Name	TOBO/TPCO/TISCO/VALIN/METAL
Certification	ISO/PED/TUV/SGS/LR/BV
Model Number	1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity	0.5-1 tons
Price	negotiable
Packaging Details	in plastic bags then in bundles
Delivery Time	15days->
Payment Terms	T/T, L/C, Western Union,
Supply Ability	7500 tons per year

Product Details

Standard	DIN, ANSI, ISO, GB, JIS	Application	Fluid Pipe,Structure Pipe
Surface	Annealed & Pickled, Bright Annealing, Polished	Types	Seamless
Thickness	0.5-100mm	Outer Diameter	6-813mm
Material	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Sample	Provided,Free,Available Free Within 7days
Highlight	Vacuum Blank Pipe Flange , Stainless Steel Blank Flange , KF63 Blank Pipe Flange

Leave a Message

Product Description

KF25 KF63 KF100 Blank Flange Vaccum Fittings

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: QiiMii

Model Number:: FBB

Technics:: Forged

Connection:: Flange

Shape:: Equal

Packaging & Delivery

Lead Time:

Quantity(pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

Product Description

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure.
Because of the large number of elastomer seals used.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Material and Size
• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L

• Clamps: Aluminum or Stainless Steel 304

• Oring: Viton

Vacuum range
Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Detailed Images

KF Flange Series

• Short / Long Flange Weld Stub• Socket Weld Flange
• Blank Stubs Flange
• Blank Flange
• Bored Black Flange
• Center Ring with O-ring
• KF Bellow
• KF Double Pin Clamp

Short / Long Flange Weld Stub

Bellows

Center Ring with O-ring

Double Pin Clamp

Blank Flange

Bored Black Flange

KF Tee

KF Elbow

KF Reducer

Drawing

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
