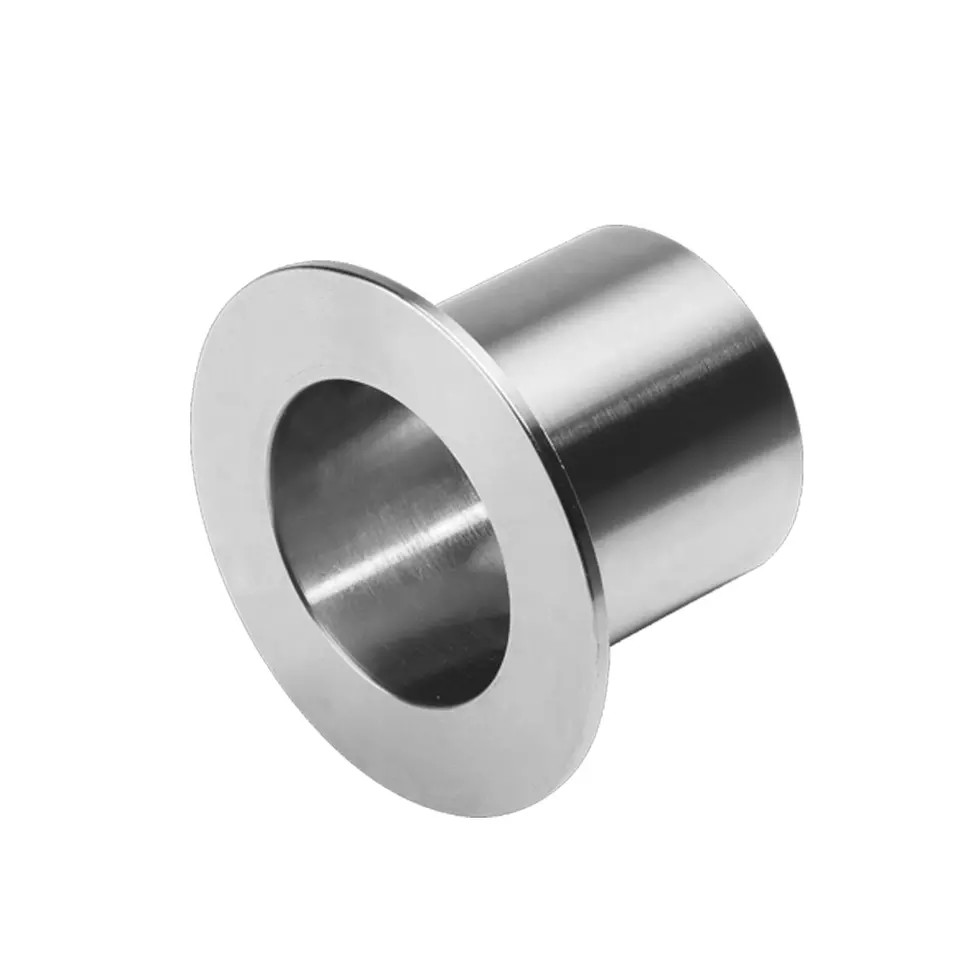

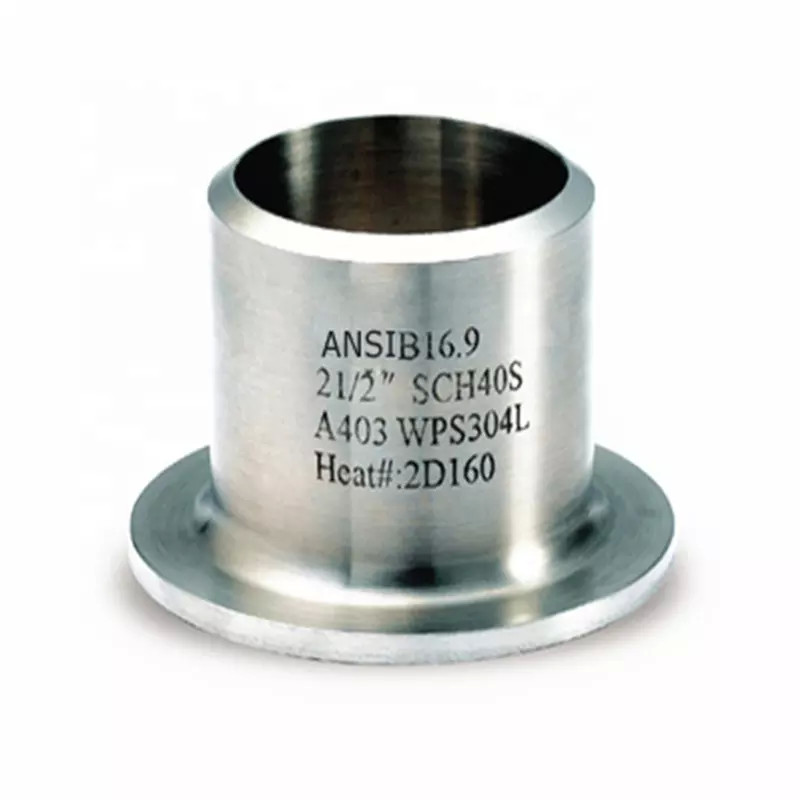

Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub

  • Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub
  • Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Application Fluid Pipe,Structure Pipe
Surface Annealed & Pickled, Bright Annealing, Polished Types Seamless
Thickness 0.5-100mm Outer Diameter 6-813mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample Provided,Free,Available Free Within 7days
Highlight

Stainless Steel Stub End Flange

,

Lap Joint Stub End Flange

,

SS304 Lap Joint Flange Stub
Leave a Message
Product Description

Stainless steel flanges stub end using with lap joint flange SS304 stub

Overview

Quick Details
Warranty:
1 year
Customized support:
OEM, ODM
Place of Origin:
China
Model Number:
STE
Technics:
cold press
Connection:
Welding
Shape:
Equal
Head Code:
round
Size:
1/2" up to 110"
Wall thickness:
SCH 5s-SCH XXS
Standard:
ASTM DIN EN
Name:
Stainless steel stub end using with lap joint flange SS304 stub
Surface treatment:
sand blasting, roll blasting, pickled or polished
type:
long or short
End:
bevel end ANSI B16.25
Production process:
seamless or welded
Material:
304,304l,316,316, 321,347h,310s, s31803,2205, etc.
Application:
Industry



















Supply Ability
Supply Ability
3000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
below 8", will be packed by plywood case
above 8", will be packed by plywood pallet
Port
shanghai, ningbo
Lead Time:
Quantity(pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Specification
Stub end
OD
15mm-2000mm
Pressure
PN10 PN16 PN25 PN40 etc.
Standard
ANSI B16.9,EN1092-1, MSS SP 43, DIN2642 etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.





Material
Stainless steel:304/304L, 316/316L, 321, 310S, 347H, 316Ti, 317, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.
Carbon steel: A234WPB , A515 Gr60, A515 Gr 70
Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: X42, X52, X60, X65, X70, etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy: A223WP11, A234WP5, A234WP22, A234WP91, A234WP9, 16mo3 etc.
Application
Petrochemical industry;avation and aerospace industry;pharmaceutical industry;
gas exhaust;power plant;ship building;water treatment,etc.
Advantages
ready stock,faster delivery time;available in all sizes,customized;high quality
Tips
WHY CHOOSE LAP JOINT FLANGES?
The biggest limitation to lap joint flange usage is pressure ratings.
While many Lap Joint flanges will accommodate greater pressure levels than Slip-On flanges, they’re still not suited for high-pressure applications. If you are unsure, always consult with an engineer before purchasing flanges for use with your piping systems.
With the limitations out of the way, both designs offer three major benefits depending on the industry in which you’re involved.
The first is the ability to use different materials for the Backing flange than the Stub End. This means you can match the piping materials as required where components touch piped materials while using more affordable — or otherwise desirable — materials in the outer components which do not interact with piped materials.
The second is the ability to realign and rotate the flange freely to ensure proper connection and speed up maintenance processes in systems that require frequent maintenance. The ability to utilize flanges that do not require filet welds on the plates can also decrease installation times and provide further upfront cost savings.
Finally, in high-corrosion or high-erosion processes, Lap Joint flanges allow you to salvage the flange for re-use while replacing Stub Ends as required for e, cost-effective operation.
Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub
Lap joint flange/loose flange
Size
1/2" up to 80"
Pressure
PN10 PN16 PN25 PN40, class150, class300, class 400, class 600, class 900,class 1500, class 2500, etc
Standard
ANSI B16.5,EN1092-1, JIS B2220, DIN2642 etc.





Material
Stainless steel:A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, A182 F317, 904L,1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc.
Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70 etc.
Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182 F11,A182 F5, A182 F22, A182 F91, A182 F9, 16mo3 etc.
Advantages
ready stock,faster delivery time;available in all sizes,customized;high quality
Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub
Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub
Stainless Steel Flanges Stub End Using With Lap Joint Flange SS304 Stub





FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
