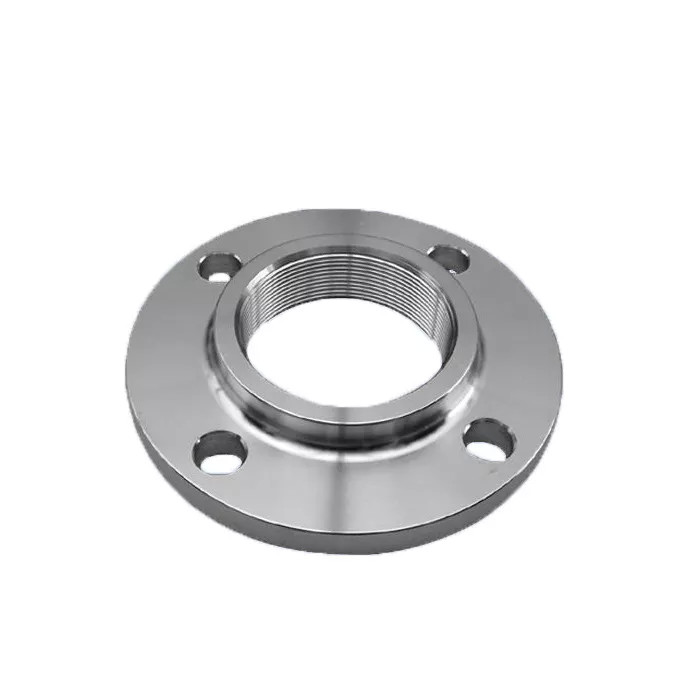

DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange

DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange
DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: 15days->
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Standard:: DIN, ANSI, ISO, GB, JIS Application: Fluid Pipe,Structure Pipe
Surface: Annealed & Pickled, Bright Annealing, Polished Types:: Seamless
Thickness: 0.5-100mm Outer Diameter: 6-813mm
Material: Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Sample: Provided,Free,Available Free Within 7days
Highlight:

Threaded Decorative Pipe Flange

,

Galvanized Forged Pipe Flange

,

Decorative Carbon Steel Flange

Factory Price DIN ANSI standard Carbon steel forged galvanized threaded decorative pipe flange

Overview

Quick Details
Place of Origin:
China
Model Number:
threaded flange
Standard:
ANSI, DIN, JIS, ANSI, ANSI JIS DIN EN GOST
Product name:
threaded pipe flange
Conncetion:
Thread
Surface:
Galvanized
Packing:
Wooden Case
Pressure:
Class150/300/600/9001500/2500
Type:
Thread flanges
Process:
Forging+machining+heating Treatment
Face:
FF,RF,RTJ,GF,TF
Technics:
Forged Casting











Supply Ability
Supply Ability
10000 Piece/Pieces per Month steel flange
Packaging & Delivery
Packaging Details
plywood or as per customers' requirements
Port
Xingang,Qingdao
Lead Time:
Quantity(pieces) 1 - 100 >100
Est. Time(days) 25 To be negotiated
Product Name
Steel Flange
Types
Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange
Face Finish
RF,FF,RTJ,TF,GF
Standard
ANSI
ANSI B16.5 ASME B16.47 series A/B
DIN
DIN 2631 2573 2527 2565 2641
GOST
GOST 12820-80,GOST 12821-80,Gost Blind
EN
EN1092-1:2002
JIS
JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210
BS
BS4504,BS10 Table D/E
UNI
UNI 2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67
SABS
SABS 1123
Material
ANSI
CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80
DIN
CS RST37.2;S235JR SS 304/304L,316/316L
GOST
CS CT20;16MN;SS 304/304L,316/316L
EN
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS
CS SS400,SF440,SS 304/304L, 316/316L
BS
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
UNI
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
SABS
CSRST37.2;S235JR;Q235;SS 304/304L,316/316L
Pressure
ANSI
Class 150, 300, 600, 900, 1500 2500lbs
DIN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST
PN6,PN10,PN16,PN25
EN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS
1K,2K,5K,10K,16K,20K,30K,40K
BS
PN6,PN10,PN16,PN25,PN40,PN64,PN100
UNI
PN6,PN10,PN16,PN25,PN40
SABS
600KPA,1000,1600,2500,4000
Size
ANSI
1/2” – 60”
DIN
DN15-DN2000
GOST
DN10-DN1600
EN
DN15-DN2000
JIS
15A-1500A
BS
DN15-DN2000
UNI
DN10-DN2000
SABS
DN10-DN600
Coating
varnish, yellow paint, anti-rust oil, galvanizing etc
Usage
Used for the connection of all kinds of pipeline.
to convey the water, steam, air, gas and oil
Package
Wooden cases/pallets
Delivery
Within 30 days
Certificate
ISO9001:2008



DIN ANSI Standard Carbon Steel Forged Galvanized Threaded Decorative Pipe Flange 0





FAQ



Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
