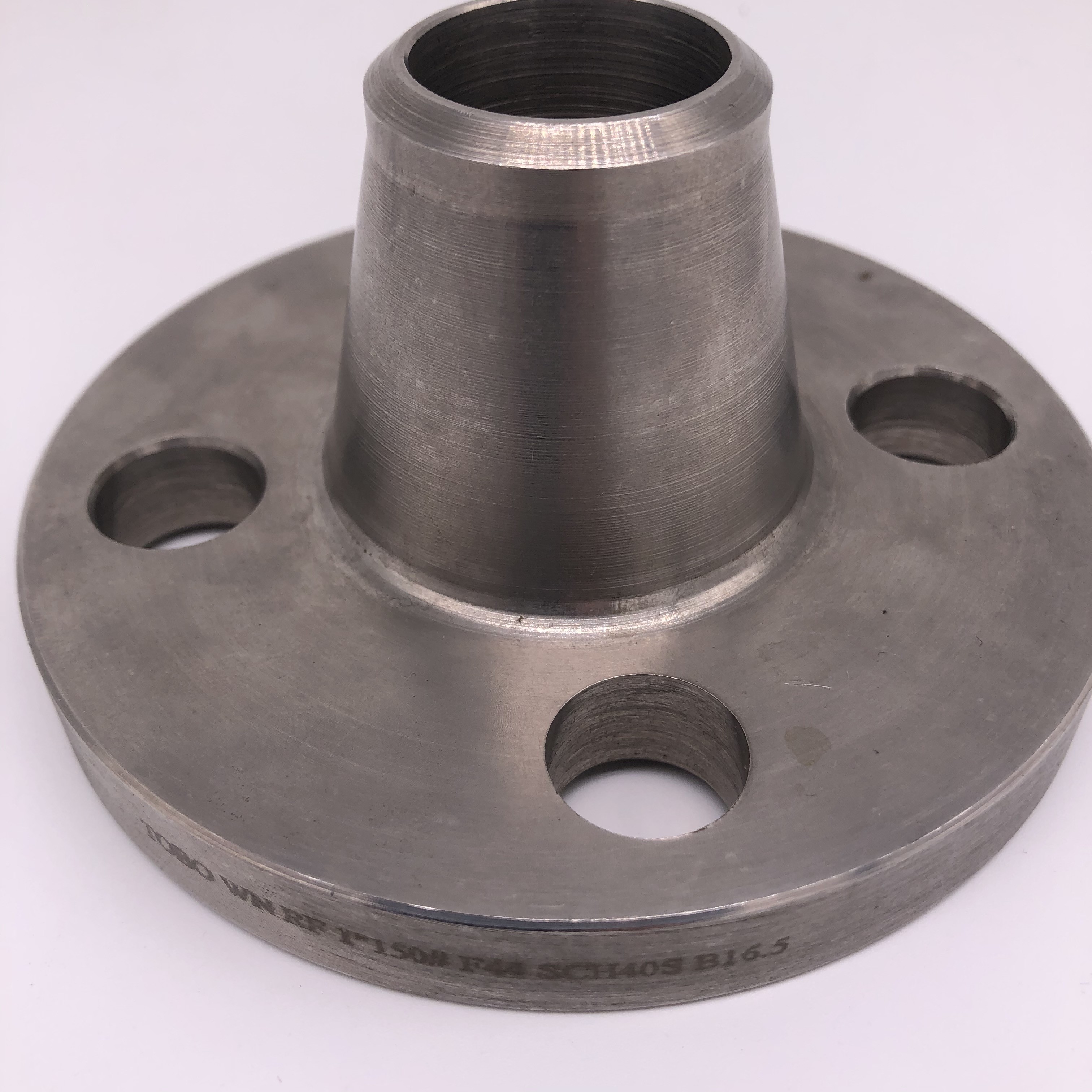

Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)

Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)
Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254) Weld neck flange, RFFE, BE, 6 Weld neck flange, RFFE, BE, 6 Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254) Weld neck flange, RFFE, BE, 6 Weld neck flange, RFFE, BE, 6 Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254) Weld neck flange, RFFE, BE, 6 Weld neck flange, RFFE, BE, 6
Basic Information
Place of Origin: CHINA
Brand Name: TOBO
Certification: BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Forged Steel Flange
Minimum Order Quantity: 0.5-1 tons
Price: negotiable

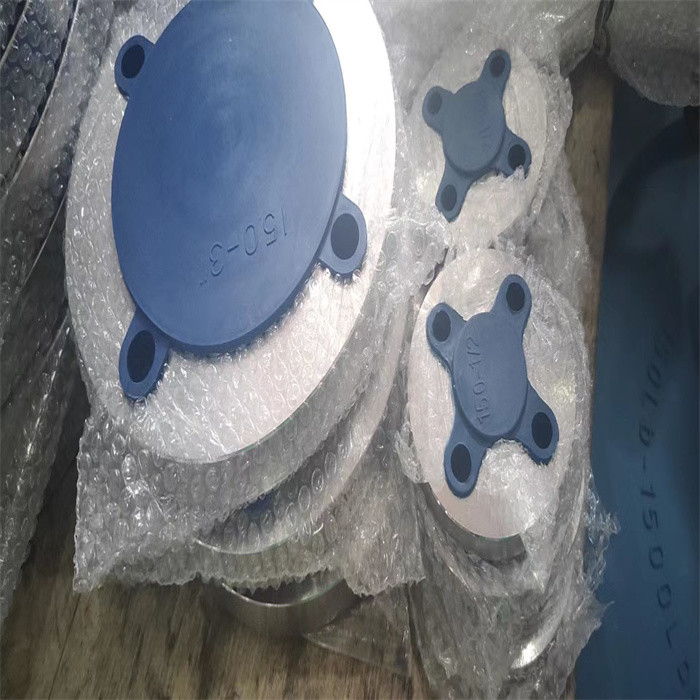

Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000TONS/MONTH
Get Best Price Contact Now
Logo: Customized Logo Keyword: Steel,A105,NPT Threaded Blind Flange,weld Neck Flange Ansi 150 Rf,Titanium
Material: SS Product Name: Flange
Standard Or Nonstandard: ASME B16.5 Application: Gas, Petroleum, Auto Parts, Concrete Pump, Water
Type: Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding Pressure: Class150,150#-2500#,5K-30K

Weld neck flange, RFFE, BE, 6", S-10S, CL150, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)

Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1

ASTM A182 F44 Flange Definition

ASTM A182 is the Standard Specification for Forged Stainless Steel Pipe Flanges and Stainless Steel Forged Fittings.

ASTM 182 is use in pressure systems, Included are flanges, fittings and similar parts to specified dimensions or to dimensional standards, such as the ASME specifications.

ASTM A182 F44 Flange is Material to F44 Super Austenitic Stainless Steel is described as a 6% Mo Flanges super austenitic stainless
steel. The steel combines moderate mechanical strength (typically over 300 MPa yield strength) and high ductility with excellent corrosion resistance in seawater and a variety of industrial environments. Typically the alloy has a PREn(Pitting Resistance Equivalent) of 42-44 which ensures that the resistance to pitting corrosion is high. In addition, the steel provides good resistance to crevice corrosion.

ASTM A182 F44 Flange Range

ASTM A182 F44 Flange Specification ASTM A182 / ASME SA182
ASTM A182 F44 Flange Manufacturing Process Hot Forging / Rolling / Machining
ASTM A182 F44 Flange Other Grades 202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc.
UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904
EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539
ASTM A182 F44 Flange Outer Diameter 1/2" NB TO 64" NB
ASTM A182 F44 Flange Pressure Class Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement
PN 6, PN 10, PN 16, PN 25 and PN 40 etc
ASTM A182 F44 Flange Schedule Sch 10s TO Sch XXS or As Per Custom Requirement
ASTM A182 F44 Flange Facing Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A182 F44 Flange Dimension ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
ASTM A182 F44 Flange Types Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
ASTM A182 F44 Flange Other Testing NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc.
ASTM A182 F904L Flange Value Added Services Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
ASTM A182 F44 Flange Packaging Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
ASTM A182 F44 Flange Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A182 F44 Flange Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC

UNS S31254 F44 Flange

ASTM A182 F44 flange,W.Nr. 1.4547 flange,SMO 254,UNS S31254 Flange
