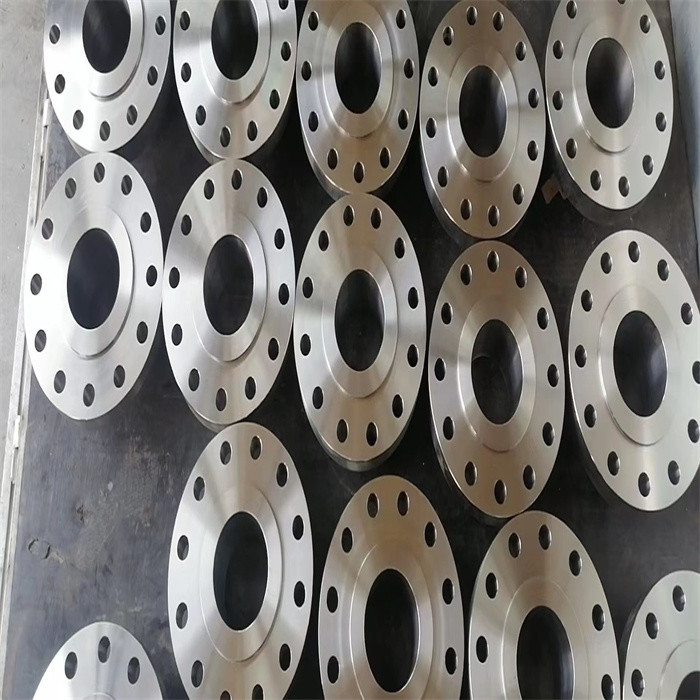

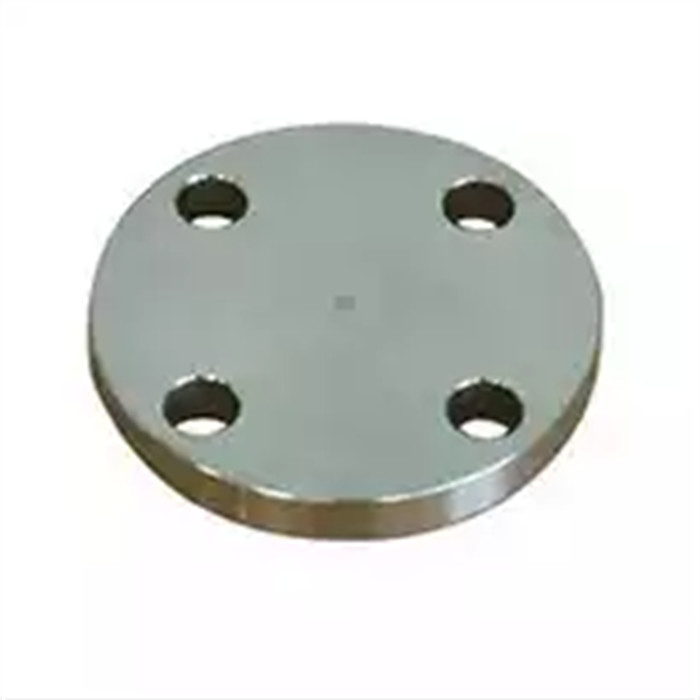

3" CL300 BL Flange RF ASTM A182 F316/F316L B16.5

  • 3" CL300 BL Flange RF ASTM A182 F316/F316L B16.5
  • 3" CL300 BL Flange RF ASTM A182 F316/F316L B16.5
  • 3" CL300 BL Flange RF ASTM A182 F316/F316L B16.5
Place of Origin CHINA
Brand Name TOBO
Certification BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Forged Steel Flange
Minimum Order Quantity 0.5-1 tons
Price negotiable

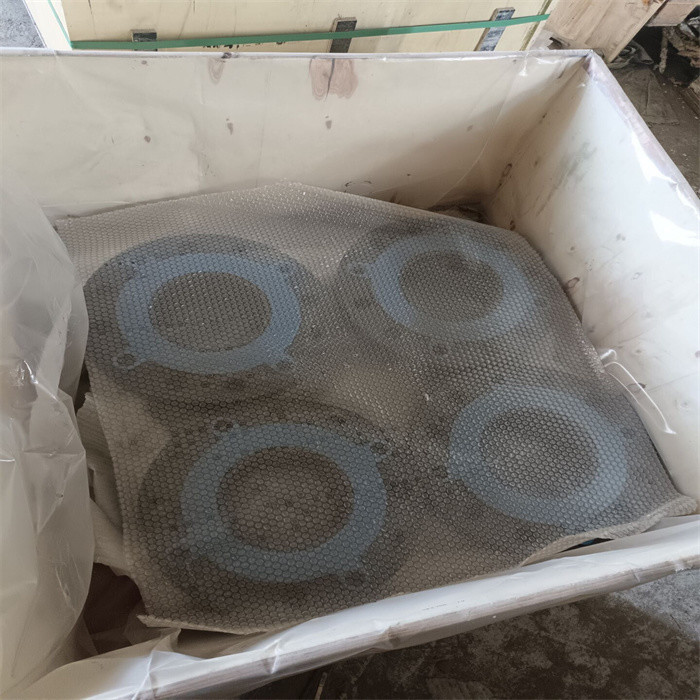

Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 6000TONS/MONTH
Product Details
Logo Customized Logo Keyword Steel,A105,NPT Threaded Blind Flange,weld Neck Flange Ansi 150 Rf,Titanium
Application Gas, Petroleum, Auto Parts, Concrete Pump, Water Material SS
Pressure Class150,150#-2500#,5K-30K Standard Or Nonstandard ASME B16.5
Type Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding Product Name Flange
Highlight

3 inch CL300 forged steel flange

,

ASTM A182 F316L RF flange

,

B16.5 stainless steel flange
Leave a Message
Product Description

3" CL300 BL Flange RF ASTM A182 F316/F316L B16.5

Stainless Steel ASME SA182 F316L Forged Threaded Pipe Fittings Chemical Composition
Grade Cr Mo C Mn Si P S Ni N
SS 316 16.00 – 18.00 2.00 – 3.00 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 11.00 – 14.00 67.845 min
SS 316L 16.00 – 18.00 2.00 – 3.00 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 10.00 – 14.00 68.89 min
SS 316H 16.00 – 18.00 2.00 – 3.00 0.10 max 2.0 max 0.75 max 0.045 max 0.030 max 10.00 – 14.00 68.89 min
SS 316Ti 16.00 – 18.00 2.00 – 3.00 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 10.00 – 14.00 68.395 min
ASTM A182 SS 316 Forged Steel Fittings Mechanical Properties
Grade Tensile Strength Melting Point Yield Strength (0.2%Offset) Density Elongation
SS 316 Psi – 75000 , MPa – 515 1400 °C (2550 °F) Psi – 30000 , MPa – 205 8.0 g/cm3 35 %
SS 316L Psi – 75000 , MPa – 515 1399 °C (2550 °F) Psi – 30000 , MPa – 205 8.0 g/cm3 35 %
SS 316H Psi – 75000 , MPa – 515 1400 °C (2550 °F) Psi – 30000 , MPa – 205 8.0 g/cm3 35 %
SS 316Ti Psi – 75000 , MPa – 515 1399 °C (2550 °F) Psi – 30000 , MPa – 205 8.0 g/cm3 35 %

ASTM A182 F316 Forged Pipe Fittings Available Types & Shapes

SS 316 Forged Tee SS 316L Threaded Tee
ANSI B16.11 SS 316 Socket Weld Union SS 316Ti Threaded / Screwed Union Stockist
Steel 316L Threaded Street Elbow SS DIN 1.4571 Threaded / Screwed Pipe Nipple
Forged Stainless Steel 316L Pipe Fittings Stainless steel 316L Forged Fittings
Stainless Steel 316 Forged Pipe Fittings Stainless Steel 316Ti High Pressure Forged Fittings
Stainless Steel 316L Socket Weld Fittings Stainless Steel 316 Threaded Fittings
Stainless Steel UNS S31600 Socket Weld 90 Deg Elbow Stainless Steel 316L Threaded 90 Deg Elbow
SS 316H Socket Weld 45 Degree Elbow Suppliers ANSI 316 Stainless Steel Screwed 45 Degree Elbow
SS 316L Socket Weld Cross Steel 316H Threaded / Screwed Cross
SUS 316 Socket Weld Half Coupling SS 316L Threaded Half Coupling
DIN 1.4401 Full Coupling SS UNS S31609 Coupling
Stainless Steel 316 Socket Weld Cap ASTM A182 F316L Screwed Cap
ASTM A182 SS 316 Screwed Hex Plug ASME SA182 SS 316 Square Plug
ASTM A182 F316L Reducing Tee 316 SS Threaded / Screwed Bushing
ASTM A182 F316/F316L Forged Threaed Fittings ASME SA182M F316L Forged Fittings
A182 SS 316H Hex Nipples ASME SA182M SS 316 Swage Nipple
ASTM A182 F316L Forged Fittings A182 SS 316L Forged Fitting
Stainless Steel 316 Socket weld Unequal Tee SS 316Ti ASME B16.11 Threaded Unequal Tee


Related Products


ASTM A182 F316H Threaded / Screwed Hex Plug

ASTM A182 F316 Threaded / Screwed Bushing

ASTM A182 F316L Threaded / Screwed Street Elbow

ASTM A182 F316Ti Threaded / Screwed Pipe Nipple













FAQ

Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi, Jiangsu, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are ais Steel Sheet Plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
