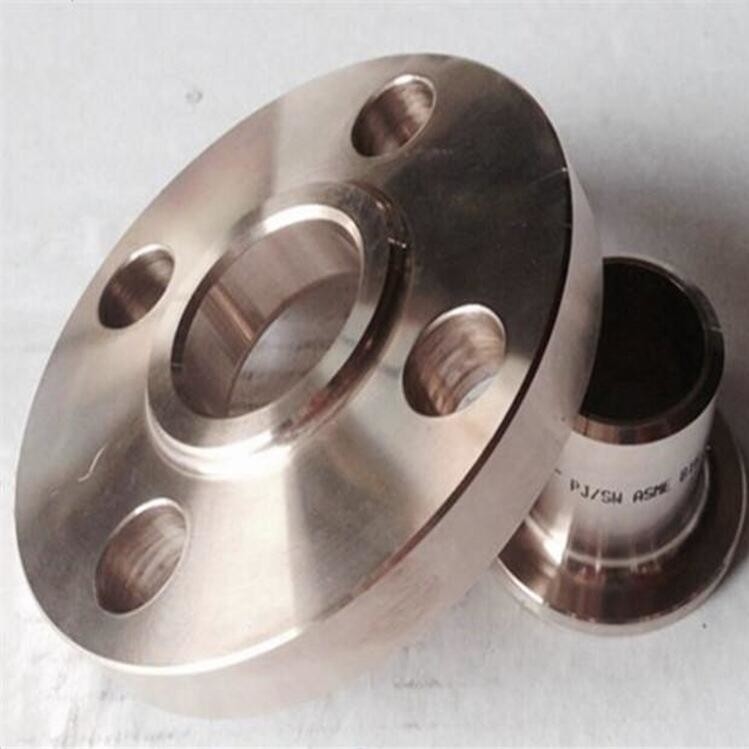

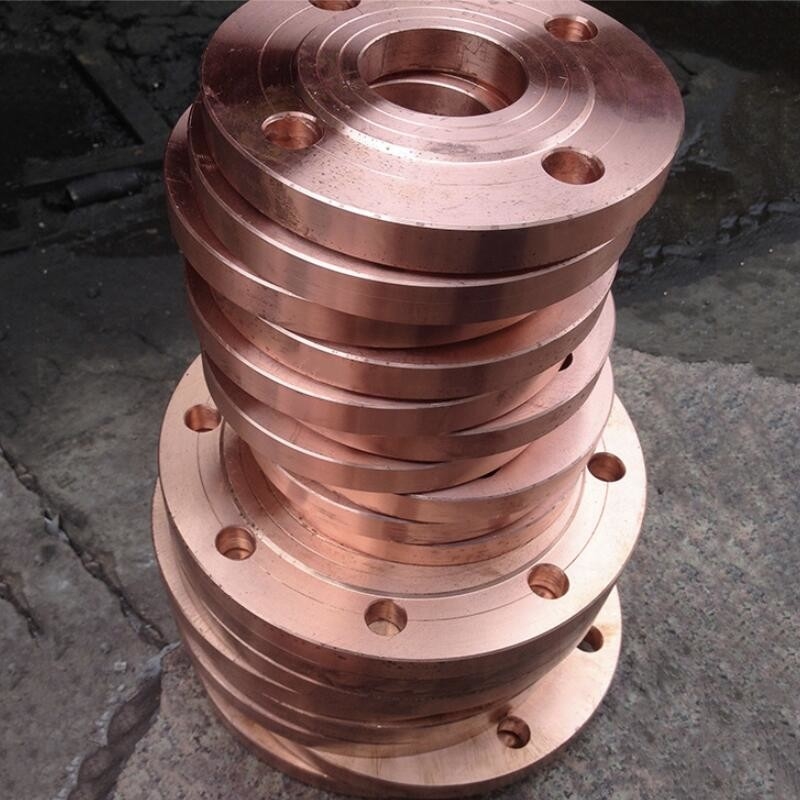

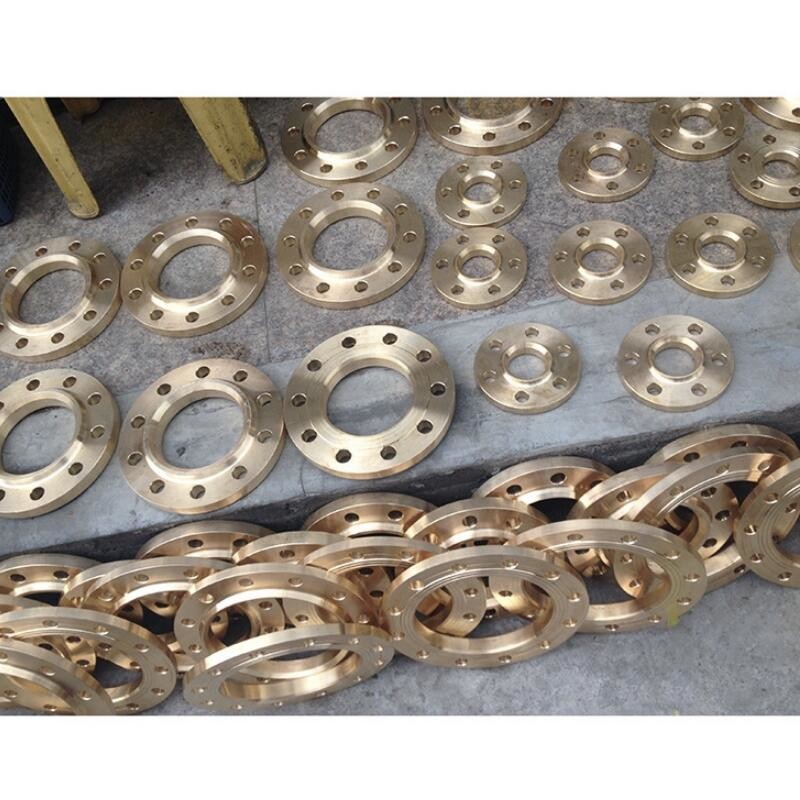

SO Flange, FFFE, BE, 6", S-10S, CL300, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)

  • SO Flange, FFFE, BE, 6", S-10S, CL300, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)
  • SO Flange, FFFE, BE, 6", S-10S, CL300, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)
  • SO Flange, FFFE, BE, 6", S-10S, CL300, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)
Place of Origin CHINA
Brand Name TOBO
Certification BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Forged Steel Flange
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 6000TONS/MONTH
Product Details
Pressure Class150,150#-2500#,5K-30K Logo Customized Logo
Port Shanghai Port Product Name Flange
Standard Or Nonstandard ASME B16.5 Application Gas, Petroleum, Auto Parts, Concrete Pump, Water
Type Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding Keyword Steel,A105,NPT Threaded Blind Flange,weld Neck Flange Ansi 150 Rf,Titanium
Highlight

6 inch forged steel flange

,

ASME B16.5 stainless steel flange

,

CL300 FFFE flange with warranty
Leave a Message
Product Description

SO Flange, FFFE, BE, 6", S-10S, CL300, ASME-B16.5, ASTM A182 Gr.F 44 (UNS $31254)

A182 F5 Equivalent


STANDARD WERKSTOFF NR. DIN UNS
ASTM A182 F5 Flanges 1.7362 12CRMO195 K41545


ASTM A182 F5 Chemical Composition


ID. Symbol* Cr Mo Others C Mn P S Si
ASTM A182 F5A Flanges 4.0-6.0 0.44-0.65 *B 0.25 0.60 0.040 0.030 0.50


ASME SA182 F5 Mechanical Properties


Grade Reduction of
Area, min. %		 Brinell Hardness
Number, HBW		 Tensile Strength
min. ksi[MPa]		 Yield Strength
min. ksi[MPa]		 Elongation, min. %
ASTM A182 F5 Flanges 35 143-217 70[485] 40[275] 20
Typical applications: Pulp and paper industry, flue gas desulphurization – FGD – systems, sea water heat exchangers, petroleum production and refining industry, mining industry – ore processing…

MECHANICAL PROPERTIES: BAR

YIELD STRENGTH
RP0.2
MPA		 TENSILE STRENGTH
RM
MPA		 ELONGATION
[%]		 HARDNESS
[HB]		 IMPACT
CHARPY-V, -196ºC
[J]		 PRE
≥ 276 ≥ 650 ≥ 40   ≥ 140 ≥ 48

HEAT TREATMENT

Solution annealing at min 1150°C followed by water quenching.

WELDABILITY

Very good.

ALLOY 1.4562 / UNS N08031 / ALLOY 31 PLATES

DESCRIPTION KG/PLATE
3 X 2000 X 8000 MM 408
5 X 2000 X 8000 MM

680
