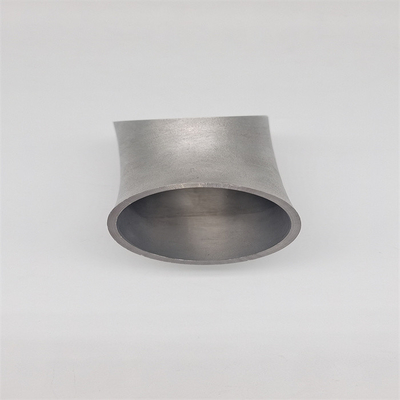

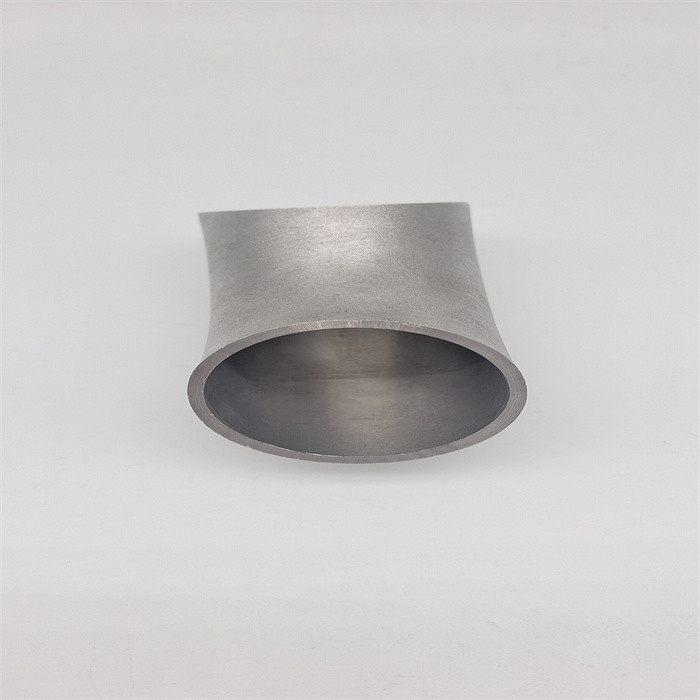

45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless

45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless
45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 45° Elbow, Short Radius, BE, BE, 2 45° Elbow, Short Radius, BE, BE, 2
Basic Information
Place of Origin: CHINA
Brand Name: TOBO
Certification: BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: ASTM A403 Grade WPS31254
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Material: Stainless Steel Technics: Seamless
Size: Customized Size Application: Connect Pipes,oil Pipelines
Type: Elbow Color: Customer's Requirement
Name: 45 Degree Elbow Shape: Equal
Highlight:

Seamless Steel 45 Degree Elbow

,

ANSI Stainless Steel 90 Degree Elbow

,

Curved Tube Stainless Steel Elbow

45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless



Nickel Alloy Butt Weld Fittings
Stainless Steel Butt Weld Fittings Short Reduce, 90 deg Elbow, 1/2" to 60" , sch40/ sch80, sch160 ,XXS B16.9Our traded products include nickel alloy butt weld fittings that are extensively used in diverse industries. These butt weld fittings conform to rds. Various grades of nickel alloy butt weld fittings are.
Standard: ASTM / ASME SB 336
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276).

Butt Weld Elbow (90°)
Stainless Steel Butt Weld Fittings Short Reduce, 90 deg Elbow, 1/2" to 60" , sch40/ sch80, sch160 ,XXS B16.9Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
° Prosaic Steel & Alloys manufactures pipe fitting devices which are bent in such a way to produce some degree (90, 45, 180 degree) changes in the direction of flow of the content in the pipe. Elbows are manufactured to meet different specifications, in terms of size and diameter. Prosaic Steel & Alloys manufactures & supplies high quality elbows that can be used for various applications. Our elbows are tested and verified for durability, accuracy and precision.
Prosaic Steel & Alloys manufactures forged, seamless & welded elbows (pipe fitting) of types 90° Elbows, 90° Elbow, 45° Elbows, 180° Elbow of socket weld, threaded type to ANSI B 16.9 from classes 2000 to 9000 and Schedules from 10 to 160 .
Prosaic Steel & Alloys manufactures elbow (pipefitting) accordance with BS standard from classes 2000 to 9000 lbs, Schedule 10 to 160.
Prosaic Steel & Alloys designs & manufactures elbows (pipe fittings) of special type made according to drawing on request.



ASTM A403 WPS31254 Stainless Steel Elbow

Stainless Steel 31254(SUS 312L,NAS 185N) is a high corrosion resistant austenitic stainless steel with a high nickel, high chromium, high molybdenum alloy design, and provides excellent corrosion resistance in severe corrosion environments such as high temperature seawater. ASTM A403 WPS31254.



Product Details

Stainless Steel 31254(SUS 312L,NAS 185N) is a high corrosion resistant austenitic stainless steel with a high nickel, high chromium, high molybdenum alloy design, and provides excellent corrosion resistance in severe corrosion environments such as high temperature seawater.

ASTM A403 WPS31254 Stainless Steel ELBOW



ASTM A403 WPS31254 Stainless Steel Elbow Details

Specification ASTM A403, ASTM SB 366, ASTM B564, ASME SB564, En 2.4816 UNS S31254
Dimensions Standards

ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43,

MSS-SP-75
Size Range S21354 Seamless Butt Weld Fittings: 1/2″ – 10″
S21354254 SMO Welded Butt Weld Fittings: 1/2″ – 48″
Wall Thickness 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80, STD, 60, 80, XS, 100, 120, 140, 160 Sch XXS
Type Seamless / Welded / ERW/ Fabricated / Forged
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Applicable Standards 1-ASME B 16.9 for large Bore
2-ASME B 16.11 for small Bore (socket welded)
3-ASME B 16.25 for butt weld ends
4-ASME B 16.28 for small radius elbow
End Prep

Beveled Ends

Squared Ends

Flanged Ends

Cut Grooves

Victaulic Grooves

Threaded Ends (Male & Female)
Surface treatment Sand Rolling, Sand Blasting, Acid Cleaning





Savoy Piping Inc. is one of the industry-leading manufacturers, traders, suppliers, and exporters of a wide range of ASTM A403 WPS31254 Buttweld Fittings. Stainless Steel A403 WPS31254 contains higher chromium and low carbon content. Lower carbon means less chromium carbide precipitation due to welding. This steel type contains as low as 0.03% of carbon content and thus reduces its susceptibility to intergranular corrosion. This kind of steel can be continuously exposed to temperatures of about 1500°F without appreciable scaling.

It is applicable in various applications like car headers, machinery parts, screws and also food handling equipment. We offer these DIN 1.4301 Stainless Steel Butt Weld Fittings in different forms like Tees, Reducers, Cross, Stub Bends, Elbow and End caps. SS UNS S30400 Butt Weld Pipe Elbow execute excellent forming and welding properties. This type of steel also shows excellent oxidation resistant properties. We develop all our products under international standards in top notch infrastructure facility to attain highest scales of quality.

Standard Specification For Stainless Steel ASTM A403 WPS31254 Pipe Fittings

Butt Weld Fitting Specification ASTM A403/ ASTM SA403, ASTM A815 / ASME SA815, ASTM A420 / ASME SA420, ASTM A234 / ASME SA234, ASTM A860 / ASME SA860, ASTM B366 / ASME SB366, DIN 2605 Part 1 / DIN 2605 Part 2, EN10253-2 / EN10253-4 TC1 and TC2
Butt Weld Fittings Manufacturing Process Hot / Cold / Fabricate / Seamless / Welded / Induction
Butt Weld Fittings Other Grades Stainless Steel - 304, 304L, 304H, 310s, 316, 316L, 317L, 321, 347, 904L, 410, 446 etc.
Carbon Steel - WPB, WPC, WPL6, WPHY42, WPHY46, WPHY52, WPHY56, WPHY60, WPHY65 etc.
Alloy Steel - WP5, WP9, WP11, WP22, WP91, 4140, Class 1, 2, 3 etc.
Duplex and Super Duplex - UNS N031803, UNS N032750, UNS N032760 etc.
Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc.
Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc.
Monel - 400, UNS N04400 etc.
Hastelloy - C276, C22, UNS N010276, UNS N06022 etc.
Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc.
Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc.
Other - Alloy 20, SMO 254, UNS N08020, UNS N031254 etc.

EN / DIN
P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H
16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44)
X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10
P215NL (TTST35N/V), 12Ni14 (10Ni14)
P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2, L290NB (STE 290.7), L360NB (STE 360.7)
1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878,, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910
Butt Weld Fittings Outer Diameter 1/2" NB TO 48" NB
Butt Weld Fittings Wall Thickness or Schedule Sch 10s to Sch XXS or As Per Custom Requirement
Butt Weld Fittings Types 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow, LR Elbow (Long Radius Elbow), SR Elbow (Short Radius Elbow), Equal Tee, Reducing / Unequal Tee, Concentric Reducer, Eccentric Reducer, End Cap, Long Stub End, Short Stub End, Lap Joint Stub End, Equal Cross, Reducing / Unequal Cross, Seamless Fittings, Welded Fittings, 1.5D, 3D, 5D etc.
Butt Weld Fittings Dimension ASME 16.9 - Factory-Made Wrought Buttwelding Fittings
ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns
MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Butt Weld Fittings Other Testing Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc.

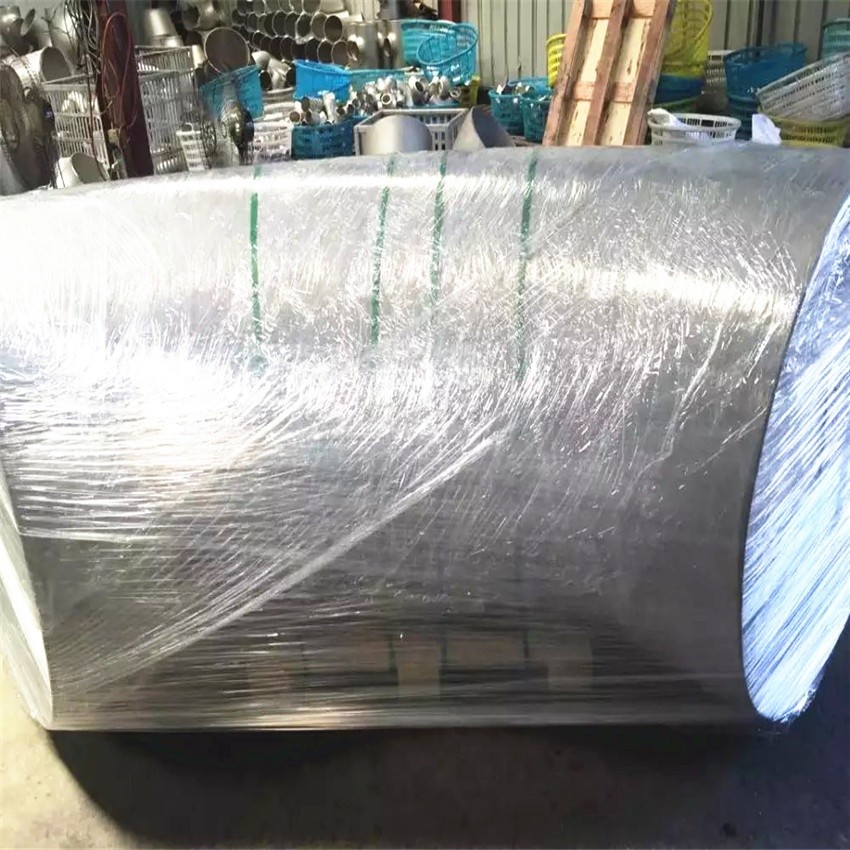

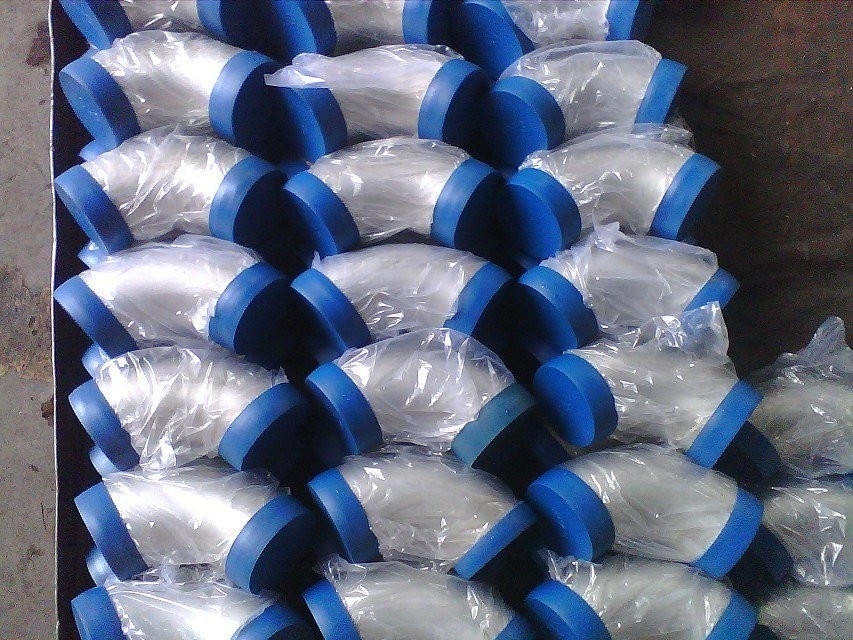

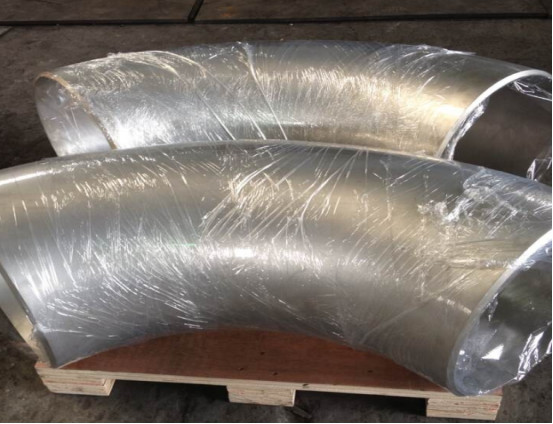

Butt Weld Fittings Packaging Carrate / Wooden Pallet / Wooden box-a
Butt Weld Fittings Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Butt Weld Fittings Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Indian Boiler Regulations - 1950, IBR Approved, Bureau of Indian Standards BIS Approved Etc.





45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 3

45° Elbow, Short Radius, BE, BE, 2", S-10S, ASME-B16.9, ASTM A403 Grade WPS31254,Seamless 4

FAQ






1.Q: Are you manufacture or trade company?
A:We are manufacture specialized in PVC pipes and rubber hoses ; Our produces have CE and ISO certification.


2.Q: How can I get the samples?
A:If you need some samples to test, we can make as per your request .You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order if the amount meets our requirement.

3.Q:How much the transportation freight of samples?
A:The freight depends on the weight and packing size and your area.

4.Q:How long can I expect to get the sample?
A:The samples will be ready for delivery within one week. The samples will be sent via express and arrive in 4-7 days.

5.Q:Can we have our Logo or company name to be printed on your products or package?
A:Sure.Your Logo can be put on your products by Hot Stamping,Printing,Embossing,UV Coating,Silk-screen Printing or Sticker.

6.Q:How to order?
A: Please send us your purchase order by Email or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order:
1) Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2) Delivery time required.
3) Shipping information-Company name, Street address, Phone &Fax number, Destination sea port.
4) Forwarder's contact details if there's any in China.
