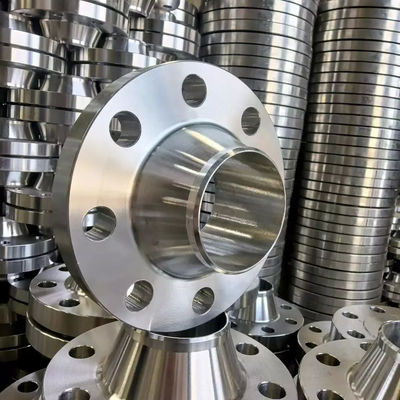

WN Flange, RJ, BE, 2", SCH40, CL900, ASME-B16.5, ASTM A182 Gr.F 44 (UNS 531254)
| Place of Origin | CHINA |
|---|---|
| Brand Name | TOBO |
| Certification | BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Forged Steel Flange |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | According to the qty |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 6000TONS/MONTH |
Product Details
| Application | Gas, Petroleum, Auto Parts, Concrete Pump, Water | Product Name | Flange |
|---|---|---|---|
| Pressure | Class150,150#-2500#,5K-30K | Keyword | Steel,A105,NPT Threaded Blind Flange,weld Neck Flange Ansi 150 Rf,Titanium |
| Type | Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding | Material | SS |
| Logo | Customized Logo | Standard Or Nonstandard | ASME B16.5 |
| Highlight | 2 inch forged steel flange,ASME B16.5 flange CL900,ASTM A182 F44 flange |
||
Product Description
WN flange, RJ, BE, 2", S-105, CL900, ASME-B16.5, ASTM A182 Gr.F 44 (UNS 531254)
ASTM A182 F44 Flange Mechanical and Physical Properties
ASTM A182 F44 Flange Chemical Compostion and Properties
The chemical composition of grade ASTM A182 F44 Flange is outlined in the following table
| Steel Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | N |
| F44 | 0.02 max | 0.8 max | 1.0 max | 0.030 max | 0.010 max | 19.5-20.5 | 17.5-18.5 | 6.0-6.5 | 0.50-1.00 | 0.18-0.22 |
| 1.4547 | 0.02 max | 0.7 max | 1.0 max | 0.030 max | 0.010 max | 19.5-20.5 | 17.50-18.50 | 6.0-7.0 | 0.50-1.00 | 0.18-0.25 |
ASTM A182 F44 Flange Physical Properties
Physical properties of ASTM A182 F44 grade stainless steel in the annealed condition
| Hardness (HB) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) (Long.) | Impact Value (J) (Long.) |
| 260 max | 650-850 | 300-340 | 35 min | 100 min |
ASTM A182 F44 Flange Definition
ASTM A182 is the Standard Specification for Forged Stainless Steel Pipe Flanges and Stainless Steel Forged Fittings.
ASTM 182 is use in pressure systems, Included are flanges, fittings and similar parts to specified dimensions or to dimensional standards, such as the ASME specifications.
ASTM A182 F44 Flange is Material to F44 Super Austenitic Stainless Steel is described as a 6% Mo Flanges super austenitic stainless
steel. The steel combines moderate mechanical strength (typically over 300 MPa yield strength) and high ductility with excellent corrosion resistance in seawater and a variety of industrial environments. Typically the alloy has a PREn(Pitting Resistance Equivalent) of 42-44 which ensures that the resistance to pitting corrosion is high. In addition, the steel provides good resistance to crevice corrosion.
Ambient and subzero temperature notch ductility is very good. These attributes mean that this high molybdenum stainless steel can be used successfully as an alternative to 300 series austenitic stainless steels (such as type 316) in applications where higher mechanical strength and/or
enhanced resistance to pitting and crevice corrosion is required. This alloy possesses a lower yield strength than that of duplex stainless steel (and much lower than that of super duplex steel) and pitting resistance which is comparable to super duplex stainless steel (such as UNS S32760 / S32750).
ASTM A182 F44 Flanges is readily available for applications in the industrial, architectural, and transportation fields.
Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of A182 F44 Flanges. The offered ASTM A182 F44 Flanges is designed with utmost precision in conformity with the international quality standards.
ASTM A182 F44 Flange Exported Countries
We Export ASTM A182 F44 Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
ASTM A182 F44 Packing Shipment
ASTM A182 F44 Flange is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and e for Transport with Proper Strips on Wooden Box, having Lifting Point.
ASTM A182 F44 Flanges Supplying in States and Cities
We Supply ASTM A182 F44 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of ASTM A182 F44 Flanges, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in ASTM A182 F44 Flanges in India and Overseas, offering a wide range of ASTM A182 F44 Flanges
