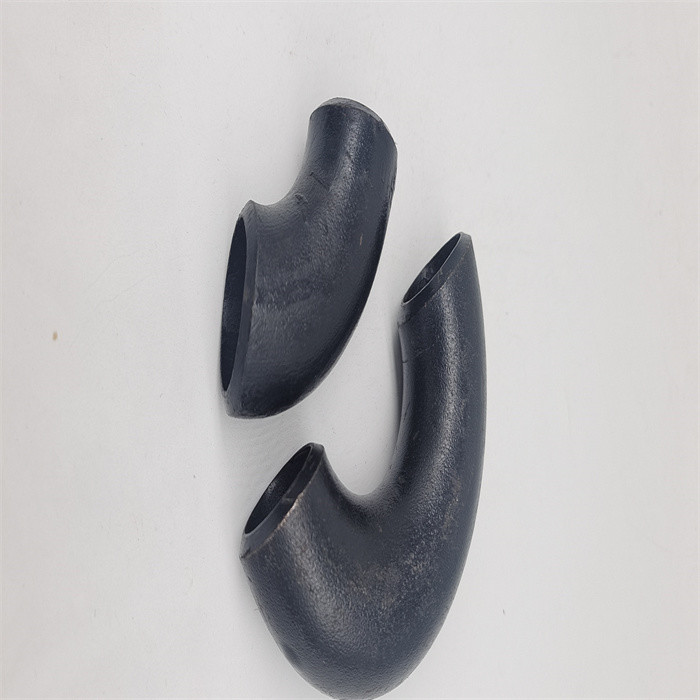

45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

  • 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
  • 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
  • 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
Place of Origin CHINA
Brand Name TOBO
Certification BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 Grade WPS31254
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 7500 tons per year
Product Details
Shape Equal,ROUND,Equal & Reducing Type Elbow,Coupling,seamless,welding
Size Customized Size Application Connect Pipes,oil Pipelines,Food,Industry,Fire
Head Code Round,Square,Hexagon Packing Inner Poly Bag,Plastic Bag+Carton,plywood Case Or Pallet,According Customer's Requesment
Color Customer's Requirement Surface As Customer's Requirement
Thickness Standard Schedule
Highlight

Seamless Steel 45 Degree Elbow

,

ANSI Stainless Steel 90 Degree Elbow

,

Curved Tube Stainless Steel Elbow
Leave a Message
Product Description

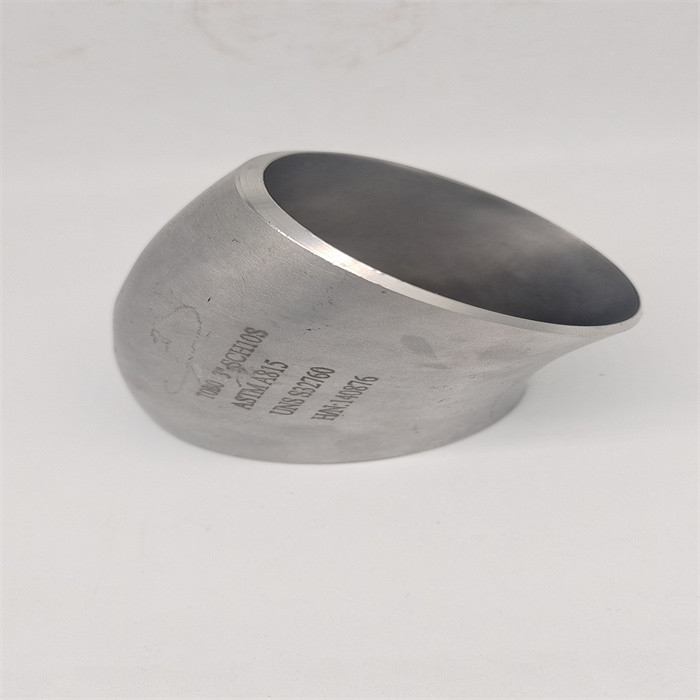

45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112



ASTM A234 WPB Standard Specification

45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

ASTM A234 is Standard Specification for steel pipe fittings includes carbon and alloy steel material for moderate and high temperature services.

Forging is the manufacturing process of ASTM A234 WPB pipe fittings.

  • W = WELDABLE / wrought
  • P = RELATED TO P NUMBER OF ALLOY MATERIAL
  • B = REFER TO MINIMUM YIELD OF MATERIAL


ASTM A234 Scope

1.1 This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, and MSS-SP-95. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. Fittings differing from these ASME and MSS Standards shall be furnished in accordance with Supplementary Requirement S58 of Specification A 960/A 960M.

1.2 Optional supplementary requirements are provided for fittings where a greater degree of examination is desired. When desired, one or more of these supplementary requirements may be specified in the order.

1.3 This specification does not cover cast welding fittings or fittings machined from castings. Cast steel welding fittings are governed by Specifications A 216/A 216M and A 217/A 217M.

1.4 This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable “M” specification designation (SI units), the material shall be furnished to inch-pound units.

1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification.

GENERAL NOTE: All values are maximum unless otherwise indicated.

Mechanical properties of ASTM A234

Tensile Requirements WPB WPC, WP11CL2 WP11CL1 　WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85 　75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585] 　[520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]

Where the wall thickness lies between two values above, the min elongation value is determined by the following equations:

  • Longitudinal E=48t+15.00
  • Transverse E=32t+10.00
  • E = elongation in 2in [50mm], %
  • t = actual thickness of specimen, in [mm]

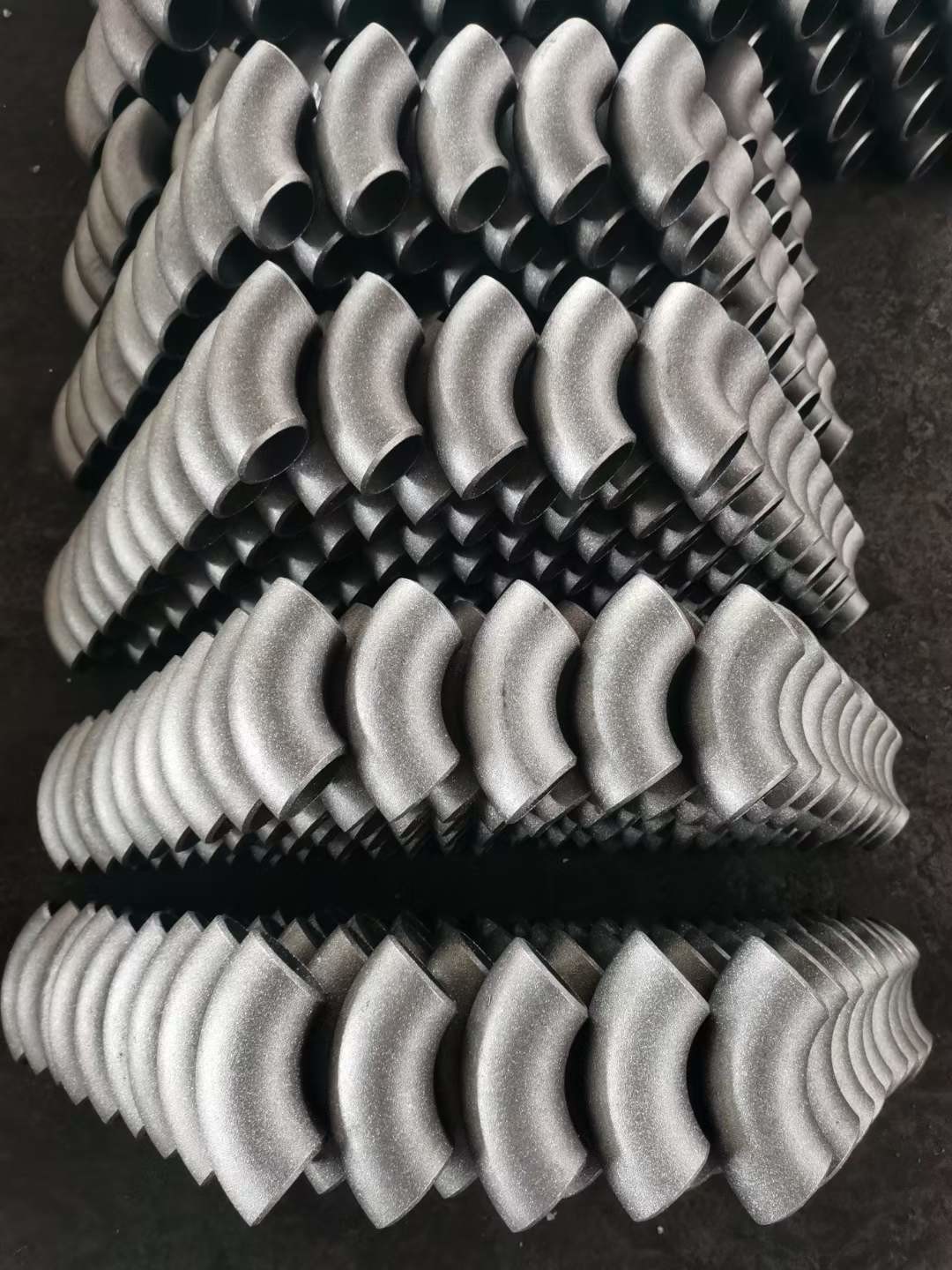

45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112



FAQ



1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
