1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
Basic Information
Place of Origin: CHINA
Brand Name: TOBO
Certification: BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: ASTM A403 Grade WPS31254
Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 7500 tons per year
Get Best Price Contact Now
Application: Connect Pipes,oil Pipelines,Food,Industry,Fire Head Code: Round,Square,Hexagon
Packing: Inner Poly Bag,Plastic Bag+Carton,plywood Case Or Pallet,According Customer's Requesment Shape: Equal,ROUND,Equal & Reducing
Size: Customized Size Type: Elbow,Coupling,seamless,welding
Color: Customer's Requirement Surface: As Customer's Requirement
Thickness: Standard Schedule
Highlight:

WPB Stainless Steel Elbow Fitting

,

Equal Seamless Stainless Steel Pipe

,

45 Degree Elbow Fitting

1” 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112



What is Steel pipe fittings

Steel pipe fitting are made of carbon or alloy steel pipe, plates, profiles, to a certain shape that could make a function (Change the fluids direction or rate) in pipeline systems. Mostly these fittings includes steel elbow (45 or 90 degree bend), tee, reducer (concentric or eccentric reducer), cross, caps, nipple, flanges, gasket, studs and etc.

For industrial purposes, in pipeline systems usually we need to change the transmission direction; Adjust fluids (oil and gas, water, slurry) flow rate; Open or close the pipelines, etc. So to complete these activities, steel pipe fittings will be applied.

What is ASTM A234 WPB

ASTM A234 is Standard Specification for steel pipe fittings includes carbon and alloy steel material for moderate and high temperature services. It covers steel fittings of seamless and welded types. Steel Pipe fittings are applied in pressure pipelines and in pressure vessel fabrications. These fittings material consist of killed steel, forgings, bars, plates, seamless or HFW (fusion welded) pipe products, with filler metal added.

ASTM A234 includes wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASTM B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. etc.

As we know, ASTM A234 steel pipe fittings are used in pressure piping and in pressure vessel fabrication, for services at moderate and elevated temperatures. The fittings material in this standard consist of killed steel, forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added.

In this standard it covers the specification of elbows, tees, reducers, caps and cross, it usually adopt butt welding ends.

ASTM A234 Scope



1.1 This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, and MSS-SP-95. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. Fittings differing from these ASME and MSS Standards shall be furnished in accordance with Supplementary Requirement S58 of Specification A 960/A 960M.

1.2 Optional supplementary requirements are provided for fittings where a greater degree of examination is desired. When desired, one or more of these supplementary requirements may be specified in the order.

1.3 This specification does not cover cast welding fittings or fittings machined from castings. Cast steel welding fittings are governed by Specifications A 216/A 216M and A 217/A 217M.

1.4 This specification is expressed in both inch-pound units and in SI units. However, unless the order specifies the applicable “M” specification designation (SI units), the material shall be furnished to inch-pound units.

1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification.

GENERAL NOTE: All values are maximum unless otherwise indicated.

Mechanical properties of ASTM A234

Tensile Requirements WPB WPC, WP11CL2 WP11CL1 　WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85 　75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585] 　[520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]

Where the wall thickness lies between two values above, the min elongation value is determined by the following equations:

  • Longitudinal E=48t+15.00
  • Transverse E=32t+10.00
  • E = elongation in 2in [50mm], %
  • t = actual thickness of specimen, in [mm]

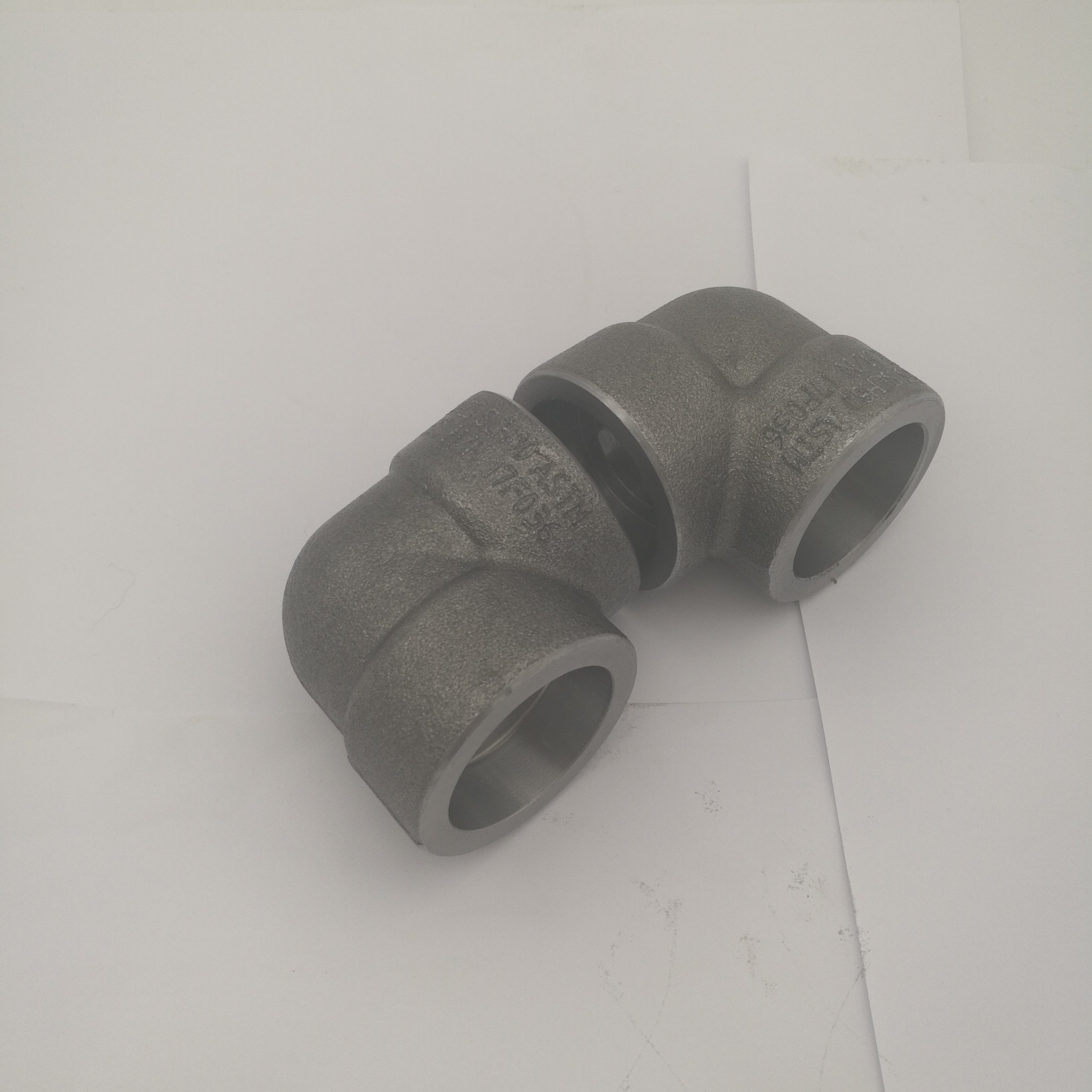

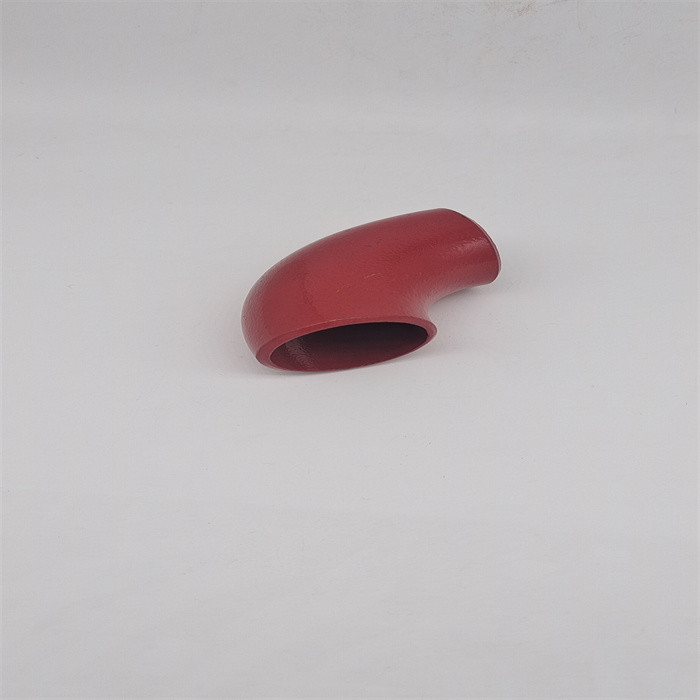

1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 0

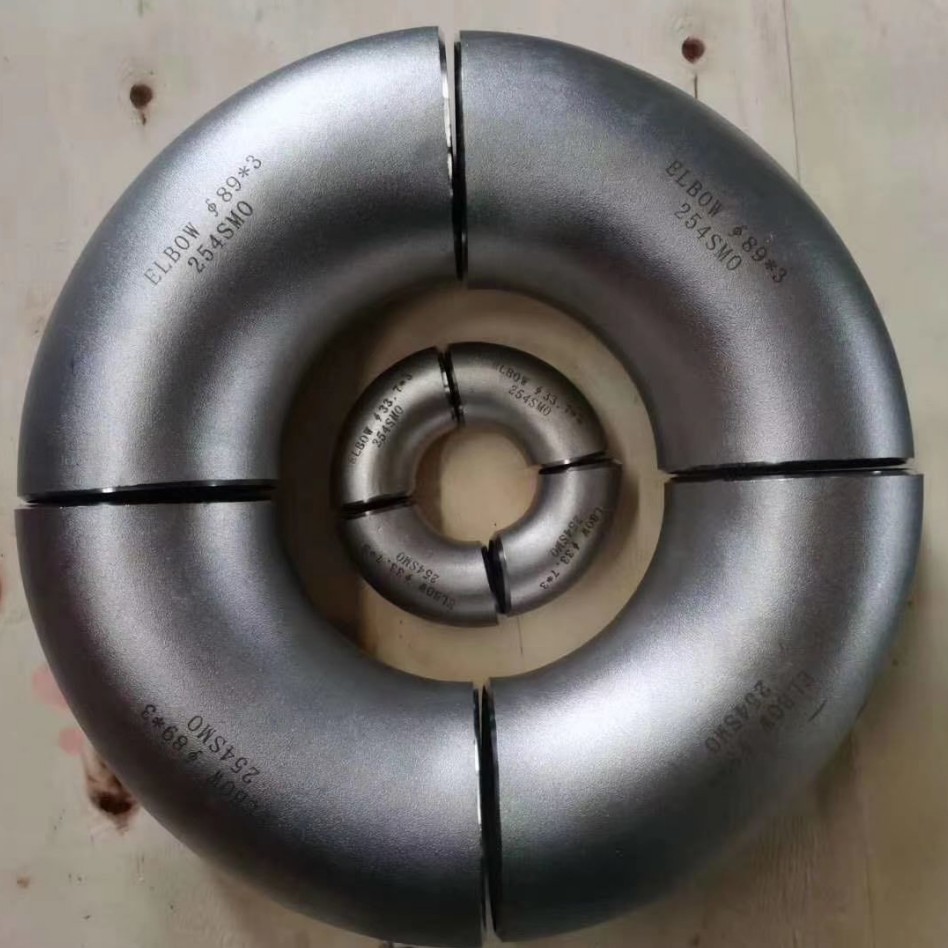

1“ 90° Elbow Short Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112 1
