3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

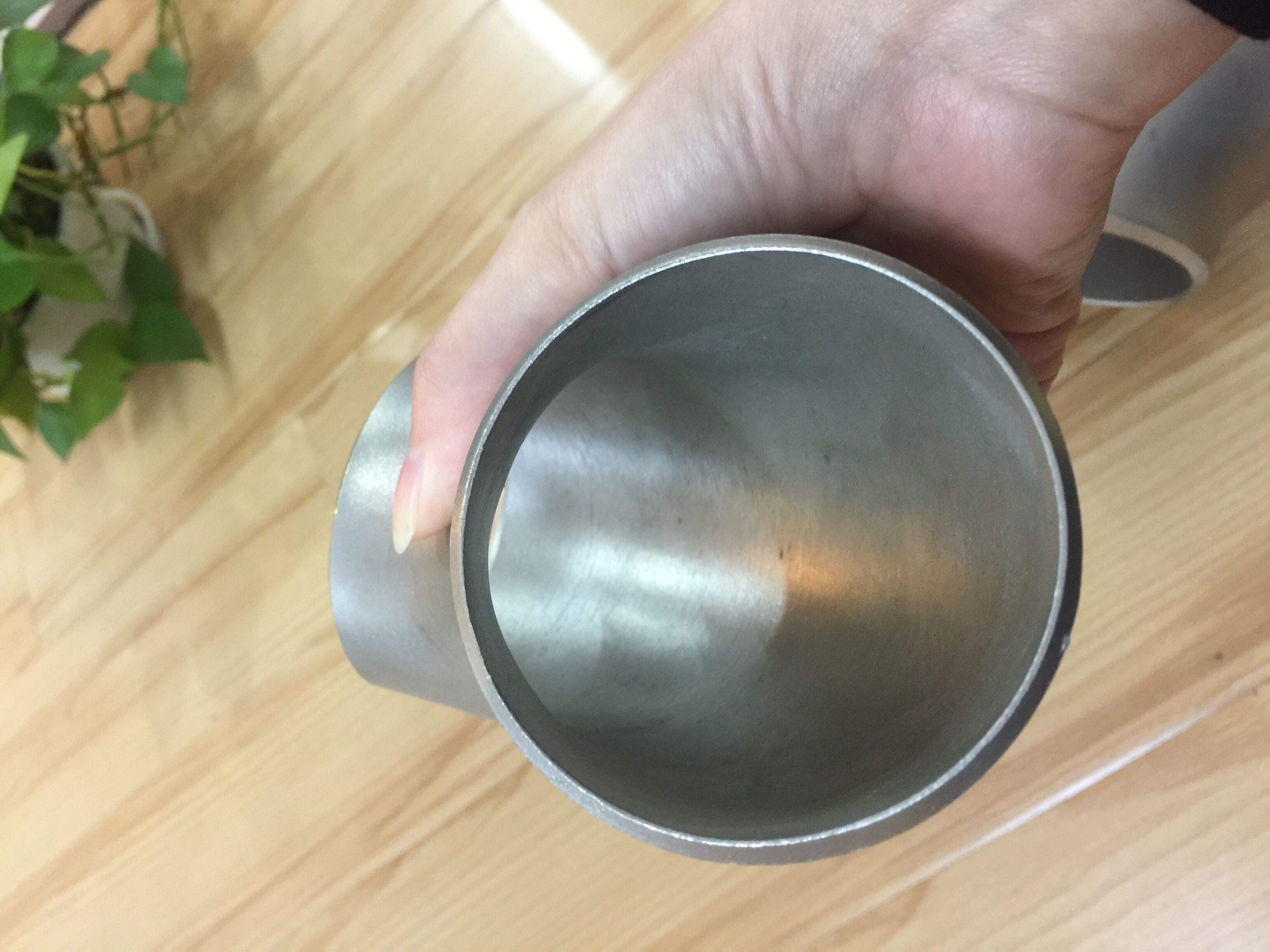

  • 3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
  • 3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
  • 3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
Place of Origin CHINA
Brand Name TOBO
Certification BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 Grade WPS31254
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 7500 tons per year
Product Details
Type Elbow,Coupling,seamless,welding Head Code Round,Square,Hexagon
Packing Inner Poly Bag,Plastic Bag+Carton,plywood Case Or Pallet,According Customer's Requesment Shape Equal,ROUND,Equal & Reducing
Color Customer's Requirement Surface As Customer's Requirement
Size Customized Size Application Connect Pipes,oil Pipelines,Food,Industry,Fire
Thickness Standard Schedule
Highlight

WPB Stainless Steel Elbow Fitting

,

Equal Seamless Stainless Steel Pipe

,

45 Degree Elbow Fitting
Leave a Message
Product Description

3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112





ASTM A234 steel pipe fittings dimensions

Standards: ANSI /ASME B16.9, B16.28, MSS-SP-43.
Outer Diameter Range: 1/2” to 48”
Thickness Range: SCH 10, sch 20, SCH 40, SCH STD, SCH 80, SCH XS, SCH 160, SCH XXS etc.
Steel pipe fittings manufacturing types in forged, threaded, butt weld, and seamless.

Alloy steel pipe fittings grades in ASTM A234

The alloy steel pipe fitting is fabricated with alloy elements in such as Chrome, Molybdenum, Nickel alloy, Hastelloy alloy, Monel, Inconel, and etc. To get a higher pressure ratings, better strength, good corrosive resistance, and longer durability. It is widely used in oil and gas pipelines, chemical industries, power plants, nuclear power sites, and in server conditions.

Alloy steel pipe fittings includes buttweld fittings, alloy steel long radius bend, alloy steel forged fittings and so on.

The alloy steel buttweld fittings adopts ASTM A234 standard, has WP1, WP5, WP11, WP12, WP22,WP23 and WP91 grades. Class level in CL1, CL2, CL3.

ASTM A234 alloy steel pipe fittings includes alloy steel elbows in long and short radius, alloy steel eccentric & concentric reducer, alloy steel caps & crosses, alloy steel couplings, alloy steel tees, alloy steel nipples, alloy steel caps and etc more forms. It has seamless, welded and fabricated types.

For alloy steel forged fittings, it adopts ASTM A182 standard refers to steel pipe flanges. Material standard in ASTM A182 F1, F5, F9, F11 Class 1, F12 Class 1, F22 Class 1 ETC.



For other grades:
3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

Mechanical properties of ASTM A234 WPB pipe fittings

Tensile Strength 60,000 pis 415 Mpa
Yield Strength 35,000 psi 240 Mpa
Pressures Ratings: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2000 LBS, 3000 LBS to 9000 LBS.

For other grades in ASTM A234:
3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112



ASTM A234 WPB steel pipe fitting chemical and mechanical features

Grade WPB fittings made from the steel pipes or plates maximum C is 0.35%.

Forging fittings Carbon content 0.35% maximum and Silicon content 0.35% maximum, no minimum.

For each reduce of 0.01 of Carbon content, Manganese maximum content increase 0.06%, up to the maximum 1.35% for Mn.

Copper, Nickel, Niobium and Molybdenum sum content shall not exceed 1.00%.

Niobium + Molybdenum shall not exceed 0.32%.



3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112

3" 45° Elbow Long Radius ASME B16.9 BW WROUGHT-S ASTM A 234 GR. WPB GA-E-60112
