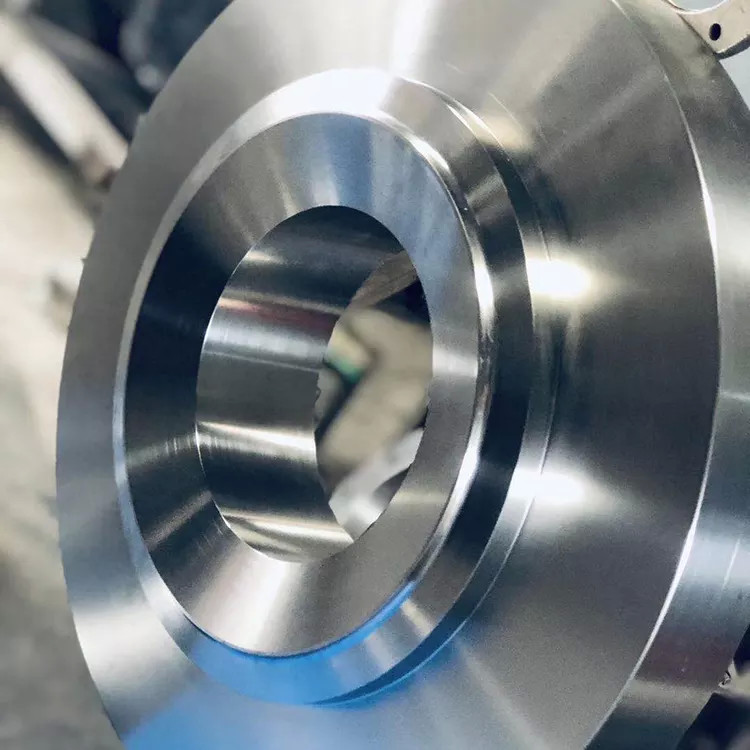

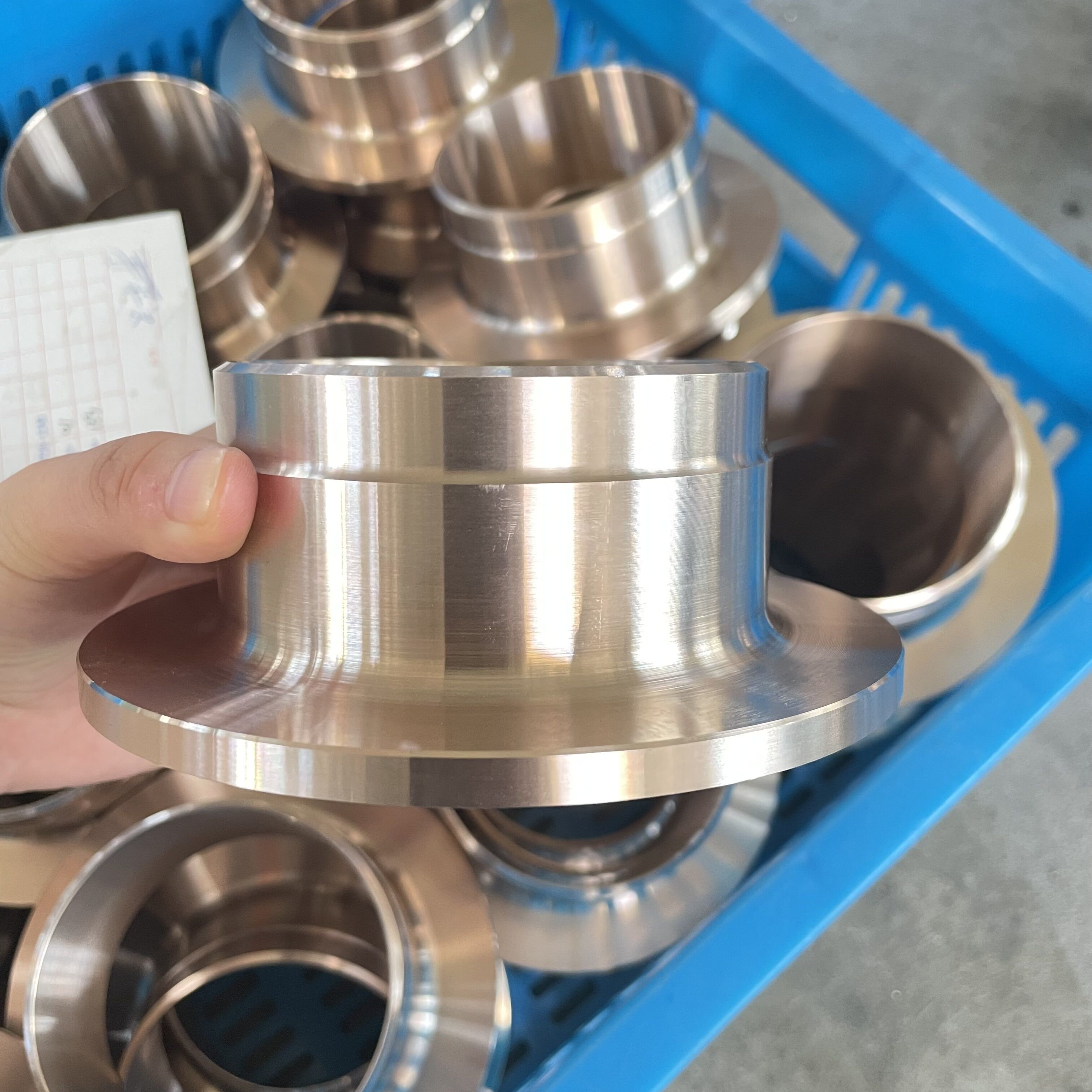

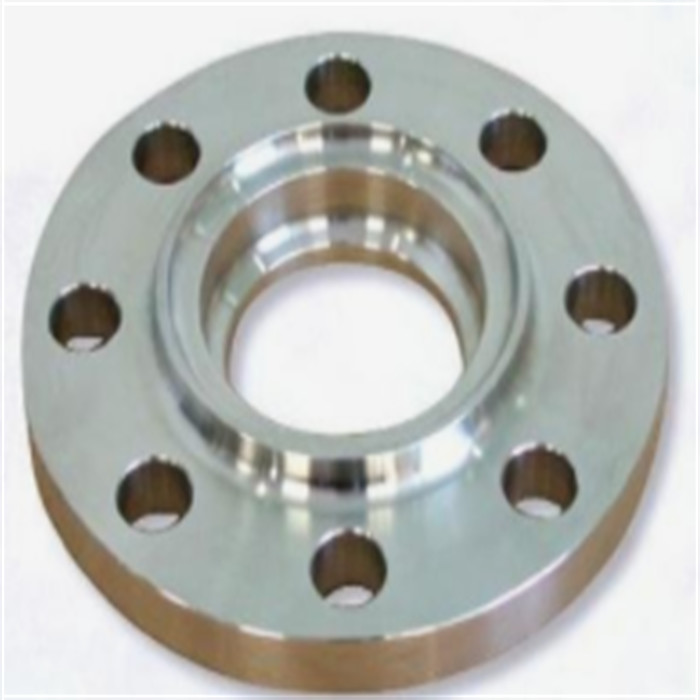

2“ SW Flange MFM ASME B16.47 SERIE A FLG x BW 900 R.F. (125-250 AARH) FORGED ASTM A 694 F65 GA-E-60103

Basic Information

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	ASTM A403 Grade WPS31254

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	According to the qty
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Color:

Customer's Requirement

Thickness:

Standard Schedule

Packing:

Inner Poly Bag,Plastic Bag+Carton,plywood Case Or Pallet,According Customer's Requesment

Pressure:

Class150/300/600/9001500/2500,Class150,150#-2500#

Name:

Flanges

Size:

Customized Size

Type:

Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding

Surface:

As Customer's Requirement

Check ASTM A105N Fittings Specification, ASTM A105N Equivalent Indian Standard.

A derivative of specification ASTM A105 which could be used in environments where the temperatures range between ambient to high temperatures; the ASTM A105N Fittings were developed to be used in applications involving low temperatures. Although both specifications use the same raw materials, have the same steel grades, but the difference between them is that SA-105 Normalized Fittings have a specific requirement, with regards to its heat treatment. Although the chemistry of both specifications is the same, the mechanical properties of ASTM A105N Forged Fittings are better suited to critical conditions. These fitting have been furnished by heat treating them using a normalizing process. Hence the term N in the ASTM A105N Forged Fittings stands for the component in a normalized condition.

Chemical Properties Of ASTM A105 Carbon Steel Flange

ELEMENT	COMPOSITION, %
Phosphorus	0.035 max
Sulfur	0.040 max
Silicon	0.10-0.35
Carbon	0.35 max
Manganese	0.60-1.05
Copper	0.40 max (1)
Molybdenum	0.12 max (1-2)
Vanadium	0.08 max
Nickel	0.40 max (1)
Chromium	0.30 max (1-2)

ASTM A105 Carbon Steel Flanges Physical Properties

Density (lb / cu. in.)	0.284
Specific Heat (Btu/lb/Deg F – [32-212 Deg F])	0.107
Melting Point (Deg F)	2740
Thermal Conductivity	360
Specific Gravity	7.9
Mean Coeff Thermal Expansion	6.7
Modulus of Elasticity Torsion	11
Modulus of Elasticity Tension	30

Mechanical Characteristics Of SA 105 Flange

MECHANICAL PROPERTIES	REQUIREMENTS
Yield strength,min,psi [MPa]	36000 [250]
Tensile strength,min,psi [MPa]	70000 [485]
Elongation, min, %	30
Hardness,HB,max	187
Reductionofarea,min,%	30

We Keep Ready Stock of Class 150 ASTM A105n Flange. Refer A105 Lap Joint Flange Weight Chart

Biggest CS A105 Forged Flange Supplier, Refer Dimensions of Asme Sa105 Weld Neck Flanges

There are different weights to the different dimensions of flanges as well. You can contact us to get a ASTM A105 flanges weight chart to understand more about the flange weights and to choose from a host of flanges. As a flange a105 manufacturer we can also supply you with custom dimensions of flanges as well. We are manufacturer of A105 Forged Steel Flanges as per requirement of clients. Our prices are very competitive to the A105 flanges price list india and you can place bulk orders to reduce your cost. Since we manufacture, stock and supply, our ASTM A105 carbon steel flangesare sold at lower prices by eliminating the middlemen. We are leading supplier of ASTM A105n Flange.

ASTM A105 Flange Manufacturer

Table of Content

ASTM A105n Flange Manufacturer

2“ SW Flange MFM ASME B16.47 SERIE A FLG x BW 900 R.F. (125-250 AARH) FORGED ASTM A 694 F65 GA-E-60103 2

FAQ

1.How can I get the price?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us
or contact us in other ways so that we can offer you a quote.

2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

3.What is your lead time?

-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity,
and about 30 days for large quantity.

4.What is your payment term?

-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5.What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.

6.How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them,no matter where they come from.
