Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver

  • Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver
  • Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number TOBO082
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Payment Terms L/C, T/T
Supply Ability 100000PC/MONTH
Product Details
Product Name Flange Thickness Sch10
Product Type Blind Flange Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Standard Or Nonstandard Standard Delivery Time 15 Working Days
Material Stainess Steel Price Negotiation
Highlight

stainless steel blind flange

,

class 200 forged steel flange

,

DN15 ASTM A182 flange
Leave a Message
Product Description

Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver

Quick Details

Place of Origin:
China
Brand Name:
TOBO
Model Number:
Blind flange
Standard:
ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS
Flange Type:
Blind Flange(BL Flange)
Color:
Customer's Requests
Pressure:
PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160
OEM:
Accept
Type:
SO,SW,WN,TH,BL,LJF
Technics:
Forged Casting
Flange material:
Carbon Steel / Q235 / Stainless Steel
Coating:
black paint, yellow transparent paint
Packing:
Wooden Pallet/case,Carton box
Transportation:
Bulk Vessel
Supply Ability
Supply Ability
10000 Ton/Tons per Month Flange
Packaging & Delivery
Packaging Details
International Standard Wooden Box Packing.
Port
Tianjin,Shanghai

Lead time
Quantity(pieces) 1 - 100 >100
Est. Time(days) 30 To be negotiated

Description

Blind flange is like a flange cover, also called blind disk or flanged pipe plug. Blind flange has no holes in the center, for to seal the pipe opening. So it's function is the same as the pipe plug or the pipe cap. The difference is blind flange is a
detachable equipment, easy to replace or do maintenance.

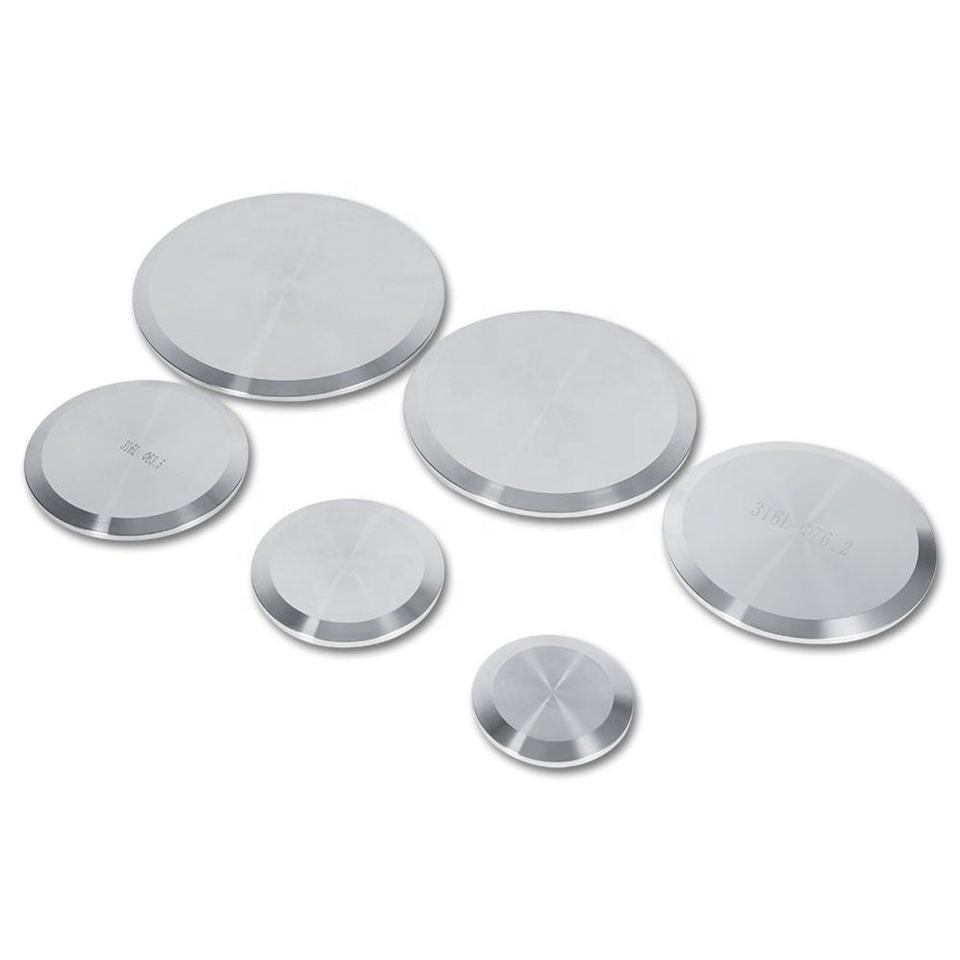

Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver 0

Size

Blind flange:1/4″-160″

DN8-DN4000

Pressure

America Series:Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.

Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.

Flange Facing Types

America Series:Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)

Europe Series:Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)

Material

Carbon steel: ASTM A105,ASTM A105N,GB 20,C22.8.

Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911

Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti

ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6

High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Standard

ASME ANSI B16.5,ASME ANSI B16.47.

API 605,API 6L.

MSS SP 44

CSA Z245.12

EN1092-1,EN1759-1.

DIN2527.

BS1560,BS 4504,BS 10.

AFNOR NF E29-200-1

ISO7005-1

AS2129

JIS B2220

UNI 2276. UNI 2277.UNI 2278 .UNI 6089 .UNI 6090

Industrial Processes

Die forging,Machining.

Markets for Blind flanges

Natural gas,chemical,petroleum,ship building,marine,paper making, metallurgy, electric, power, boiler , etc.

Application

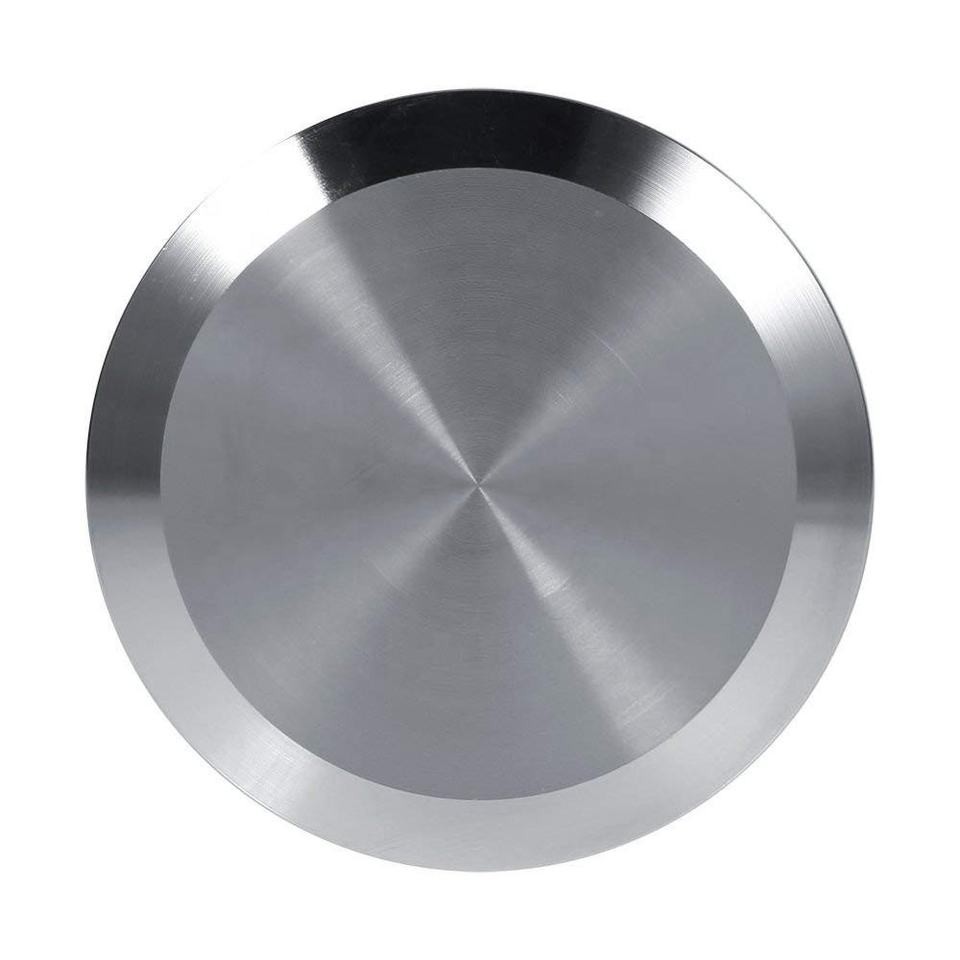

Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver 1



Blind Flange Stainless Steel Class 200 1/2'' DN15 ASTM A182 Sliver 2

FAQ

Q1. Are you trade company or factory?

A: We are trading company in shanghai, but we have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Welcome to visit us.


Q2: Do you provide free samples? If not, how do you charge for it?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q3. What can you buy from us?
A. The main forgings are the design forging processing of mechanical parts for automobiles, railroad forgings, agricultural machinery forgings,hole forging of valve body, connecting nut of oil pipeline, rigging ect.

Q4. Why is forged metal stronger than cast or machined metal?
This stems from the grain flow caused through forging. As the metal is pounded the grains deform to follow ​the shape of the part, thus the grains are unbroken throughout the part. Some modern parts take advantage of his for a high strength-to-weight ratio

Q5. How long is your delivery time?
A. Lead time is about 10-25 days. Orders with numerous kinds of parts will take more days.

Customers at home and abroad are welcome to write and talk about business.
