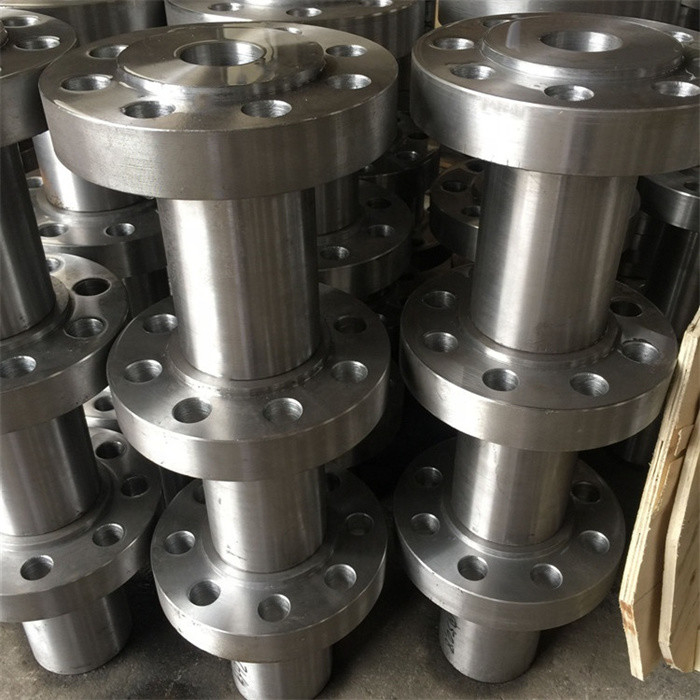

6"FLANGE, LWN, RTJ,THICKNESS 80S ASTM A182 F1CL900# SCH.20 ASME B16.5

F1 A182 Alloy Steel Flanges is an alloy steel formulated for primary forming into wrought products. Its specified properties are appropriate for the annealed condition. F1 is the ASTM designation for this material and its UNS number is K12822.

A182 F1 Cl2 Pipe Flanges has a very low electrical conductivity among wrought alloy steels in the same category. In addition, it has a moderately low embodied energy and base cost.
A182 F1 material is a forging material specification for F1 grade alloy steel and it is used for manufacturing bare forgings or forged and machined products for applications which involves high temperature service.
F1 steel Plate Flange is often a cost effective solution, when raised faces and hubs are not required and for the applications with no or low pressure at ambient temperatures.

ASTM A182 F1 Lap Joint Flanges is a two piece device that is much like a weld-neck flange but also like a loose slip-on flange. It has an advantage to swivel around the stub end and pipelining.


ASTM A182 Gr F1 Flanges Material Specification Chart

Price of SA 182 Gr F1 Plate Flange

Type	Description	USA FOB Price		Malaysia FOB Price		Europe FOB Price		Singapore FOB Price		Saudi Arabia (KSA) FOB Price
		Unit Per mtr		Unit Per mtr		Unit Per mtr		Unit Per mtr		Unit Per mtr
ASTM A182 F1 Flanges	Size : 12"NB x 300LB WNRF ,	US $	250.2	Malaysia Ringgit	1018.31	Euro	210.17	Singapore Dollar	335.27	Saudi Riyal	938.25



A182 F1 Cl2 Blind Flange Chemical Composition Chart

Grade	C	Mn	Si	P	S	Cr	Mo
Alloy Steel F1	0.15 max	0.3-0.6	0.5	0.03	0.03	4-6	0.44-0.65

Equivalent Of ASTM A182 Gr F1 Flanges

STANDARD	UNS	DIN WERKSTOFF NR.	DIN
Alloy F1	K12822	1.5415	15M03

SA 182 Gr F1 Slip on Flange Mechanical Properties Analysis

Tensile Strength	Yield Strength (0.2%Offset)	Elongation
275	485	20 %

ASTM A182 Gr F1 Flanges Pressure Rating

Temperature °F	Class 900	Class 150	Class 600	Class 400	Class 1500	Class 300	Class 2500
-20 to 100	2085	265	1390	925	3470	695	5785
200	2035	260	1360	905	3395	680	5660
300	1955	230	1305	870	3260	655	5435
400	1920	200	1280	855	3200	640	5330
500	1865	170	1245	830	3105	620	5180
600	1815	140	1210	805	3025	605	5040
650	1765	125	1175	785	2940	590	4905
700	1705	110	1135	755	2840	570	4730
750	1595	95	1065	710	2660	530	4430
800	1525	80	1015	675	2540	510	4230
850	1460	65	975	650	2435	485	4060
900	1350	50	900	600	2245	450	3745
950	845	35	560	375	1405	280	2345
1000	495	20	330	220	825	165	1370



ASME SA182 F1 Cl2 flanges Types

F1 A182 Flange



A182 F1 Cl2 Blind Flange



ASTM A182 F1 Slip On flange



ASTM A182 Gr F1 Flange

A182 Grade F1 Plate Flange



SA 182 Gr F1 Flanges
