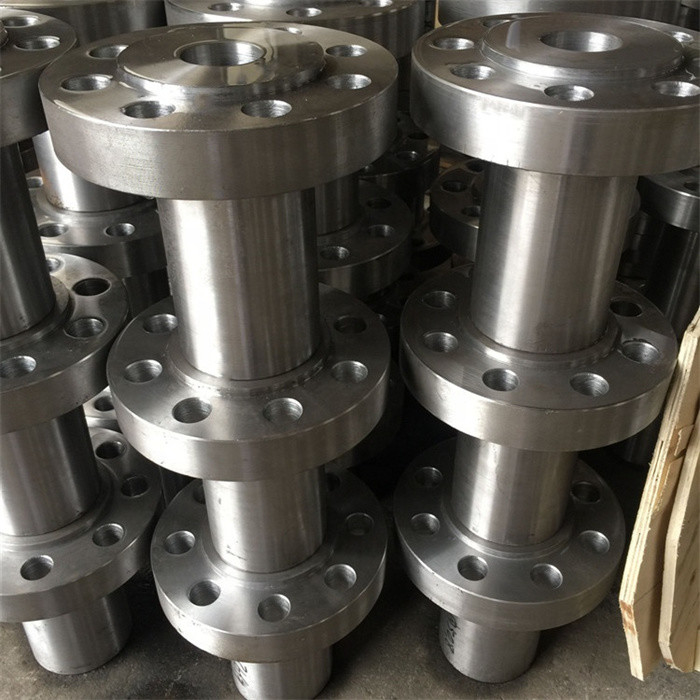

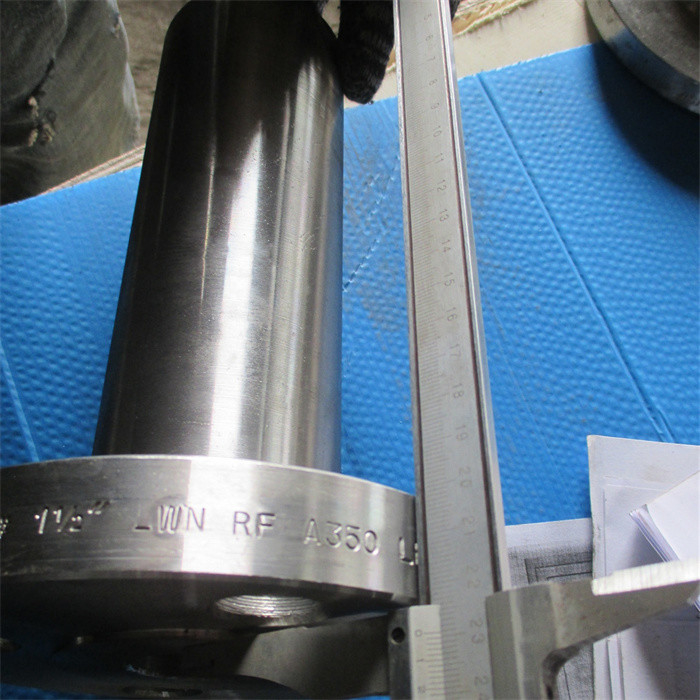

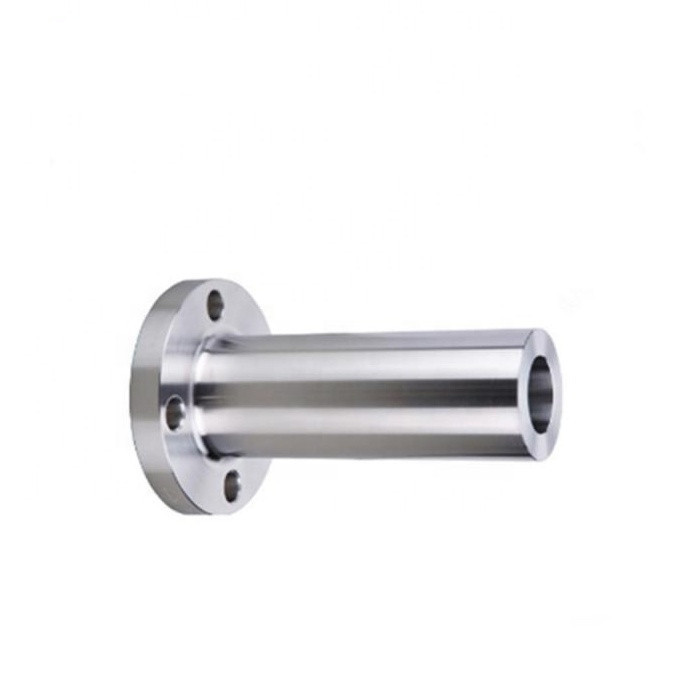

Stainless Steel LWN FLANGE ASTM A182 F304 ASME B16.5 SIZE: 1/2"-24"- 2500#, SCH.80 RF FF RTJ

Basic Information

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	ASTM A403 Grade WPS31254

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	According to the qty
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Thickness:	Standard Schedule	Pressure:	Class150/300/600/9001500/2500,Class150,150#-2500#
Size:	Customized Size	Color:	Customer's Requirement
Surface:	As Customer's Requirement	Packing:	Inner Poly Bag,Plastic Bag+Carton,plywood Case Or Pallet,According Customer's Requesment
Name:	Flanges	Type:	Blind,weld Neck Flange,threaded,Pipe Flange,socket Welding

Stainless Steel LWN FLANGE ASTM A182 F304 ASME B16.5 SIZE: 1/2"-24"- 2500#, SCH.80 RF FF RTJ

ASTM A182 F304 Stainless Steel Flanges

ASTM A182 F304 Stainless Steel Flanges are the most commonly used flanges from all the other austenitic stainless steel grades. The content of chromium in the Stainless Steel 304L Flanges ranges between 15 % and 20 %, while the alloy used to make these flanges contains nickel between the range of 2% to 10.5%. In the SS 304L Blind Flange metals such as chromium and nickel are the main non-iron or non-ferrous constituents. As compared to carbon steel, SS 304L Slip On Flange is less electrically as well as thermally conductive. Further, these SS 304 Blind Flange tend to essentially have a non-magnetic nature. Since the A182 Gr F304L SORF has a higher resistance to corrosion in comparison to regular steel grades, it is relatively easy to form into various shapes stainless steel 304 is the most widely used grades across a variety of sectors.

In the term ASTM A182 F304L Flanges, the Specification is ASTM A182, which in turn is a Standard meant for either Forged or Rolled Alloy as well as Stainless Steel Pipe Flanges, Forged Fittings, Valves and Parts. The specification for the ASTM A182, covers the mentioned components as they have been designed keeping in mind their use in High-Temperature applications. Apart from having Stainless Steel 304 Flanges produced from regular 304 grade metal, its derivatives i.e. 304H & 304L too can be used in their manufacture. The difference between all the three metals is that the content of carbon varies across each grave.

ASTM A182 F304 Material Specification

Stainless Steel f304 Forged and Plate Flange

Stainless Steel f304 Flange
ASTM A182 Stainless Steel f304 Slip-On Flanges	ASTM A182 Stainless Steel f304 Threaded Flanges
ASTM A182 Stainless Steel f304 Weld Neck Flanges	ASTM A182 Stainless Steel f304 Socket Weld Flanges
ASTM A182 Stainless Steel f304 Blind Flange	ASTM A182 Stainless Steel f304 Reducing Flange
ASTM A182 Stainless Steel f304 Lap Joint Flanges	ASTM A182 Stainless Steel f304 Plate Flanges
ASTM A182 Stainless Steel f304 Orifice Flange	ASTM A182 Stainless Steel f304 Forged Flange
ASTM A182 Stainless Steel f304 Ring Type Joint Flanges	ASTM A182 Stainless Steel f304 Square Flanges

304 Stainless Steel Flanges Pressure Ratings

Sa 182 Gr F304l Flange Standards / Types and ASTM A182 F304 Stainless Steel Flanges Pressure Class :

ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Stainless Steel 304 Flanges Weight Chart

15mm (1/2") ASTM A182 F304 Stainless Steel Flanges Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Manufacturing 304l Stainless Steel Flanges in India, Skyland Metal holds a wide range of ASTM A182 F304 Stainless Steel Flanges in stock for immediate despatch throughout India & globally.

ASTM A182 F304 Stainless Steel Flanges Types

A182 F304 Welding Flanges Rotatable

ASTM A182 F304 Flanges with Tube

ASTM A182 Gr F304 CF (ConFlat) Flanges

ASTM A182 Grade F304 Flanges Reducing Flanges

Stainless Steel ASTM A182 F304 Flanges Lap Joint Flanges

ASME SA182 F304 Flanges Bolted Weld-On

SA182 F304 Girth Flanges

ASTM A182 304 SS Spectacle Blind Flanges

Stainless Steel LWN FLANGE ASTM A182 F304 ASME B16.5 SIZE: 1/2"-24"- 2500#, SCH.80 RF FF RTJ 0
