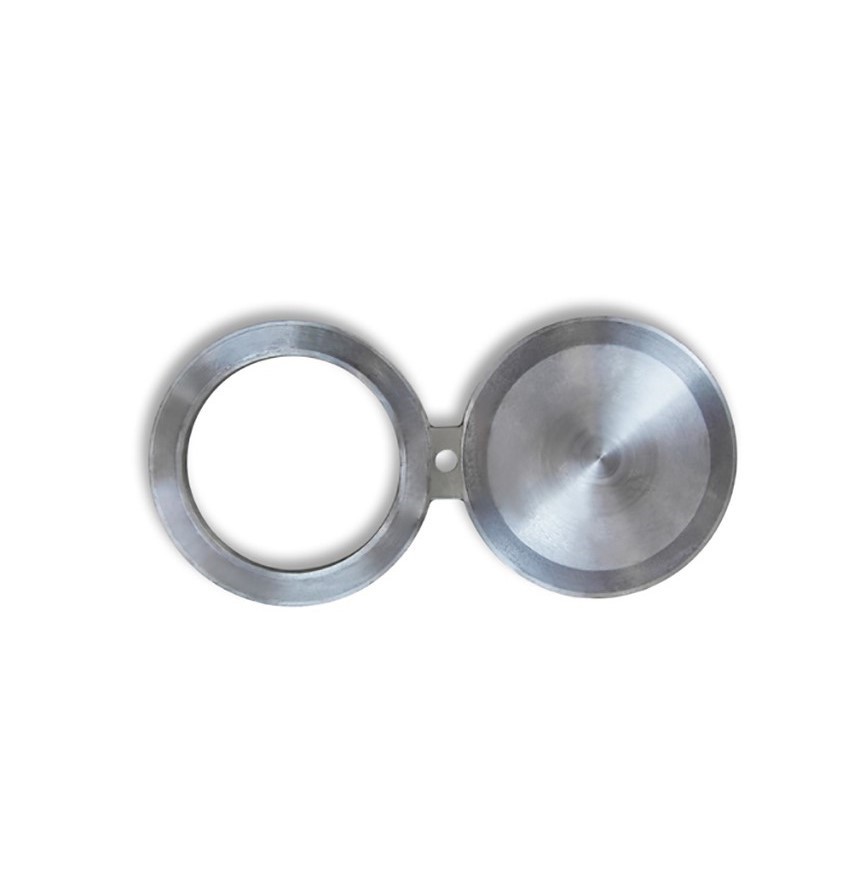

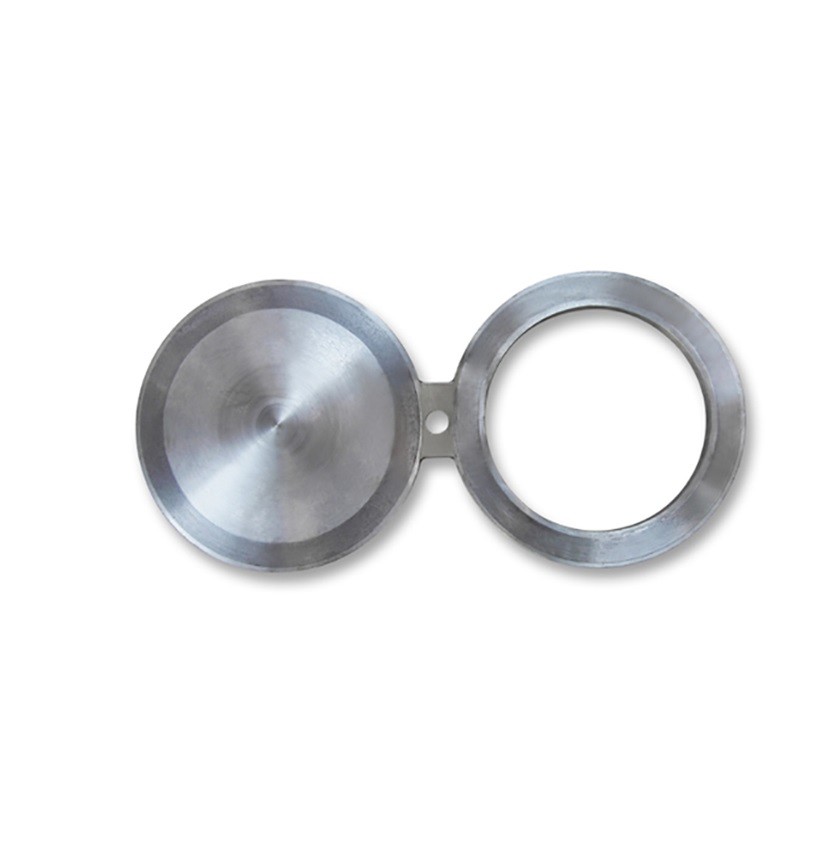

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600

  • 8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600
  • 8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number TOBO001
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Payment Terms L/C, T/T
Supply Ability 100000PC/MONTH
Product Details
Product Name Flange Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Delivery Time 15 Working Days Product Type 8 Blind Spectacle Flange
Material Alloy Steel Price Negotiation
Thickness Sch10-80 Standard Or Nonstandard Standard
Highlight

Blind Spectacle Flange ASTM A694

,

1inch Class600 Pipe Fittings

,

Forged Steel Flanges with Warranty
Leave a Message
Product Description

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600

1.Quick Details
Place of Origin:
Shanghai, China
Brand Name:
TOBO
Model Number:
Nipoflange
Standard:
ANSI, DIN, JIS, Jpi, ASME, ASTM B564
Product name:
Spectacle Blind Flange
Material:
UNS NO6600 / Alloy 600
Technics:
Froged
Application:
Connection PIPE
Thickness:
SCH80S
Pressure:
150LBS
Surface:
RTJ
Connection:
FITTINGS
Usage:
WATER PROJECT

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X6 cm
Single gross weight:
1.500 kg
Package Type:
PLY-wooden case or pallet or as for clients' requirements
Lead Time:


Quantity(pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 10 15 20 To be negotiated
2.Specification
Product Name Spectacle Blind Flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, 7S-15, 7S-43, 605, EN1092
Type Spectacle Blind Flange Special Flange: According to the drawing Picture
Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675, Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276


Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L,



Stainless steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H


Duplex Steel: ASTM A182 F51, F53, F55


Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8



Copper Alloy:ASTM AB564 , NO6600 / Alloy 600, NO6625 / Alloy 625, Alloy 690, Alloy 718



Inconel Alloy Steel:ASTMAB564, NO8800/Alloy800, NO8810/Alloy800H, NO8811/Alloy 800HT



Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimension (150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirement
Brand TOBO
Certificates 3.1. (Any third party certificate should be clarified before order)

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600 0





3.Detail Display

1. Spectacle Flanges, Single Blinds, and ring spacer are crucial pipeline accessories when a section of the pipeline may need to be isolated from the rest. Single Blinds or Blanks are positive shut-off devices that prevent flow through a pipeline.



2.The products a according to the requirements of 590 can be used to the RF Flange as following standard: ANSI B16.5, SH3406, IS07005-1, GB9112~9124, HG20615.



3.The corrosive capacity is involved in the thickness of paddle blind, spacer and Figure 8 & the corrosive capacity is 1.3mm for c.s. Low-alloy & low-temperature steel and O for s.s.


4.Adopted to flat spacer. Adjust the thickness if adopt other spacer.

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600 1

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600 2

4.customize flange process

8 Blind Spectacle Flange ASTM A694 F56 Pipe Fittings 1inch Class600 3


5.FAQ

Q1. Are you trade company or factory?
A: We are trading company in shanghai, but we have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Welcome to visit us.



Q2: Do you provide free samples? If not, how do you charge for it?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q3. What can you buy from us?
A. The main forgings are the design forging processing of mechanical parts for automobiles, railroad forgings, agricultural machinery forgings,hole forging of valve body, connecting nut of oil pipeline, rigging ect.



Q4. Why is forged metal stronger than cast or machined metal?
This stems from the grain flow caused through forging. As the metal is pounded the grains deform to follow ​the shape of the part, thus the grains are unbroken throughout the part. Some modern parts take advantage of his for a high strength-to-weight ratio



Q5. How long is your delivery time?
A. Lead time is about 10-25 days. Orders with numerous kinds of parts will take more days.



Customers at home and abroad are welcome to write and talk about business.
