3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow

  • 3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow
  • 3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow
Place of Origin CHINA/JAPAN/GERMANY
Brand Name TOBO
Certification ISO/PED/TUV/TISCO/VALIN/METAL
Model Number Butt Weld Fittings
Minimum Order Quantity 10PCS
Price negotiable
Packaging Details PLY-wooden case or pallet or as for clients' requirements
Delivery Time 5-10WORKDAYS
Payment Terms T/T, Western Union, , L/C
Supply Ability 30000PCS/MONTH
Product Details
Material Stainless Steel Shape Reducing
Connection Butt Welded Technics Casting
Head Code Round Size Customized Size
Application Pipe Lines Connect Standard DIN, ISO, 3A, SMS, BS, IDF, DS, BPE
Packing Standard Seaworthy Packing Color White,Can Be Customed
Payment Trade Assurance TT Paypal
Highlight

Exhaust Titanium Bends

,

180 Degree Titanium Elbow

,

45 Degree Titanium Bends
Leave a Message
Product Description

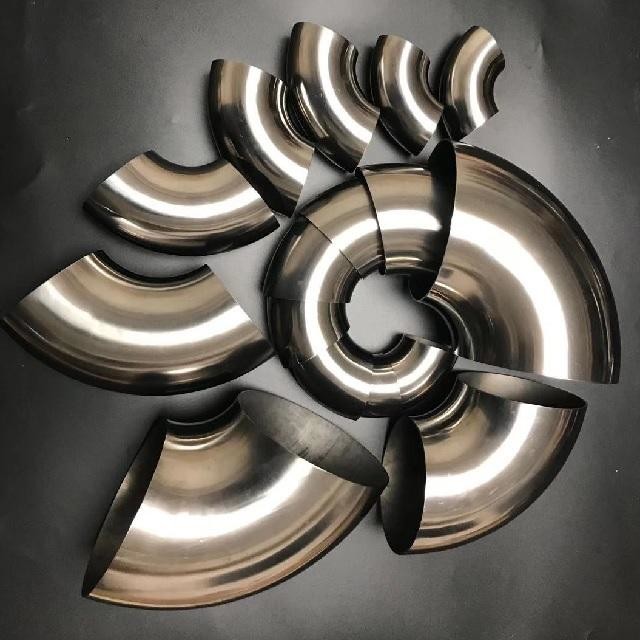

3.5" exhaust Titanium bends 45 Degree 90 Degree 180 Degree Titanium Elbow




















Customized Sizes 180 Degree Short Tube Sanitary Stainless Steel ElbowCustomized Sizes 180 Degree Short Tube Sanitary Stainless Steel Elbow

Product Description
Product Titanium elbow
Application Motorcycle exhaust muffler
Material Gr2 pure titanium
Standard ANSI B16.5,JIS B2220,DIN2627-2628,ASME,GB/T
OD 38/45/51/60/63/70/76/80/89/102mm
Inch Size 1.5"/1.75"/2.0"/2.5"/3.0"/3.5"/4.0"/4.5"/5.0"/6.0"
Wall Thickness 1.0/1.2/1.5mm
Certificate TUV, ISO9001
Materials Titanium : Grade1,Grade2,Grade5,Grade7,Grade9,Grade12
Quality control PMI,100% ULTRASONIC TEST etc





3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow

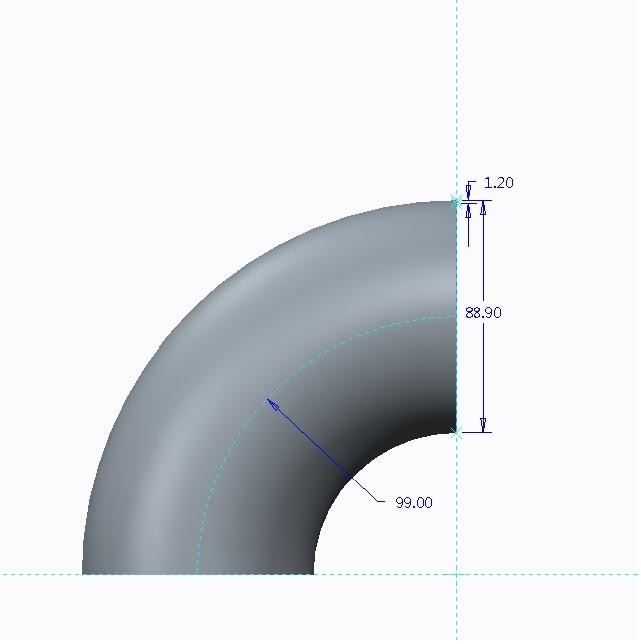

Item DIA(C ) Thickness(B) Radius of Bending(A) Angle Material
mm inch mm inch mm inch Degree
1 38 1 1 0.0394 38 1.5 45/90 GR2 Titanium
2 45 1.75 1 0.0394 48 1.875 45/90
3 48 1.875 1 0.0394 48 1.875 45/90
4 50.8 2 1 0.0394 60 2.35 45/90
5 63.5 2.5 1 0.0394 63.5 2.5 45/90
6 63.5 2.5 1 0.0394 76.2 3 45/90
7 70 2.755 1 0.0394 70 2.755 45/90
8 76.2 3 1 0.0394 80 3.15 45/90
9 76.2 3 1 0.0394 114 4.5 45/90
10 89 3.5 1.2 0.0472 99 3.9 45/90
11 89 3.5 1.2 0.0472 114 4.5 45/90
12 102 4 1.2 0.0472 85 3.35 45/90
13 102 4 1.2 0.0472 127 5 45/90
14 102 4 1.2 0.0472 133 5.235 45/90
15 114 4.5 1.5 0.0591 114 4.5 45/90
16 114 4.5 1.5 0.0591 152 6 45/90
17 127 5 1.5 0.0591 100 3.935 45/90
18 127 5 1.5 0.0591 127 5 45/90
19 152.4 6 1.5 0.0591 152.4 6 45/90
20

CUSTOMIZATION




3.5" exhaust Titanium bends 45 Degree 90 Degree 180 Degree Titanium Elbow3.5" Exhaust Titanium Bends 45 Degree 90 Degree 180 Degree Titanium Elbow

3.5" exhaust Titanium bends 45 Degree 90 Degree 180 Degree Titanium Elbow
