304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow
Product Details
| Material | Stainless Steel | Shape | ROUND |
|---|---|---|---|
| Connection | Clamp | Technics | Stamping |
| Head Code | Square | Type | Coupling |
| Surface Treatment | Mirror Polished | Size | 6mm-377mm |
| Standard | DIN | Product Name | Schedule 40 Stainless Steel 90 Degree Elbow SCH160 R=1.5D |
| Highlight | 304 stainless steel sanitary elbow,316L stainless steel welded elbow,90 degree stainless steel bend |
||
Product Description
304/316L Stainless Steel Sanitary Bend 90 Degree Welded Elbow
Overview

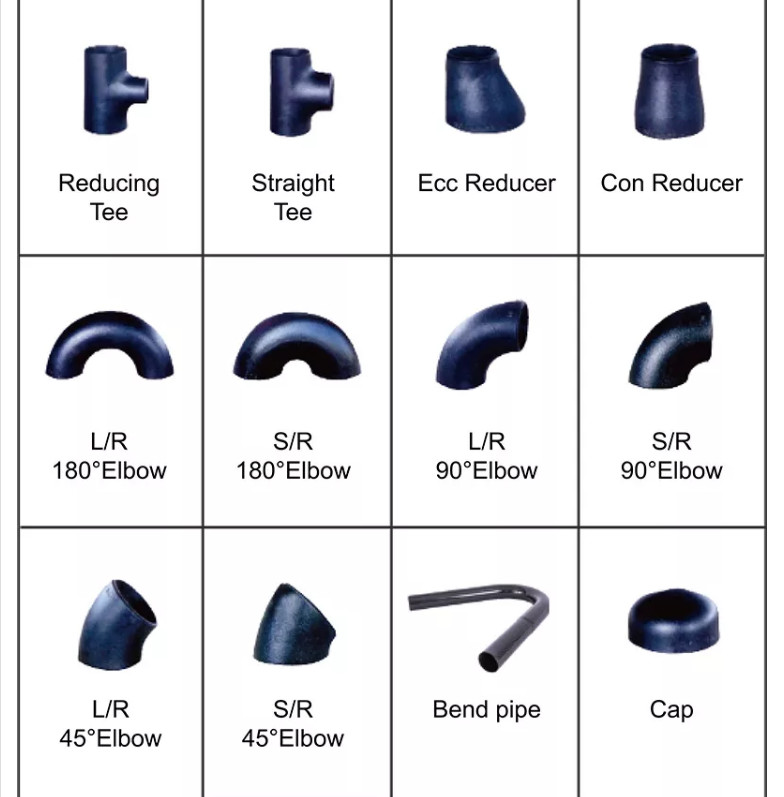

| Type | Long radius elbow,Short radius elbow, 90 degree elbow, 45 degree elbow, reducing elbow,equal tee, reducer tee,concentric reducer,eccentric reducer,3D bend,5D bend,cap etc. |
| Standard |
ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
| Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
| Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
| Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
|
Material
Carbon steel
Stainless steel
Alloy steel
Duplex steel
Nickel alloy steel |

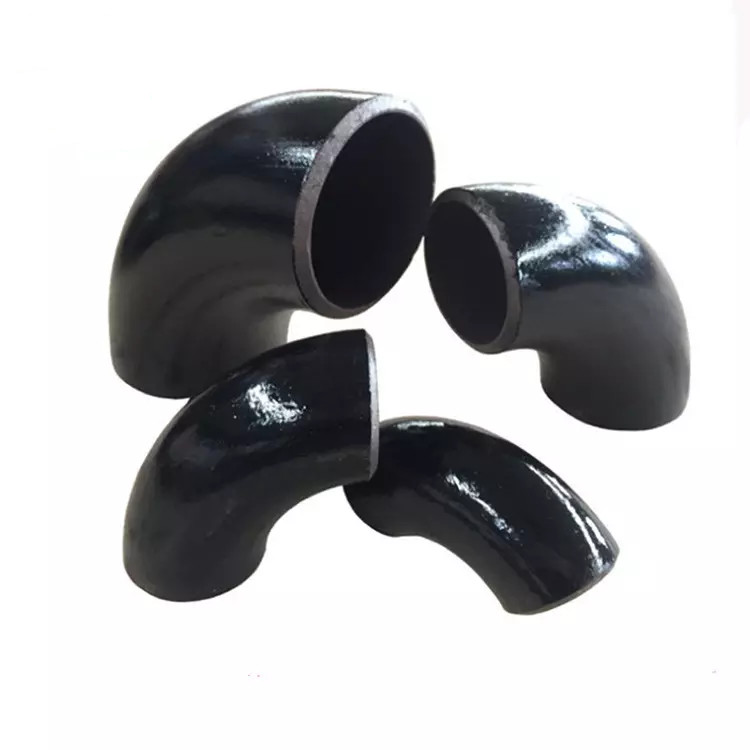

Carbon steel elbow, stainless steel elbow, alloy steel elbow |
|
ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8/I ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
|
ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
|
ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
|
| ASTM A182 F51/ 2205/S31803,F53/ 2507/S32750,F60/UNS S32205, | |
| Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,Alloy 600/Inconel 600/UNS 6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/NS336,Alloy 800/Incoloy 800/UNS S8800, | |

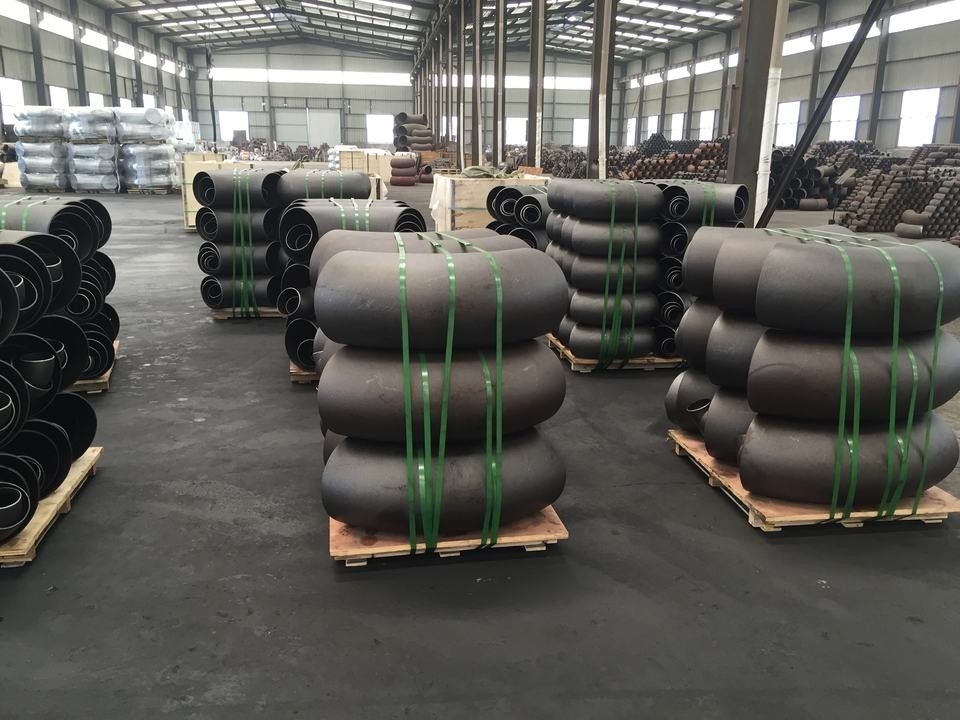

| Packing |
1)seaworthy wooden box for fittings with size from 1/2"~14" 2)Seaworthy wooden pallet for fittings with size above 14" 3)According to the packing requirement of clients |
| Delivery time | with in 10-30 work days after received the deposit or L/C |
| Shipment | FOB Tianjin, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Rich could produce different ranges of stainless steel, alloy steel, carbon steel flanges, elbows, tees, reducers, the socket series of pipeline components with high and medium pressure, and various specifications, material steel pipe.
| Forming type | Forged or as required |
| Main product | Forged steel pipe flange |
| Standard | DIN ANSI JIS GOST UNI EN1092-1 |
| Surface Treatment | Anti-rust Oil Transparent/Yellow/Black Anti-rust PaintZinc |
