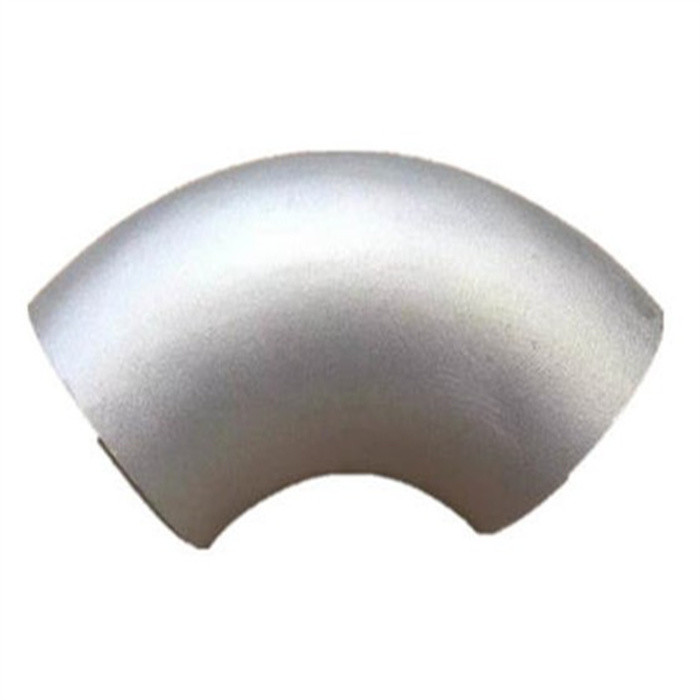

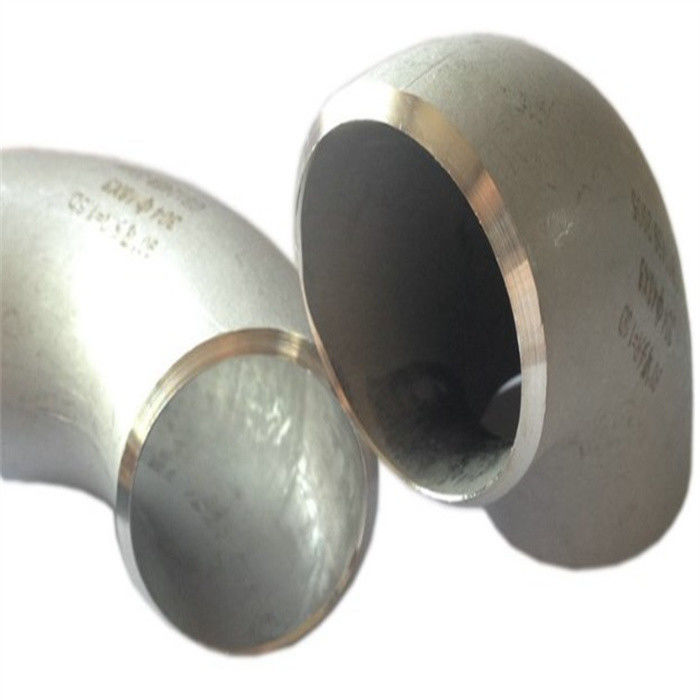

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee

  • ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee
  • ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee
  • ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee
  • ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee
Place of Origin CHINA
Brand Name TOBO
Certification Customized logo
Model Number available on request
Minimum Order Quantity 1
Price USD
Packaging Details Wooden box
Delivery Time 5-8 WORK DAYS
Payment Terms L/C, T/T, Western Union
Supply Ability 1
Product Details
Application Pipeline System Color Silver
Connection Welded Material Stainless Steel
Package Standard Export Package Pressure High Pressure
Processing Technology Forging Service OEM/ODM
Shape Elbow Size Customized
Standard ANSI, DIN, JIS, GB Surface Treatment Polishing
Thickness Customized
Highlight

ASTM A403 WP321 stainless steel elbow

,

ASTM A403 WP316 equal tee

,

321H stainless steel 45 elbow
Leave a Message
Product Description

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee





Overview

Essential details
Place of Origin:
Jiangsu, China
Brand Name:
Saky Steel
Model Number:
1/8" NB TO 48" NB
Technics:
Forged
Connection:
Welding
Shape:
Reducing
Head Code:
Elbow
Product name:
ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee
Specifications:
ASTM A403 / ASME SA403
Standard:
ASME/ANSI B16.9 ASME B16.28
Size:
1/8" NB TO 48" NB(Seamless & 100% X-ray Welded, Fabricated
Type:
Seamless /Welded /Fabircated
Bending Radius:
R=1D,2D,3D,5D,6D,8D,10D or Custom
Thickness:
Sch 5s, Sch 10s, Sch 40s, Sch 80s etc
Product's Angle:
5°-180° Elbows etc
Surface:
mirror,,hairline,sand blast,Brush,Bright
Application:
Petroleum, gas, chemical,metallurgy, construction
Supply Ability
Supply Ability
500 Ton/Tons per Month ASTM B16.9 Butt Welded Pipe Fittings 90 deg elbow seamless welde
Packaging & delivery
Packaging Details
shrink wrapped-carton-pallet or in seaworthy wooden cased
Port
Shanghai Ningbo

Product Description



Product name Standard Specification For Stainless Steel ASTM A403 WP304 Pipe Fittings
Specifications ASTM A403 / ASME SA403
Sizes Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)
Thickness Sch 5s, Sch 10s, SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS
Standard
ASTM A234 ASME B16.9 ASME 16.28
DIN 2605 DIN 2615 DIN 2616 DIN 2617
JIS B2311 JIS B2312 JIS B2313 BS GB
Surface
mirror,,hairline,sand blast,Brush,Bright, Pickled
Type Seamless / Welded / Fabricated
Form : Elbow, 90 Deg Elbow, Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow.
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Package Seaworthy package . Wooden or plywood case or pallet , or as customers' request



Product Range And Theoretical Weights(Kg):



DN Schedule 10s Schedule 40s Schedule 80s
90°Elbow 45°Elbow EqualTee 90°Elbow 45°Elbow EqualTee 90°Elbow 45°Elbow EqualTee
8 0.02 0.01 0.03 0.03 0.02 0.06 0.04 0.03 0.07
10 0.03 0.02 0.05 0.03 0.02 0.03 0.06 0.04 0.09
15 0.06 0.03 0.09 0.08 0.04 0.10 0.10 0.05 0.14
20 0.07 0.03 0.13 0.08 0.04 0.17 0.11 0.05 0.20
25 0.14 0.08 0.28 0.15 0.11 0.29 0.22 0.14 0.38
32 0.23 0.11 0.49 0.26 0.17 0.59 0.40 0.23 0.68
40 0.30 0.17 0.68 0.40 0.23 0.86 0.51 0.29 1.02
50 0.50 0.25 0.85 0.70 0.40 1.28 0.91 0.59 1.59
65 0.85 0.48 1.41 1.40 0.77 2.19 1.81 0.99 3.13
80 1.25 0.63 1.77 2.20 1.08 3.31 2.97 1.50 4.45
90 1.70 0.75 2.67 2.83 1.42 4.08 4.00 2.00 5.44
100 2.10 1.08 3.46 4.47 2.09 5.27 6.18 2.81 7.71
150 5.45 2.72 8.07 10.89 5.44 10.99 16.32 8.16 13.16
200 10.20 5.33 15.65 21.54 10.77 20.91 33.11 16.56 28.12
250 18.15 9.75 26.46 38.56 19.27 35.38 51.71 25.86 49.90
300 25.80 13.62 39.46 59.42 29.71 62.14 79.38 39.69 83.91





Product Range And Theoretical Weights(Kg):



DN Schedule 10s Schedule 40s Schedule 80s
ConReducer EccReducer ReducingTee ConReducer EccReducer ReducingTee ConReducer EccReducer ReducingTee
40×25 0.19 0.19 0.60 0.26 0.26 0.76 0.34 0.34 0.90
50×25 0.28 0.28 0.73 0.40 0.40 1.10 0.54 0.54 1.37
50×40 0.31 0.31 0.76 0.45 0.45 1.15 0.59 0.59 1.43
80×50 0.55 0.55 1.56 1.00 1.00 2.91 1.79 1.79 3.91
100×50 0.78 0.78 2.94 1.50 1.50 4.48 1.95 1.95 6.55
100×80 0.87 0.87 3.04 1.74 1.74 4.64 2.33 2.33 6.79
150×80 1.82 1.82 6.86 3.95 3.95 9.68 5.51 5.51 11.57
150×100 1.96 1.96 7.10 4.07 4.07 11.94 5.96 5.96 11.97
200×100 3.01 3.01 13.46 6.55 6.55 17.98 9.23 9.23 24.18
200×150 3.19 3.19 14.08 6.74 6.74 18.82 10.12 10.12 25.31

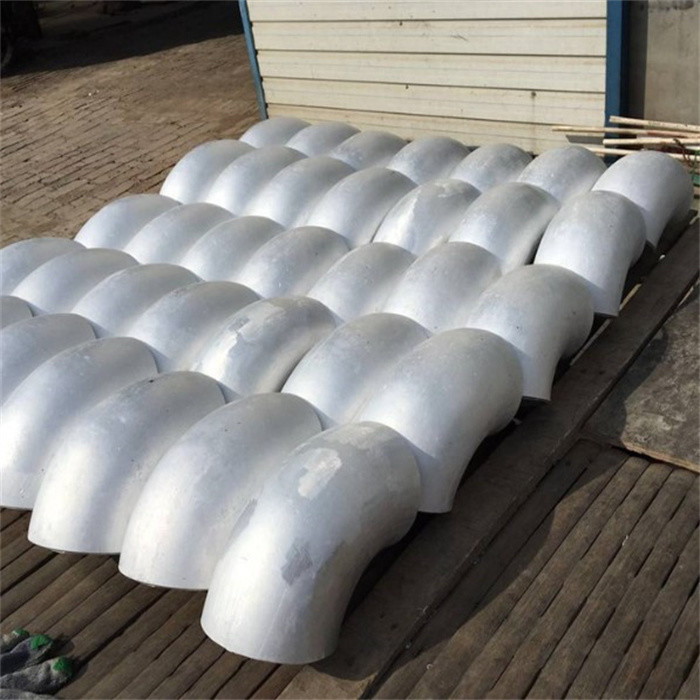

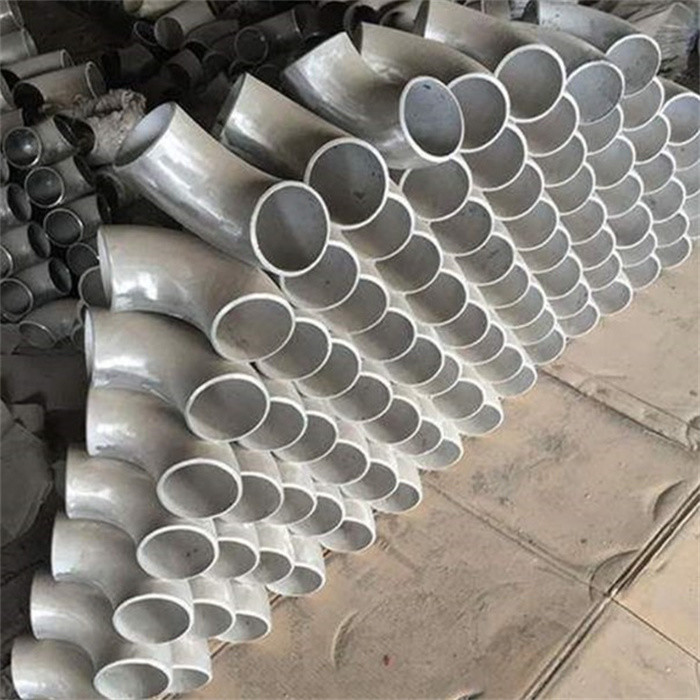

Packaging & Shipping

Seaworthy package. Wooden or plywood case or pallet, or as customers' request

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee 0

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee 1

ASTM A403 WP321 / 321H 45 Elbow ASTM A403 WP316 Equal Tee 2
