| Place of Origin: | SHANGHAI |
|---|---|
| Brand Name: | TOBO |
| Certification: | ISO |
| Model Number: | Steel Flanges, Nickel Alloy ASTM B564 / ASTM B462 / ASTM B865 / N08800 / NO8825 |
| Minimum Order Quantity: | 1PC |
| Price: | USD1-10/PC |
| Packaging Details: | WOOD PACKAGES |
| Delivery Time: | 10--30DAYS |
| Supply Ability: | 10000000/PC/MONTH |
| Highlight: | forgings flanges and fittings,forged fittings and flanges |
||
|---|---|---|---|

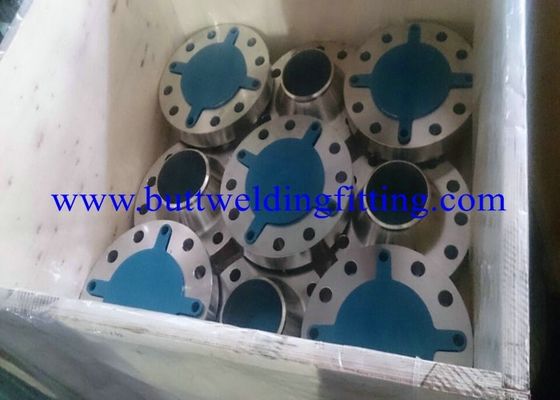

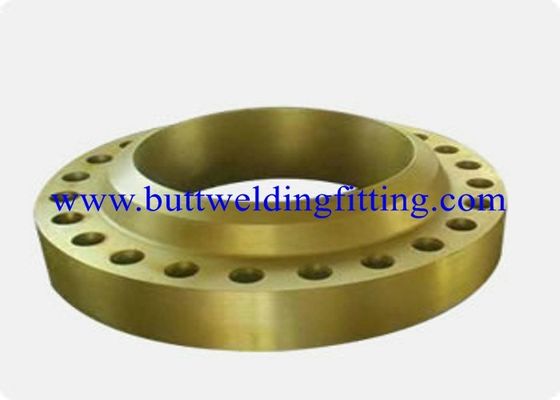

Steel Flanges, Nickel Alloy ASTM B564 / ASTM B462 / ASTM B865 / N08800 / NO8825
Detailed Product Description
Type:
SW,WN,SO,BL,LJ,TH
Manufacture Specification:
ISO7005-I,ASME/ASNI B16.5/16.36/16.47A/16.47B,MSS SP44,JIS B2220,DIN 2527/2636/2637/2638/2566/2576/2632/2633/2635/2642/2653/2655/2656,BS 1560-3.1,BS4504-3.1,API 7S-15,
API 7S-43,API 605,NFE 29-203,EN1092
Materials:
Stainless Steel: ASTM A182-F304,F304L,F304H,F316,F316L,F321,F321H,F347H,F317
Super Stainless Steel: ASTM 904L,B625-N08904,317,317L,254SMO
Duplex&Super Duplex Steel: ASTM A182-F51(S31803)
Low Temp Steel: ASTM A350-LF2,LF3
Carbon Steel: ASTM A105
Pressure Class & OD:
Class150 DN15 ---- DN1500
Class300 DN15 ---- DN1500
Class600 DN15 ---- DN1500
Class900 DN15 ---- DN1000
Class1500 DN15 ---- DN600
Class2500 DN15 ---- DN300
We offer high quality DIN flanges that conform to the standard specifications of DIN
Designs of flanges:
A wide variety of flange designs are available. They are available in various shapes and sizes. Some of the popular designs are as follows:
Custom shapes and sizes are also manufactured by numerous manufacturers. Various pipe flanges include machining details such as gasket surfaces, facing details, non-standard drilling, bevel and radius edges, o-ring grooves and raised or recessed faces. Some typical designs on flanges faces are shown below.
| Raised Fase | Chamfer |
|
|
| Counter Bore | O-Ring Groove |
|
|
| Radius | Gasket Surface |
Applications of pipe flanges:
Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:
| DIN 2502 | DIN 2503 | DIN 2527 |
| DIN 2565 / 2566 | DIN 2573 / 2576 | DIN 2627 / 2628 |
| DIN 2629 / 2630 | DIN 2631 | DIN 2632 |
| DIN 2633 | DIN 2634 | DIN 2635 / 2636 |
| DIN 2637 / 2638 | DIN 2641 | DIN 2642 |
| DIN 2655 / 2656 | DIN 86029 / 86030 |
