| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Astm A234 Wp12 , A234 Wp11 , A234 Wp22 , A234 Wp5 , A234 Wp9 , |
| Minimum Order Quantity: | 2PCS |
| Price: | USD 0.1-20 |
| Packaging Details: | In wooded cases or pallets, or as for clients' requirements. |
| Supply Ability: | 89999000PCS Per month |
| Products: | Elbow, Bend, Equal/reduce Tee, Concentric/eccentric Reducer, Cap, | Type: | LR 30,45,60,90,180 Degree ; SR 30,45,60,90,180 Degree. |
|---|---|---|---|
| Thickness: | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS. | Standard: | ASME B16.9, ASTM A234, ASTM A420, ANSI B16.9/B16.25/B16.28; |
| Highlight: | butt weld tube fittings,industrial pipe fittings |
||

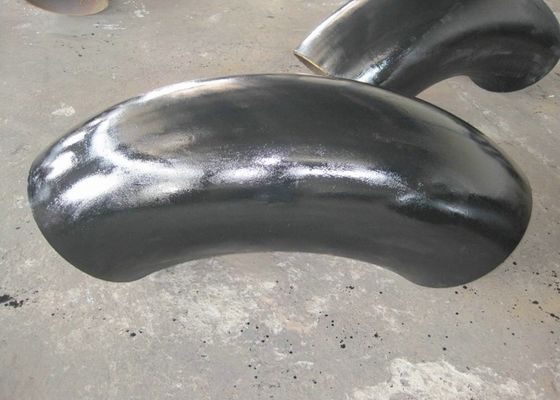

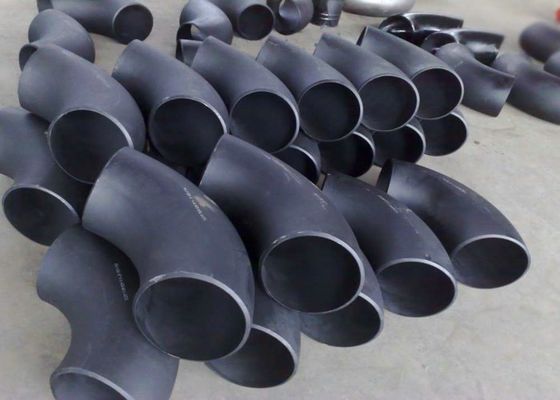

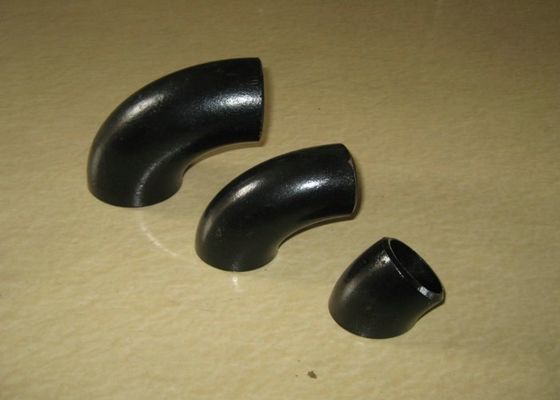

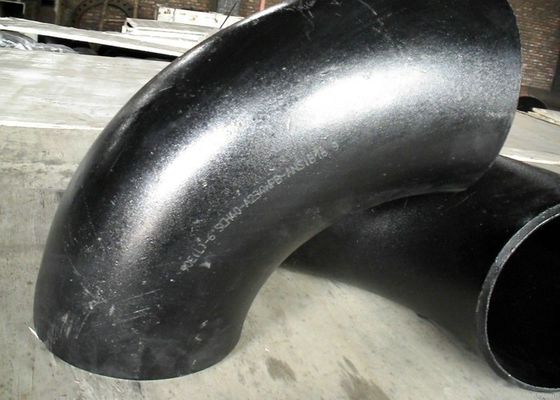

Astm A234 Wp12 , A234 Wp11 But Weld Fittings Tee Reducer Lr Elbow A234 Wp22 , A234 Wp5 , A234 Wp9 , Asme B16.9

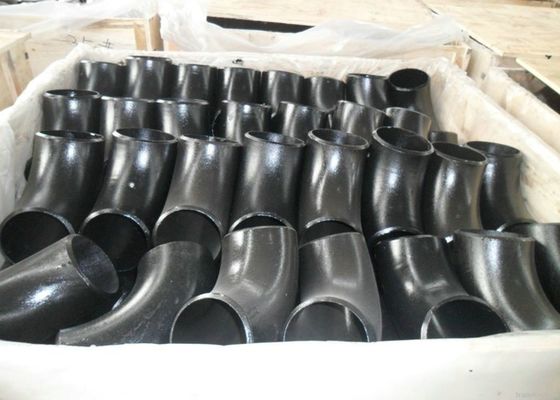

Packaging Details:
Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery Detail:
10-100 days depending on quantity

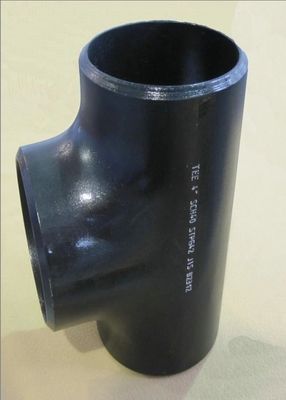

ASTM A234 WP5 butt welded tee
Tee Type
Equal tee, reducing tee,lateral tee, BW/butt weld tee, TH/threaded tee, SW/socket weld tee, seamless tee
Standard
ASTM B16.9, ASTM B16.11, ASTM B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316;MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615SY/T 0510, SH 3408, SH3410
Size
1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding);16''~72''(Welded)
Wall thickness
Sch5~Sch160XXS
Manufacturing process
Push, Press, Forge, Cast, etc.
Material
Carbon steel, Stainless steel ,Alloy steel,Duplex steel,Nickel alloy steel
Carbon steel tee, stainless steel tee, alloy steel tee
ASTM A234 WPB,ASTM A420 WPL6, WPL3;ASTM A105 WPB; ASTM A106;ASTM A350 LF2,
DIN St37, St45.8, St52.4,St.35.8,St.35.8/I ASTM A333 GR.6,
ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,API 5L GRB, X60, X65, X42,X52,ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L
A403 WP321ASTM A182 F 304, 304L,316, 316L,904L
ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9A420 WPL8, A420 WPL9
ASTM A335 P5, P9, P11, P12, P22, P91ASTM A213 ASTM A182 F5,F11,F22,F91
ASTM A182 F51/ 2205/S31803,F53/ 2507/S32750,F60/UNS S32205,
Alloy 200/nickel 200/UNS S2200,Alloy 400/monel 400/UNS 4400,
Alloy 600/Inconel 600/UNS,
6600,Alloy 201/nickel 201/UNS S2201,Alloy 625/Inconel 625/UNS 6625/N
S336,Alloy 800/Incoloy 800/UNS S8800.
ANSI B 16.9
|
Tube size |
Outer Diameter(OD) |
Wall thickness (T) |
90 o L / R Elbow center to tail A |
45 o L / R center to bend the tail end B |
90 o S / R to the end of A Center Elbow |
Three links to the Center for the tail end C.M |
The length of the cap |
|||
|
Sch.5S |
Sch.10S |
Sch.40S |
Sch.80S |
|||||||
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.50 |
0.625 |
- |
1.00 |
1.00 |
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.12 |
0.438 |
- |
1.13 |
1.00 |
|
1 |
1.315 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
0.875 |
1.00 |
1.50 |
1.50 |
|
1-1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
1.00 |
1.25 |
1.88 |
1.50 |
|
1-1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
1.12 |
1.50 |
2.25 |
1.50 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
3.00 |
1.38 |
2.00 |
2.50 |
1.50 |
|
2-1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.75 |
1.75 |
2.50 |
3.00 |
2.00 |
|
3 |
3.500 |
0.083 |
0.120 |
0.216 |
0.300 |
4.50 |
2.00 |
3.00 |
3.38 |
2.50 |
|
4 |
4.500 |
0.083 |
0.120 |
0.237 |
0.337 |
6.00 |
2.50 |
4.00 |
4.13 |
3.00 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
7.50 |
3.12 |
5.00 |
4.88 |
3.50 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
9.00 |
3.75 |
6.00 |
5.63 |
4.00 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
12.00 |
5.00 |
8.00 |
7.00 |
5.00 |
|
10 |
10.750 |
0.134 |
0.165 |
0.375 |
0.500 |
15.00 |
6.25 |
10.00 |
8.50 |
6.00 |
|
12 |
12.750 |
0.156 |
0.180 |
0.375 |
0.500 |
18.00 |
7.50 |
12.00 |
10.00 |
7.00 |
|
14 |
14.000 |
0.156 |
0.250 |
0.375 |
0.500 |
21.00 |
8.75 |
14.00 |
11.00 |
7.50 |
|
16 |
16.000 |
0.165 |
0.250 |
0.375 |
0.500 |
24.00 |
10.00 |
16.00 |
12.00 |
8.00 |
|
18 |
18.000 |
0.165 |
0.250 |
0.375 |
0.500 |
27.00 |
11.25 |
18.00 |
13.50 |
9.00 |
|
20 |
20.000 |
0.188 |
0.250 |
0.375 |
0.500 |
30.00 |
12.50 |
20.00 |
15.00 |
10.00 |
|
24 |
24.000 |
0.218 |
0.250 |
0.375 |
0.500 |
36.00 |
13.50 |
24.00 |
17.00 |
12.00 |
